Product Model

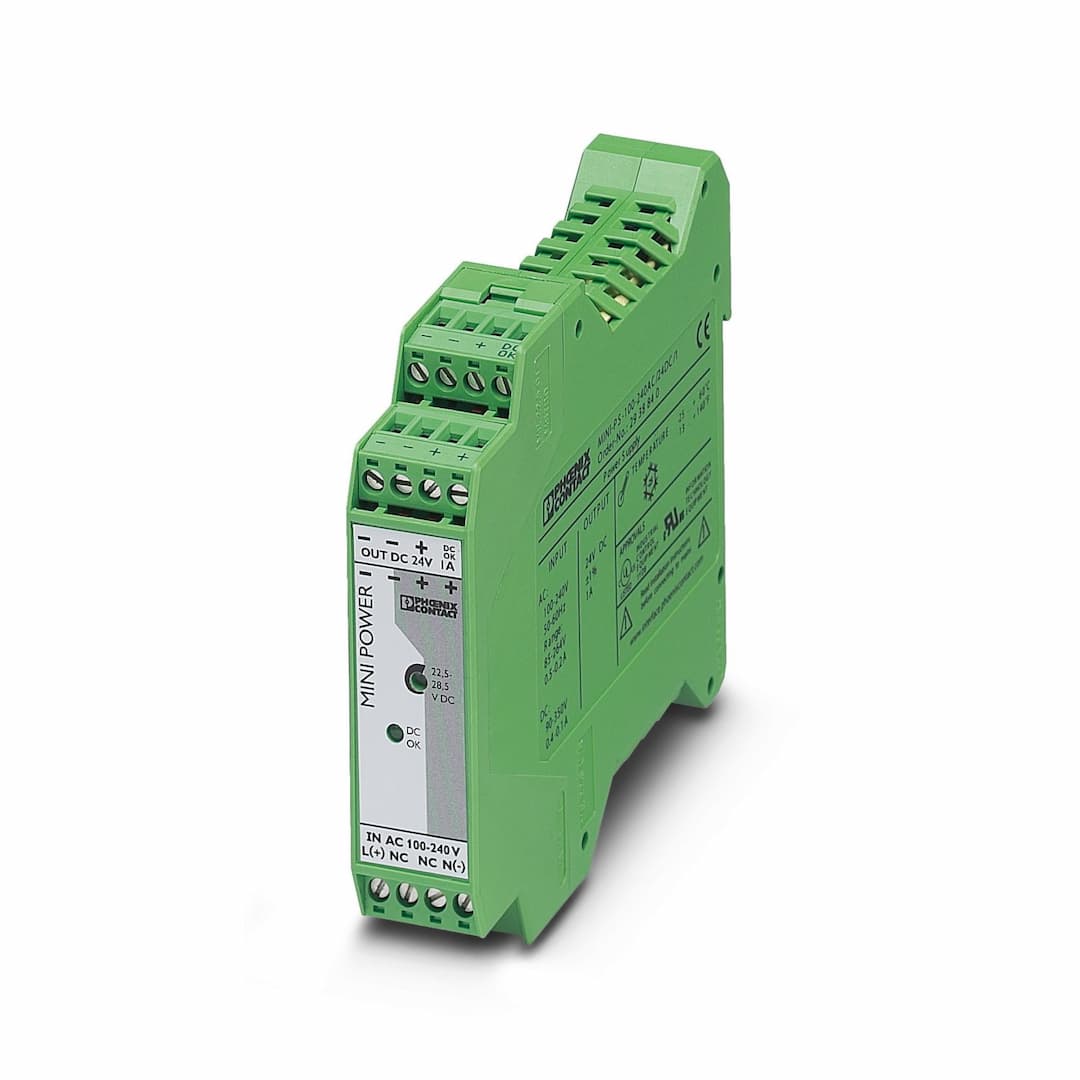

MINI-PS-100-240AC/24DC/1
Selling Points
- 1Operates from 100VAC to 240VAC for global compatibility.
- 2Provides a stable 24VDC output with adjustable settings.
- 3Achieves a typical efficiency of 88.8% (120VAC) and 89.2% (230VAC).
- 4Indicates critical operating states before errors occur, ensuring system reliability.
- 5Features a metal housing with IP20 protection and screw input/output connections, making it ideal for DIN rail mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal input voltage range | 100 V AC ... 240 V AC | Input voltage range | 85 V AC ... 264 V AC
90 V DC ... 350 V DC |
Input voltage range AC | 85 V AC ... 264 V AC | Input voltage range DC | 90 V DC ... 350 V DC |
Voltage type of supply voltage | AC/DC | Inrush current | < 15 A (typical) |
AC frequency range | 45 Hz ... 65 Hz | Frequency range DC | 0 Hz |
Mains buffering time | > 20 ms (120 V AC)
> 110 ms (230 V AC) | Current consumption | 0.5 A (85 V AC)
0.2 A (264 V AC)
approx. 0.4 A (90 V DC)
approx. 0.1 A (350 V DC) |
Nominal power consumption | 45 VA | Typical response time | < 0.2 s |
Input fuse | 1.25 A (slow-blow, internal) | Efficiency | > 80 % (for 230 V AC and nominal values) |
Output characteristic | U/I | Nominal output voltage | 24 V DC ±1 % |
Setting range of the output voltage (U | 22.5 V DC ... 28.5 V DC (> 24 V DC, constant capacity restricted) | Nominal output current (I | 1 A (up to 60 °C) |
POWER BOOST (I | 1.3 A | Residual ripple | < 100 mV |
Output power | 24 W | Peak switching voltages nominal load | < 100 mV |
Maximum no-load power dissipation | < 1.4 W | Power loss nominal load max. | < 4.5 W |
Connection in parallel | yes, for assembling redundant systems and increasing efficiency | Connection in series | yes |
Output description | U | Output voltage | + 24 V (Signal) |
Continuous load current | max. 20 mA | Connection method | Pluggable screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 14 |
Stripping length | 7 mm | Screw thread | M3 |
Connection method | Pluggable screw connection | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 24 |
Conductor cross section AWG max. | 14 | Stripping length | 7 mm |
Operating voltage display | Green LED | Status display | Green LED (U |
Number of phases | 1.00 | Insulation voltage input/output | 3 kV (routine test)
3 kV (type test) |
Product type | Power supply | Product family | MINI POWER |
MTBF (IEC 61709, SN 29500) | > 500000 h | Protection class | II (in closed control cabinet) |
Overvoltage category | III | Width | 22.5 mm |
Height | 99 mm | Depth | 114.5 mm |
Installation distance right/left | 0 mm / 0 mm | Installation distance top/bottom | 50 mm / 50 mm |
Assembly note | alignable: vertical with spacing = 5 cm, horizontal with zero spacing | Mounting position | On horizontal DIN rail NS 35 in acc. with EN 60715 |
With protective coating | no | Housing material | Plastic |
Type of housing | Polyamide PA, color: green | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Max. permissible relative humidity (operation) | 95 % (at 25 °C, non-condensing) | Temp code | T3A ≤ 60 °C |
Standard - Electrical safety | EN 60950-1/VDE 0805 (SELV) | Standard - Safe isolation | DIN VDE 0100-410 |
UL approvals | UL/C-UL Listed ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D | SIL in accordance with IEC 61508 | 0 |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 |
EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 | Noise emission | EN 55011 (EN 55022) |
Specifications may be subject to change without notice
