Product Model

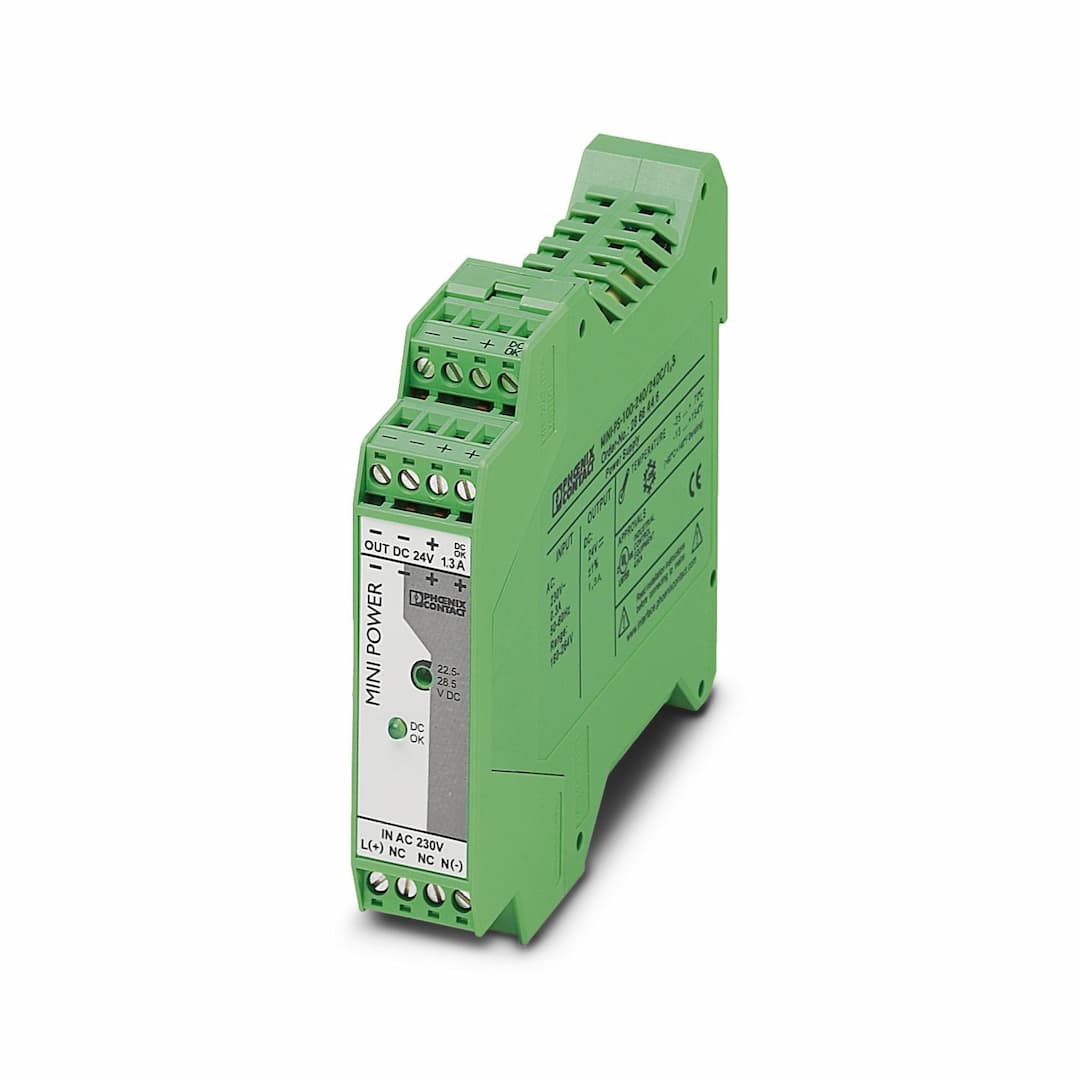

MINI-PS-100-240AC/24DC/1.3
Selling Points
- 1Operates from 100VAC to 240VAC for universal compatibility.
- 2Typical efficiency of 88.8% (120VAC) and 89.2% (230VAC).
- 3Compact dimensions of (W x H x D) 1.41 x 5.11 x 4.92 inches.
- 4Meets international standards including EN 50121-3-2 and IEC 62236-3-2.
- 5Indicates critical operating states before errors occur for enhanced reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal input voltage range | 100 V AC ... 240 V AC | Input voltage range | 85 V AC ... 264 V AC
90 V DC ... 350 V DC |
Input voltage range AC | 85 V AC ... 264 V AC | Input voltage range DC | 90 V DC ... 350 V DC |
Voltage type of supply voltage | AC/DC | Inrush current | < 15 A (< 0.6 A |
Inrush current integral (I | 0.6 A | AC frequency range | 45 Hz ... 65 Hz |
Frequency range DC | 0 Hz | Mains buffering time | > 20 ms (120 V AC)
> 110 ms (230 V AC) |
Current consumption | 0.55 A (100 V AC)
0.23 A (240 V AC) | Nominal power consumption | 62 VA |
Protective circuit | Transient surge protection; Varistor | Typical response time | < 1 s |
Input fuse | 1.25 A (slow-blow, internal) | Permissible backup fuse | B6 B10 B16 |
Recommended breaker for input protection | 6 A ... 16 A (Characteristics B, C, D, K) | Efficiency | > 85 % (for 230 V AC and nominal values) |
Output characteristic | U/I | Nominal output voltage | 24 V DC ±1 % |
Setting range of the output voltage (U | 22.5 V DC ... 28.5 V DC (> 24 V DC, constant capacity restricted) | Nominal output current (I | 1.3 A (-25 °C ... 60 °C) |
POWER BOOST (I | 1.6 A (-25 °C ... 40 °C permanent) | Derating | 60 °C ... 70 °C (2.5 %/K) |
Feedback voltage resistance | 35 V DC | Protection against overvoltage at the output (OVP) | < 35 V DC |
Starting delay with capacitive load | unrestricted | Max. capacitive load | unlimited |
Active current limitation | Approx. 5 A (for short-circuit) | Control deviation | < 1 % (change in load, static 10 % ... 90 %)
< 3 % (change in load, dynamic 10 % ... 90 %)
< 0.1 % (change in input voltage ±10 %) |
Residual ripple | < 20 mV | Output power | 31.2 W |
Peak switching voltages nominal load | < 50 mV | Maximum no-load power dissipation | 1.4 W |
Power loss nominal load max. | 4.5 W | Rise time | < 1.2 ms |
Connection in parallel | yes, for redundancy and increased capacity | Connection in series | yes |
Output description | U | Maximum switching voltage | ≤ 24 V |
Output voltage | + 24 V DC (Signal) | Continuous load current | ≤ 20 mA |
Connection method | Pluggable screw connection | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 24 |
Conductor cross section AWG max. | 12 | Stripping length | 7 mm |
Screw thread | M3 | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Connection method | Pluggable screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 12 |
Stripping length | 7 mm | Screw thread | M3 |
Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 12 |
Screw thread | M3 | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Types of signaling | LED
Active switching output |
Operating voltage display | Green LED | Status display | "DC OK" LED green |
Note on status display | U | Insulation voltage input/output | 4 kV (type test)
3 kV (routine test) |
Product type | Power supply | Product family | MINI POWER |
MTBF (IEC 61709, SN 29500) | > 1104000 h (40 °C) | Article revision | 03 |
Protection class | II (in closed control cabinet) | Overvoltage category | III |
Degree of pollution | 2 | Width | 22.5 mm |
Height | 99 mm | Depth | 107 mm |
Installation distance right/left | 0 mm / 0 mm | Installation distance top/bottom | 50 mm / 50 mm |
Assembly note | alignable: horizontally 0 mm, vertically 50 mm | Mounting position | horizontal DIN rail NS 35, EN 60715 |
With protective coating | no | Housing material | Plastic |
Type of housing | Polyamide PA, color: green | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Climatic class | 3K3 (in acc. with EN 60721) | Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) | Vibration (operation) | < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 2.3g, 90 min. |
Temp code | T3A ≤ 60 °C
T3A ≤ 70 °C | Rail applications | EN 50121-4 |
Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations | EN 50178/VDE 0160 (PELV) | Standard – Limitation of mains harmonic currents | EN 61000-3-2 |
Standard - Electrical safety | EN 60950-1/VDE 0805 (SELV) | Standard – Safety extra-low voltage | EN 60950-1 (SELV)
EN 60204 (PELV) |
Standard - Safe isolation | DIN VDE 0100-410 | UL approvals | UL/C-UL listed UL 508
UL/C-UL Recognized UL 60950-1
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location)
NEC Class 2 as per UL 1310 |
SIL in accordance with IEC 61508 | 0 | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC | EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 |
EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 | Standards/regulations | EN 61000-4-2 |
Housing | Test Level 3 | Contact discharge | 8 kV |
Discharge in air | 8 kV | Comments | Criterion B |
Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 1 GHz |
Test field strength | 10 V/m | Comments | Criterion A |
Standards/regulations | EN 61000-4-4 | Input | 4 kV (Test Level 4 - asymmetrical: conductor to ground) |
Output | 2 kV (Test Level 3 - asymmetrical: conductor to ground) | Signal | 2 kV (Test Level 3 - asymmetrical: conductor to ground) |
Comments | Criterion B | Standards/regulations | EN 61000-4-5 |
Input | 4 kV (Test Level 4 - asymmetrical: conductor to ground)
2 kV (Test intensity 4 - symmetrical: cable to cable) | Output | 0.5 kV (Test Level 1 - asymmetrical: conductor to ground)
0.5 kV (Test intensity 1 - symmetrical: cable to cable) |
Signal | 1 kV (Test Level 2 - asymmetrical: conductor to ground) | Comments | Criterion B |
Standards/regulations | EN 61000-4-6 | I/O/S | Test Level 3 - asymmetrical |
Frequency range | 0.15 MHz ... 80 MHz | Comments | Criterion A |
Voltage | 10 V | Standards/regulations | EN 61000-4-11 |
Standards/regulations | EN 61000-6-3 | Radio interference voltage in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
Emitted radio interference in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
Specifications may be subject to change without notice
