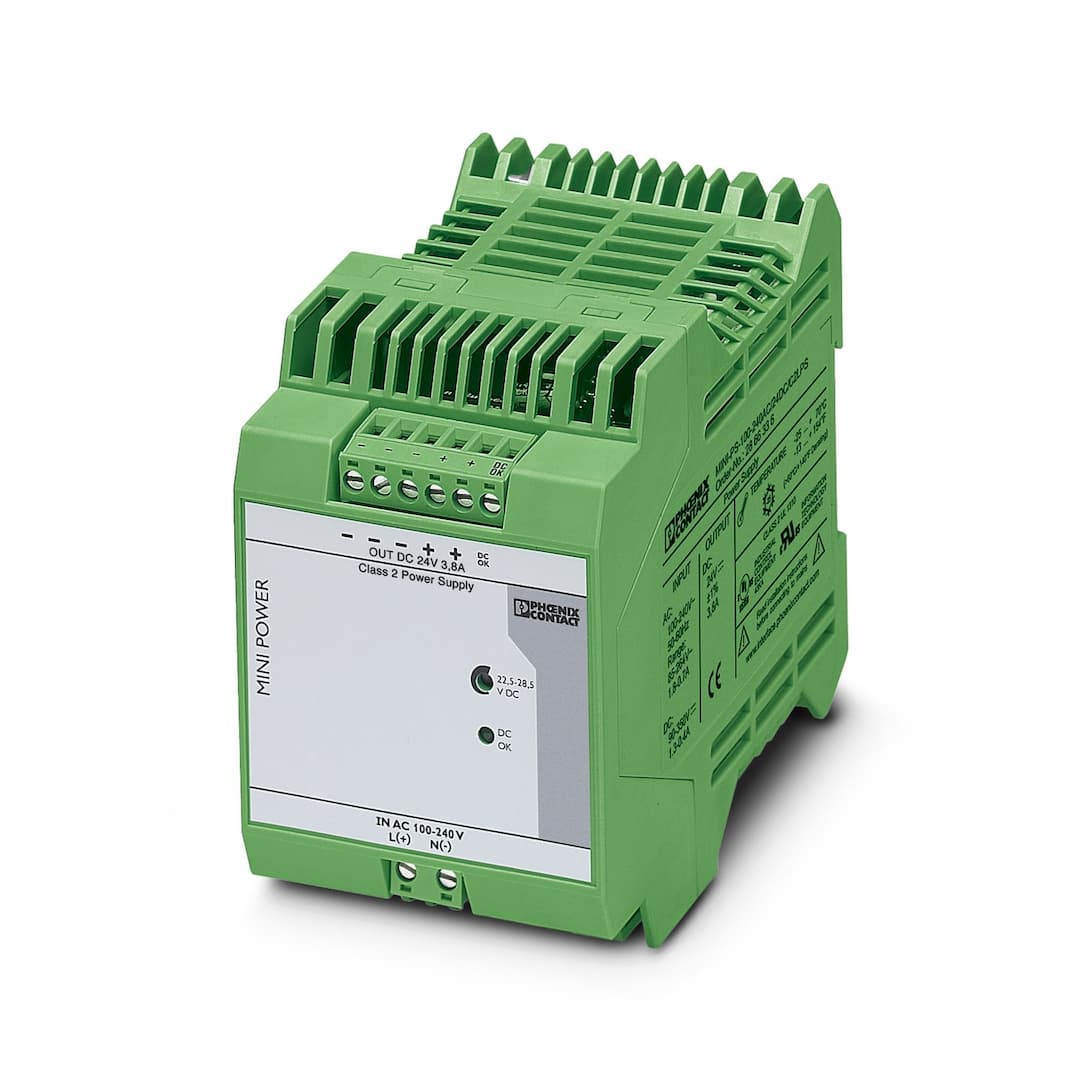

Product Model
MINI-PS-100-240AC/24DC/C2LPS
Selling Points
- 1Supports input voltages from 100V AC to 240V AC, ensuring global application flexibility.
- 2Achieves efficiency levels of over 88% at nominal values, reducing energy waste and increasing system reliability.
- 3Designed for parallel connection, allowing up to five units to be connected for increased redundancy and power capacity.
- 4Equipped with powerful capacitors for mains buffering of over 20 ms at full load, protecting against transient power supply failures.
- 5Slim and narrow design makes it perfect for DIN rail mounting in control cabinets, saving space in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal input voltage range | 100 V AC ... 240 V AC | Input voltage range | 85 V AC ... 264 V AC
90 V DC ... 350 V DC |
Input voltage range AC | 85 V AC ... 264 V AC | Input voltage range DC | 90 V DC ... 350 V DC |
Voltage type of supply voltage | AC/DC | Inrush current | < 15 A (typical) |
Inrush current integral (I | 2.1 A | AC frequency range | 45 Hz ... 65 Hz |
Mains buffering time | > 20 ms (120 V AC)
> 100 ms (230 V AC) | Current consumption | 1.3 A (120 V AC)
0.8 A (230 V AC)
1.3 A (90 V DC)
0.4 A (350 V DC) |
Nominal power consumption | 194 VA | Typical response time | < 0.4 s |
Input fuse | 3.15 A (slow-blow, internal) | Permissible backup fuse | B6 B10 B16 |
Recommended breaker for input protection | 6 A ... 16 A (Characteristics B, C, D, K) | Efficiency | > 88 % (for 230 V AC and nominal values) |
Output characteristic | U/I | Nominal output voltage | 24 V DC ±1 % |
Setting range of the output voltage (U | 22.5 V DC ... 26 V DC (> 24 V DC, constant capacity restricted) | Nominal output current (I | 3.8 A (-25 °C ... 60 °C) |
Derating | 60 °C ... 70 °C (2.5 %/K) | Residual ripple | < 40 mV |
Output power | 100 W | Peak switching voltages idling | < 100 mV |
Maximum no-load power dissipation | 2.5 W | Power loss nominal load max. | 12 W |
Connection in parallel | yes, for redundancy and increased capacity | Connection in series | yes |
Output description | U | Maximum switching voltage | ≤ 24 V |
Output voltage | + 24 V (Signal) | Continuous load current | ≤ 20 mA |
Connection method | Pluggable screw connection | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 24 |
Conductor cross section AWG max. | 12 | Stripping length | 7 mm |
Screw thread | M3 | Connection method | Pluggable screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 12 |
Stripping length | 7 mm | Screw thread | M3 |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 12 |
Screw thread | M3 | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Types of signaling | LED
Active switching output |
Operating voltage display | Green LED | Status display | "DC OK" LED green |
Note on status display | U | Number of phases | 1.00 |
Insulation voltage input/output | 3 kV (type test)
3 kV (routine test) | Product type | Power supply |
Product family | MINI POWER | MTBF (IEC 61709, SN 29500) | > 815000 h (40 °C) |
Article revision | 04 | Protection class | II (in closed control cabinet) |
Overvoltage category | III | Width | 67.5 mm |
Height | 99 mm | Depth | 107 mm |
Installation distance right/left | 0 mm / 0 mm | Installation distance top/bottom | 50 mm / 50 mm |
Mounting type | DIN rail mounting | Assembly note | alignable: horizontally 0 mm, vertically 50 mm |
Mounting position | horizontal DIN rail NS 35, EN 60715 | With protective coating | no |
Housing material | Plastic | Type of housing | Polyamide PA, color: green |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
Temp code | T3C ≤ 60 °C | Rail applications | EN 50121-4 |
Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations | EN 50178/VDE 0160 (PELV) | Standard – Limitation of mains harmonic currents | EN 61000-3-2 |
Standard - Electrical safety | EN 60950-1/VDE 0805 (SELV) | Standard – Safety extra-low voltage | EN 60950-1 (SELV)
EN 60204 (PELV) |
Standard - Safe isolation | DIN VDE 0100-410 | UL approvals | UL/C-UL listed UL 508
UL/C-UL Recognized UL 60950-1
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location)
NEC Class 2 as per UL 1310 |
SIL in accordance with IEC 61508 | 0 | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC | EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 |
EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 | Noise emission | EN 55011 (EN 55022) |
Specifications may be subject to change without notice
