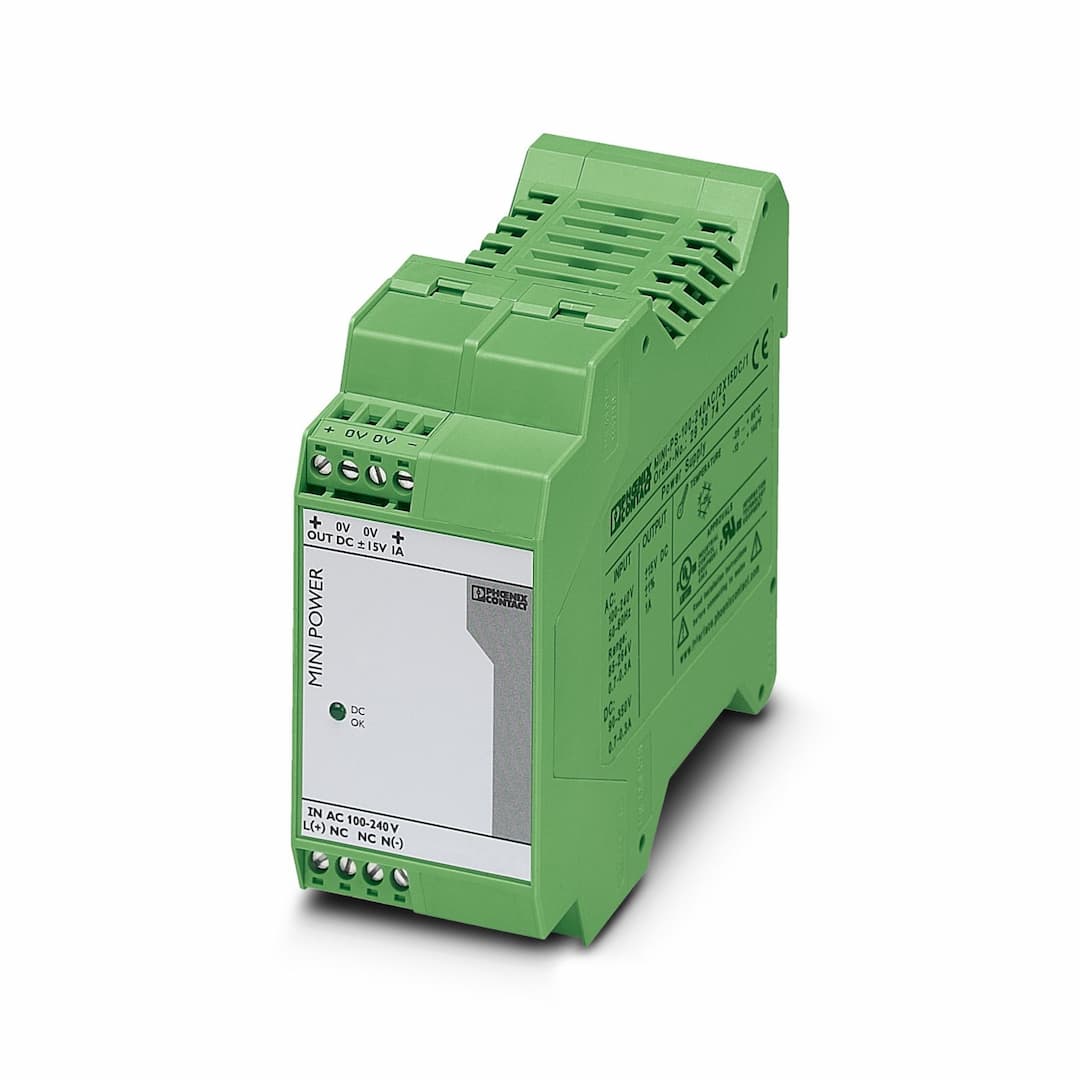

Product Model
MINI-PS-100-240AC/2X15DC/1
Selling Points
- 1Wide Input Voltage Range: Operates from 85 V AC to 264 V AC and 90 V DC to 350 V DC.
- 2High Efficiency: Achieves efficiency over 80% at nominal values for 230 V AC.
- 3Compact Design: Dimensions are 45 mm wide, 99 mm high, and 107 mm deep.
- 4Redundant System Capability: Allows connection in parallel for assembling redundant systems.
- 5Advanced Protection Features: Includes protection class II and insulation voltage up to 4 kV.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal input voltage range | 100 V AC ... 240 V AC | Input voltage range | 85 V AC ... 264 V AC
90 V DC ... 350 V DC |
Input voltage range AC | 85 V AC ... 264 V AC | Input voltage range DC | 90 V DC ... 350 V DC |
Voltage type of supply voltage | AC/DC | Inrush current | < 35 A (typical) |
Inrush current integral (I | 4 A | AC frequency range | 45 Hz ... 65 Hz |
Mains buffering time | typ. 30 ms (120 V AC)
typ. 150 ms (230 V AC) | Current consumption | 0.6 A (120 V AC)
0.4 A (230 V AC)
0.8 A (90 V DC)
0.3 A (350 V DC) |
Nominal power consumption | 61 VA | Typical response time | < 1 s |
Input fuse | 2.5 A (slow-blow, internal) | Recommended breaker for input protection | 6 A ... 16 A (Characteristics B, C, D, K) |
Efficiency | > 80 % (for 230 V AC and nominal values) | Nominal output voltage | ± 15 V DC ±1 % |
Nominal output current (I | 2x 1 A (-25 °C ... 60 °C) | POWER BOOST (I | 2x 1.5 A (-25 °C ... 40 °C permanent) |
Derating | 60 °C ... 70 °C (2.5 %/K) | Feedback voltage resistance | 17 V DC |
Active current limitation | Approx 4.4 A (in the event of a short circuit) | Control deviation | < 2 % (change in load, static 10 % ... 90 %)
< 3 % (change in load, dynamic 10 % ... 90 %)
< 0.1 % (change in input voltage ±10 %) |
Residual ripple | < 30 mV | Output power | 15 W |
Peak switching voltages nominal load | < 20 mV | Maximum no-load power dissipation | 2 W |
Power loss nominal load max. | 8 W | Rise time | < 100 ms (typ.) |
Connection in parallel | yes, for assembling redundant systems and increasing efficiency | Connection in series | yes |
Connection method | Pluggable screw connection | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 24 |
Conductor cross section AWG max. | 12 | Stripping length | 7 mm |
Screw thread | M3 | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Connection method | Pluggable screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 12 |
Stripping length | 7 mm | Screw thread | M3 |
Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 12 |
Screw thread | M3 | Types of signaling | LED |
Operating voltage display | Green LED | Status display | "DC OK" LED green |
Insulation voltage input/output | 4 kV (type test)
3 kV (routine test) | Product type | Power supply |
Product family | MINI POWER | MTBF (IEC 61709, SN 29500) | > 500000 h (40 °C) |
Article revision | 12 | Protection class | II (in closed control cabinet) |
Degree of pollution | 2 | Width | 45 mm |
Height | 99 mm | Depth | 107 mm |
Installation distance right/left | 0 mm / 0 mm | Installation distance top/bottom | 50 mm / 50 mm |
Assembly note | alignable: horizontally 0 mm, vertically 50 mm | Mounting position | horizontal DIN rail NS 35, EN 60715 |
With protective coating | no | Housing material | Plastic |
Type of housing | Polyamide PA, color: green | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Climatic class | 3K3 (in acc. with EN 60721) | Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) | Vibration (operation) | < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 2.3g, 90 min. |
Temp code | T4A ≤ 60 °C | Rail applications | EN 50121-4 |
Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations | EN 50178/VDE 0160 (PELV) | Standard – Limitation of mains harmonic currents | EN 61000-3-2 |
Standard - Electrical safety | EN 60950-1/VDE 0805 (SELV) | Standard – Safety extra-low voltage | EN 60950-1 (SELV)
EN 60204 (PELV) |
Standard - Safe isolation | DIN VDE 0100-410 | UL approvals | UL/C-UL listed UL 508
UL/C-UL Recognized UL 60950-1
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location)
NEC Class 2 as per UL 1310 |
SIL in accordance with IEC 61508 | 0 | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC | EMC requirements for noise immunity | EN 61000-6-2 |
Noise emission | EN 55011 (EN 55022) | Standards/regulations | EN 61000-4-2 |
Housing | Level 3 | Contact discharge | 8 kV |
Discharge in air | 8 kV | Comments | Criterion B |
Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 1 GHz |
Test field strength | 10 V/m | Frequency range | 1 GHz ... 2 GHz |
Test field strength | 3 V/m | Frequency range | 2 GHz ... 2.7 GHz |
Test field strength | 1 V/m | Comments | Criterion A |
Standards/regulations | EN 61000-4-4 | Input | 4 kV (level 4 - asymmetrical: conductor to ground) |
Output | 2 kV (level 3 - asymmetrical: conductor to ground) | Signal | 1 kV (level 2 - asymmetrical: conductor to ground) |
Comments | Criterion B | Standards/regulations | EN 61000-4-5 |
Input | 4 kV (level 4 - asymmetrical: conductor to ground)
2 kV (level 4 - symmetrical: conductor to conductor) | Output | 0.5 kV (level 1 - asymmetrical: conductor to ground)
0.5 kV (level 1 - symmetrical: conductor to conductor) |
Signal | 0.5 kV (level 1 - asymmetrical: conductor to ground) | Comments | Criterion B |
Standards/regulations | EN 61000-4-6 | I/O/S | Level 3 - asymmetrical |
Frequency range | 0.15 MHz ... 80 MHz | Comments | Criterion A |
Voltage | 10 V | Standards/regulations | EN 61000-4-11 |
Standards/regulations | EN 61000-6-3 | Radio interference voltage in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
Emitted radio interference in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
Specifications may be subject to change without notice
