Product Model

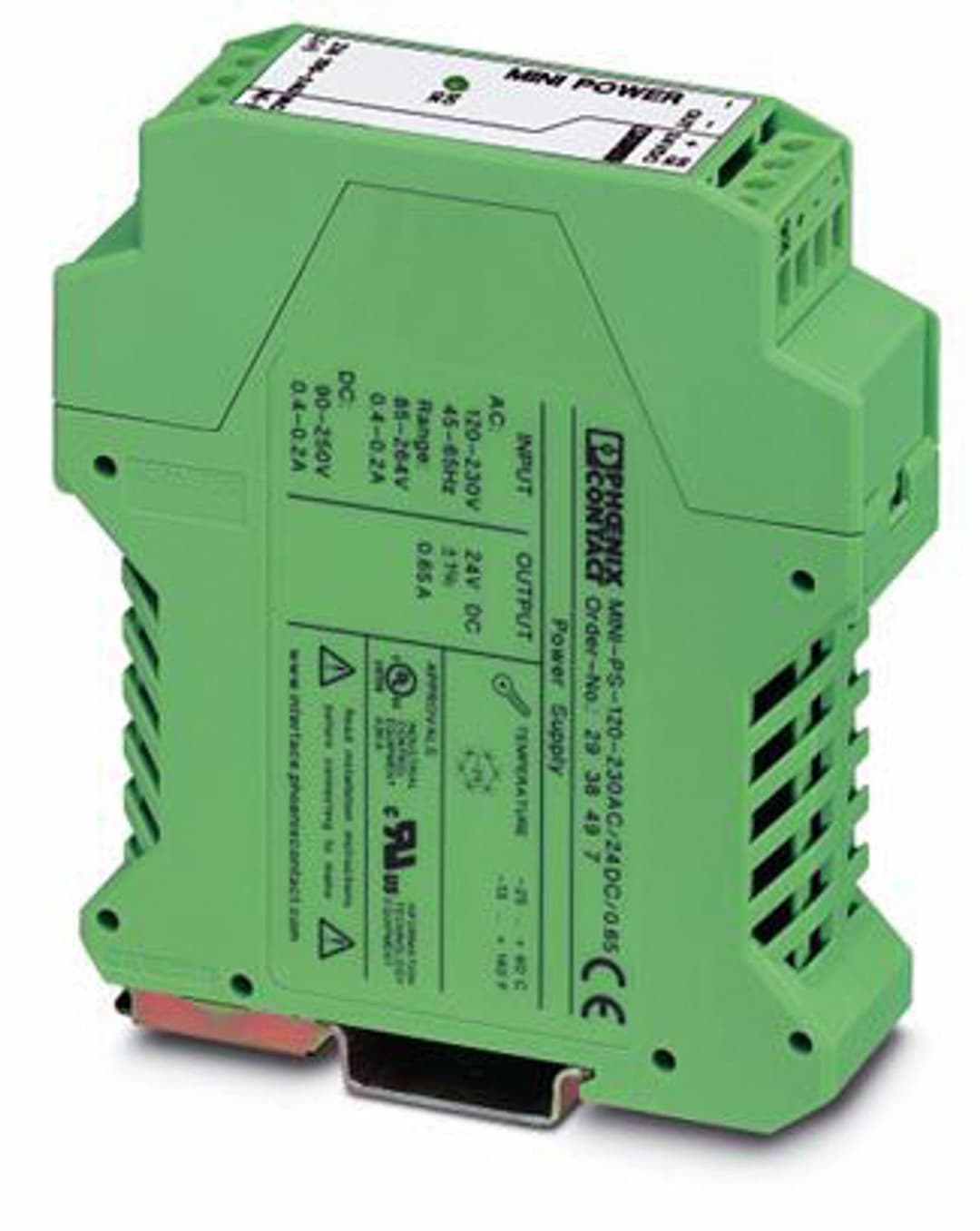

MINI-PS-120-230AC/24DC/0.65
Selling Points
- 185V AC to 264V AC for versatile use.
- 2Typical efficiency of 88.8% (120VAC), 89.2% (230VAC).
- 3Dimensions are 1.41 x 5.11 x 4.92 inches, perfect for space-constrained applications.
- 4Meets international standards including EN 50121-3-2 and IEC 62236-3-2.
- 5Indicates critical operating states before errors occur, ensuring system reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal input voltage range | 100 V AC ... 240 V AC | Input voltage range | 85 V AC ... 264 V AC
90 V DC ... 350 V DC |
Input voltage range AC | 85 V AC ... 264 V AC | Input voltage range DC | 90 V DC ... 350 V DC |
Inrush current | < 10 A (at 25 °C, | AC frequency range | 47 Hz ... 63 Hz |
Frequency range DC | 0 Hz | Mains buffering time | > 30 ms (at 120 V AC)
> 100 ms (at 230 V AC) |
Current consumption | 0.2 A (at 230 V AC (nominal load))
0.4 A (at 120 V AC (nominal load)) | Typical response time | < 1 s |
Input fuse | Internal | Efficiency | > 80 % (for 230 V AC and nominal values) |
Nominal output voltage | 24 V DC ±3 % | Nominal output current (I | 0.65 A (up to 60 °C) |
POWER BOOST (I | 1.2 A | Residual ripple | < 100 mV |
Output power | 15.6 W | Peak switching voltages nominal load | < 20 mV |
Maximum no-load power dissipation | < 2.2 W | Power loss nominal load max. | < 3.2 W |
Connection in parallel | yes, for assembling redundant systems | Connection in series | yes |
Connection method | Pluggable screw connection | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 24 |
Conductor cross section AWG max. | 14 | Stripping length | 7 mm |
Screw thread | M3 | Connection method | Pluggable screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 14 |
Stripping length | 7 mm | Status display | Green LED (DC OK = LED permanently lit) |
Insulation voltage input/output | 3 kV (routine test)
4 kV (type test) | Product type | Power supply |
MTBF (IEC 61709, SN 29500) | > 500000 h | Width | 22.5 mm |
Height | 99 mm | Depth | 114.5 mm |
Assembly note | alignable: vertical with spacing > 10 cm, horizontal with zero spacing | Mounting position | On horizontal DIN rail NS 35 in acc. with EN 60715 |
Type of housing | Polyamide PA, color: green | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 60 °C (UL up to 50°C) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Max. permissible relative humidity (operation) | 95 % (at 25 °C, non-condensing) | Standard - Electrical safety | EN 60950-1/VDE 0805 (SELV) |
Standard - Safe isolation | DIN VDE 0100-410 | Electromagnetic compatibility | Conformance with EMC directive 89/336/EC |
Specifications may be subject to change without notice
