Product Model

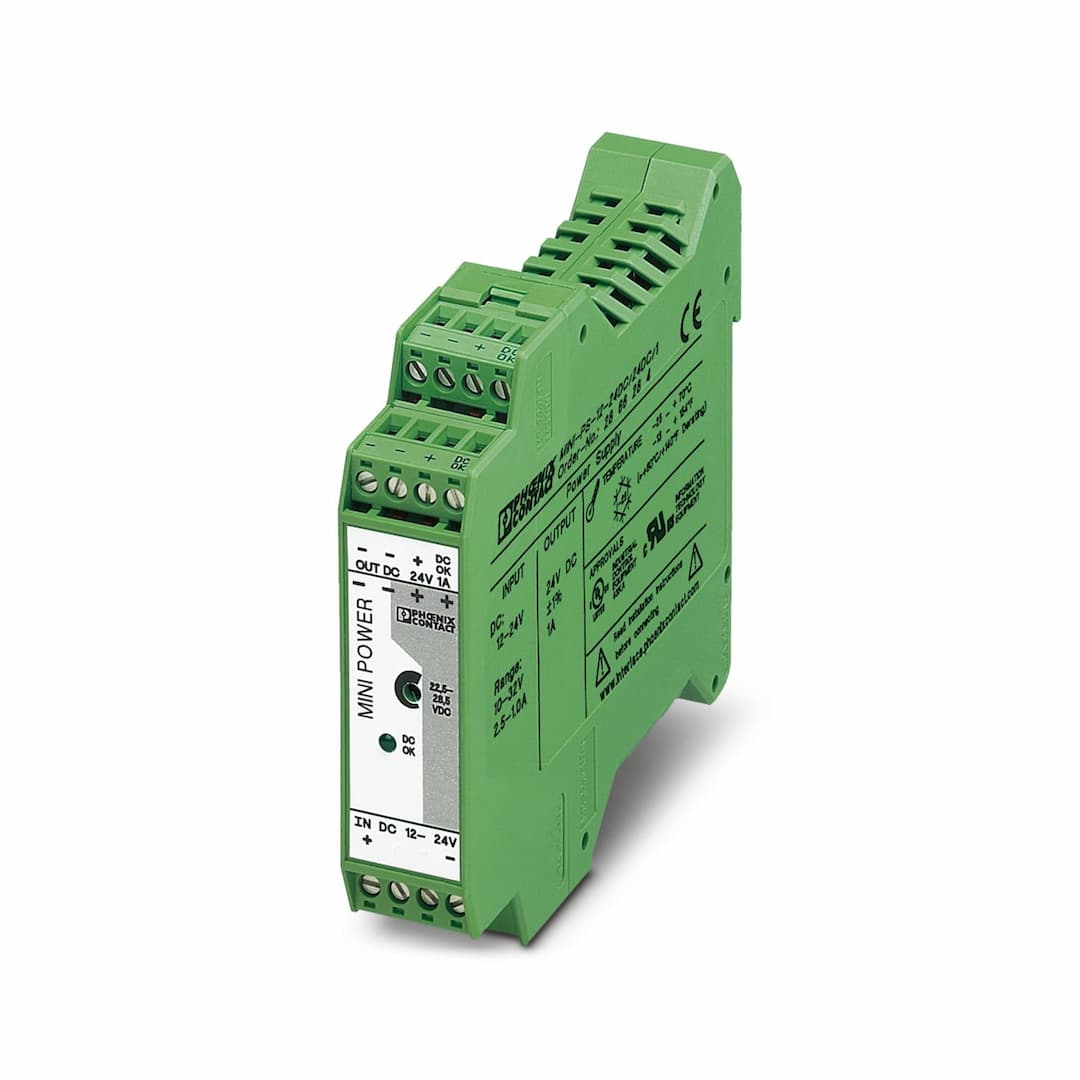

MINI-PS- 12- 24DC/24DC/1
Selling Points
- 1Compact and space-efficient for easy installation.
- 2Electrical isolation for setting up independent supply systems.
- 3Compatible with 10-32V DC input voltage range.
- 4Efficiency > 78% at nominal values, reducing power loss.
- 5Compliant with WEEE/RoHS regulations, ensuring environmental sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal input voltage range | 12 V DC ... 24 V DC | Input voltage range | 10 V DC ... 32 V DC |
Wide-range input | yes | Input voltage range DC | 10 V DC ... 32 V DC |
Voltage type of supply voltage | DC | Inrush current | < 15 A (typical) |
Inrush current integral (I | 1.8 A | Frequency range DC | 0 Hz |
Mains buffering time | typ. 3 ms (12 V DC)
typ. 20 ms (24 V DC) | Current consumption | 2.6 A (12 V DC)
1.3 A (24 V DC) |
Typical response time | < 0.5 s | Input fuse | 6.3 A (slow-blow, internal) |
Efficiency | > 83 % (at 24 V DC and nominal values) | Output characteristic | U/I |
Nominal output voltage | 24 V DC ±1 % | Setting range of the output voltage (U | 22.5 V DC ... 28.5 V DC (> 24 V DC, constant capacity restricted) |
Nominal output current (I | 1 A (-25 °C ... 60 °C) | Derating | 60 °C ... 70 °C (2.5 %/K) |
Residual ripple | < 30 mV | Short-circuit-proof | yes |
Output power | 24 W | Peak switching voltages nominal load | < 100 mV |
Maximum no-load power dissipation | < 1.2 W | Power loss nominal load max. | < 5 W |
Connection in parallel | yes, for assembling redundant systems and increasing efficiency | Connection in series | yes |
Output description | U | Maximum switching voltage | ≤ 24 V DC |
Output voltage | + 24 V (Signal) | Continuous load current | ≤ 20 mA |
Connection method | Pluggable screw connection | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 24 |
Conductor cross section AWG max. | 14 | Stripping length | 7 mm |
Screw thread | M3 | Connection method | Pluggable screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 14 |
Stripping length | 7 mm | Screw thread | M3 |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 14 |
Screw thread | M3 | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Types of signaling | LED
Active switching output |
Operating voltage display | Green LED | Status display | "DC OK" LED green |
Number of phases | 1.00 | Insulation voltage input/output | 1.5 kV (type test)
1 kV (routine test) |
Product type | DC/DC converters | MTBF (IEC 61709, SN 29500) | > 2569000 h (40 °C) |
Article revision | 06 | Protection class | III |
Width | 22.5 mm | Height | 99 mm |
Depth | 107 mm | Installation distance right/left | 0 mm / 0 mm (≤ 70 °C) |
Installation distance top/bottom | 50 mm / 50 mm (≤ 70 °C) | Assembly note | alignable: horizontally 0 mm, vertically 50 mm |
Mounting position | horizontal DIN rail NS 35, EN 60715 | With protective coating | no |
Housing material | Plastic | Type of housing | Polyamide PA, color: green |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
Temp code | T4A ≤ 60 °C
T3C ≤ 70 °C | Rail applications | EN 50121-4 |
Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations | EN 50178/VDE 0160 (PELV) | Standard - Electrical safety | EN 60950-1/VDE 0805 (SELV) |
Standard - Safe isolation | DIN VDE 0100-410
DIN VDE 0106-101 | Shipbuilding approval | DNV GL (EMC A) |
UL approvals | UL/C-UL listed UL 508
UL/C-UL Recognized UL 60950-1
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location) | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC | EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 |
EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 | Noise emission | EN 55011 (EN 55022) |
Standards/regulations | EN 61000-4-2 | Housing | > Level 3 |
Contact discharge | 8 kV (Contact discharge) | Discharge in air | 8 kV (Air discharge) |
Comments | Criterion B | Standards/regulations | EN 61000-4-3 |
Frequency range | 80 MHz ... 3 GHz | Test field strength | 10 V/m |
Comments | Criterion A | Standards/regulations | EN 61000-4-4 |
Input | 4 kV (level 4 - asymmetrical: conductor to ground) | Output | 2 kV (level 3 - asymmetrical: conductor to ground) |
Signal | 1 kV | Comments | Level 2 - asymmetrical cable to ground |
Standards/regulations | EN 61000-4-5 | Input | 2 kV (Level 3)
1 kV (Level 3) |
Standards/regulations | EN 61000-4-6 | Input/Output | Level 3 |
Frequency range | 0.15 MHz ... 80 MHz (10 V) | Standards/regulations | EN 61000-4-11 |
Standards/regulations | EN 61000-6-3 | Radio interference voltage in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
Emitted radio interference in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
Specifications may be subject to change without notice
