Product Model

MINI-PS- 12- 24DC/48DC/0.7

In Stock
Last updated: 2025/4/17

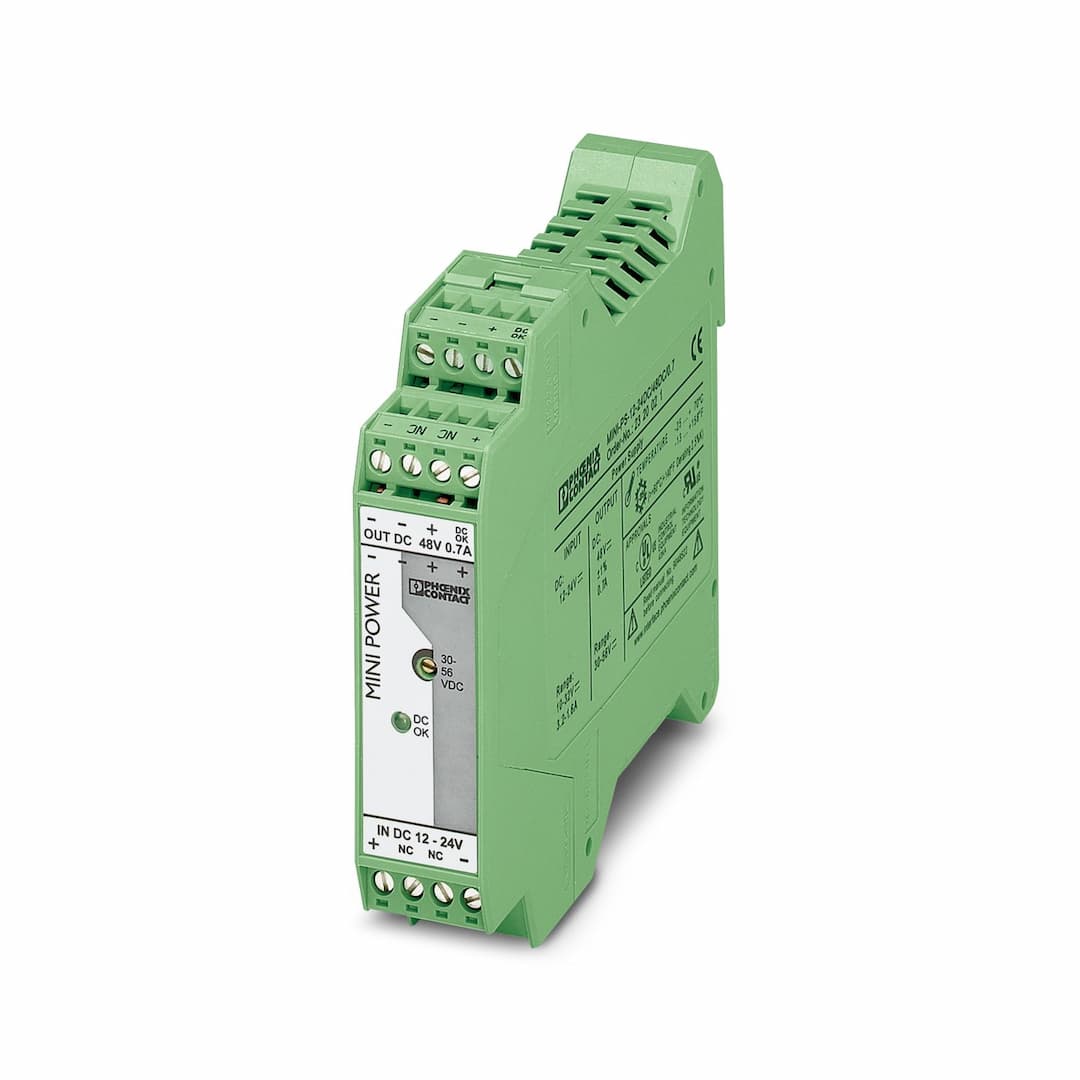

Phoenix Contact MINI-PS- 12- 24DC/48DC/0.7

Selling Points

  • 1Converts 10-32V DC to 48V DC with a 33.6W power rating.
  • 2Designed for easy installation on DIN rail systems.
  • 3Provides electrical isolation for safe and independent supply systems.
  • 4Delivers 700mA of output current for reliable operation.
  • 5Operates between -25°C and +70°C, ensuring versatility in various environments.
Product Details
MINI-PS- 12- 24DC/48DC/0.7
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Nominal input voltage range
12 V DC ... 24 V DC
Input voltage range
10 V DC ... 32 V DC (> 10.5 V DC start)
Wide-range input
yes
Input voltage range DC
10 V DC ... 32 V DC (> 10.5 V DC start)
Voltage type of supply voltage
DC
Inrush current
< 10 A (typical)
Inrush current integral (I
0.3 A
Frequency range DC
0 Hz
Mains buffering time
typ. 2 ms (12 V DC) typ. 12 ms (24 V DC)
Current consumption
3.2 A (12 V DC) 1.6 A (24 V DC)
Typical response time
< 0.5 s
Input fuse
6.3 A (slow-blow, internal)
Efficiency
> 87 % (at 24 V DC and nominal values)
Output characteristic
U/I
Nominal output voltage
48 V DC ±1 %
Setting range of the output voltage (U
30 V DC ... 56 V DC (> 48 V DC, constant capacity restricted)
Nominal output current (I
0.7 A (-25 °C ... 60 °C)
Derating
60 °C ... 70 °C (2.5 %/K)
Feedback voltage resistance
60 V DC
Protection against overvoltage at the output (OVP)
< 60 V DC
Residual ripple
< 20 mV
Output power
33.6 W
Peak switching voltages nominal load
< 10 mV
Maximum no-load power dissipation
< 1.5 W
Power loss nominal load max.
< 4.5 W
Connection in parallel
yes, for assembling redundant systems and increasing efficiency
Connection in series
yes
Output description
U
Output voltage
+ 24 V (Signal)
Continuous load current
≤ 20 mA
Connection method
Pluggable screw connection
Conductor cross section, rigid min.
0.2 mm²
Conductor cross section, rigid max.
2.5 mm²
Conductor cross section flexible min.
0.2 mm²
Conductor cross section flexible max.
2.5 mm²
Conductor cross section AWG min.
24
Conductor cross section AWG max.
14
Stripping length
7 mm
Screw thread
M3
Tightening torque, min
0.5 Nm
Tightening torque max
0.6 Nm
Connection method
Pluggable screw connection
Conductor cross section, rigid min.
0.2 mm²
Conductor cross section, rigid max.
2.5 mm²
Conductor cross section flexible min.
0.2 mm²
Conductor cross section flexible max.
2.5 mm²
Conductor cross section AWG min.
24
Conductor cross section AWG max.
14
Stripping length
7 mm
Screw thread
M3
Tightening torque, min
0.5 Nm
Tightening torque max
0.6 Nm
Conductor cross section, rigid min.
0.2 mm²
Conductor cross section, rigid max.
2.5 mm²
Conductor cross section flexible min.
0.2 mm²
Conductor cross section flexible max.
2.5 mm²
Conductor cross section AWG min.
24
Conductor cross section AWG max.
14
Screw thread
M3
Tightening torque, min
0.5 Nm
Tightening torque max
0.6 Nm
Types of signaling
LED Active switching output
Status display
"DC OK" LED green
Note on status display
U
Color
green
Note on status display
LED on
Number of phases
1.00
Insulation voltage input/output
1.5 kV (type test) 1 kV (routine test)
Product type
DC/DC converters
MTBF (IEC 61709, SN 29500)
> 1993000 h (40 °C)
Article revision
02
Protection class
III
Degree of pollution
2
Width
22.5 mm
Height
99 mm
Depth
107 mm
Installation distance right/left
0 mm / 0 mm (≤ 70 °C)
Installation distance top/bottom
50 mm / 50 mm (≤ 70 °C)
Assembly note
alignable: horizontally 0 mm, vertically 50 mm
Mounting position
horizontal DIN rail NS 35, EN 60715
With protective coating
no
Housing material
Plastic
Housing material
Polyamide (PA)
Type of housing
Polyamide PA, color: green
Degree of protection
IP20
Ambient temperature (operation)
-25 °C ... 70 °C (> +60°C derating)
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Climatic class
3K3 (in acc. with EN 60721)
Max. permissible relative humidity (operation)
≤ 95 % (at +25 °C, non-condensing)
Shock
18 ms, 30g, in each space direction (according to IEC 60068-2-27)
Vibration (operation)
< 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6) 15 Hz ... 150 Hz, 2.3g
Rail applications
EN 50121-4
Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations
EN 50178/VDE 0160 (PELV)
Standard - Electrical safety
EN 60950-1/VDE 0805 (SELV)
Standard - Safe isolation
DIN VDE 0100-410 DIN VDE 0106-101
CSA
CSA-C22.2 No. 107.1-01
UL approvals
UL/C-UL listed UL 508 UL/C-UL Recognized UL 60950-1 UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location)
Electromagnetic compatibility
Conformance with EMC Directive 2014/30/EU
Low Voltage Directive
Conformance with Low Voltage Directive 2014/35/EC
EMC requirements for noise emission
EN 61000-6-3 EN 61000-6-4
EMC requirements for noise immunity
EN 61000-6-1 EN 61000-6-2
Noise emission
EN 55011 (EN 55022)
Standards/regulations
EN 61000-4-2
Housing
> Level 3
Contact discharge
8 kV (Contact discharge)
Discharge in air
8 kV (Air discharge)
Comments
Criterion B
Standards/regulations
EN 61000-4-3
Frequency range
80 MHz ... 3 GHz
Test field strength
10 V/m
Comments
Criterion A
Standards/regulations
EN 61000-4-4
Input
4 kV (level 4 - asymmetrical: conductor to ground)
Output
2 kV (level 3 - asymmetrical: conductor to ground)
Signal
1 kV (Level 2 - asymmetrical cable to ground)
Comments
Criterion B
Standards/regulations
EN 61000-4-5
Input
2 kV (Level 3) 1 kV (Level 3)
Standards/regulations
EN 61000-4-6
Input/Output
Level 3
Frequency range
0.15 MHz ... 80 MHz (10 V)
Standards/regulations
EN 61000-4-11
Standards/regulations
EN 61000-6-3
Radio interference voltage in acc. with EN 55011
EN 55011 (EN 55022) Class B, area of application: Industry and residential
Emitted radio interference in acc. with EN 55011
EN 55011 (EN 55022) Class B, area of application: Industry and residential

Specifications may be subject to change without notice
