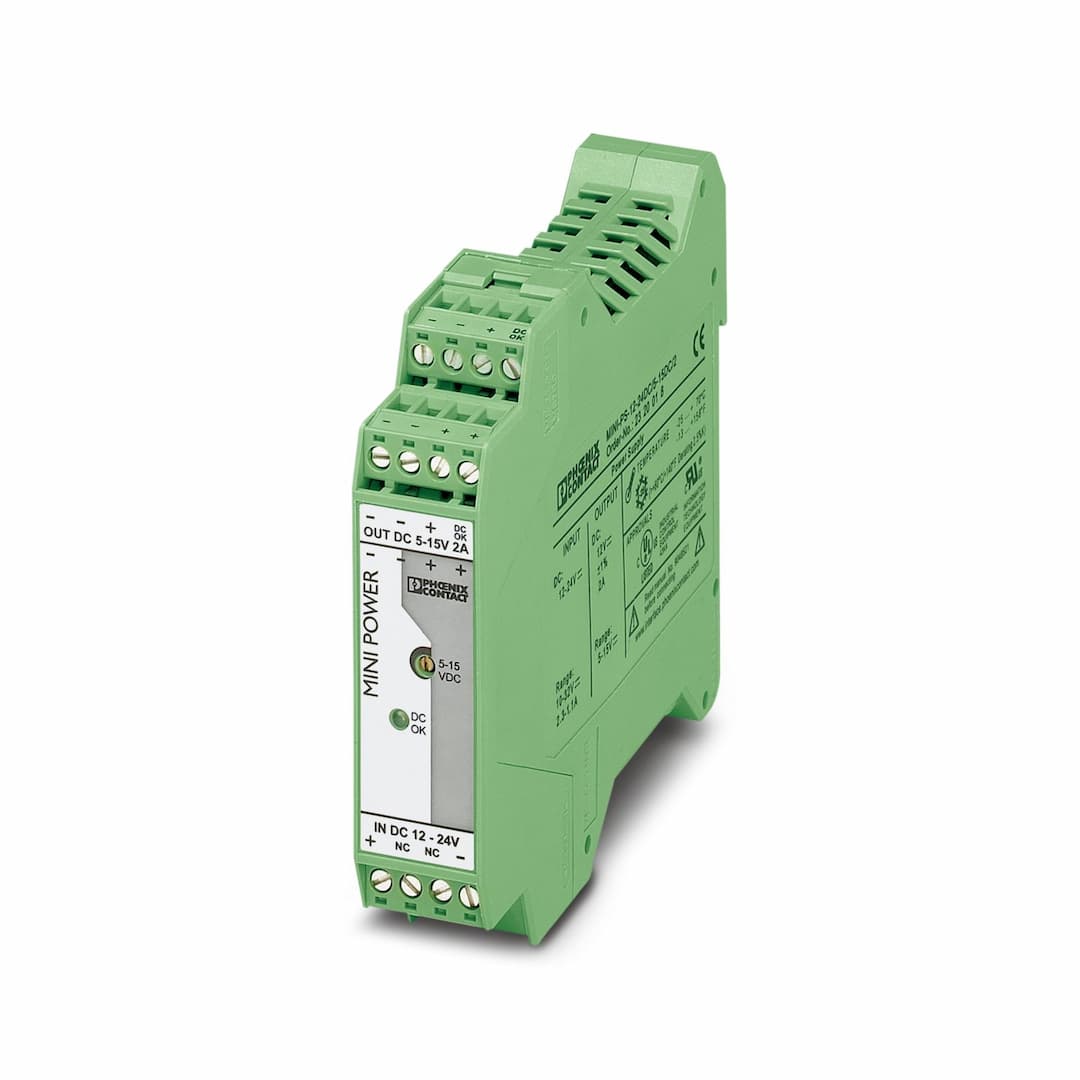

Product Model
MINI-PS- 12- 24DC/ 5-15DC/2
Selling Points
- 1Operates with input voltage range of 10 V DC to 32 V DC, ensuring flexibility in different applications.
- 2Provides an output voltage range of 5 V DC to 15 V DC with a nominal output current of 2 A, ensuring reliable power supply.
- 3Offers electrical isolation, allowing for the creation of independent supply systems and protecting against overvoltage.
- 4Compact dimensions (22.5 mm x 99 mm x 107 mm) make it suitable for DIN rail mounting, saving space in control panels.
- 5With an MTBF of over 2,072,000 hours at 40°C, this converter ensures high reliability and long service life.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal input voltage range | 12 V DC ... 24 V DC | Input voltage range | 10 V DC ... 32 V DC (> 10.5 V DC start) |
Wide-range input | yes | Input voltage range DC | 10 V DC ... 32 V DC (> 10.5 V DC start) |
Voltage type of supply voltage | DC | Inrush current | < 10 A (typical) |
Inrush current integral (I | 0.2 A | Frequency range DC | 0 Hz |
Mains buffering time | typ. 4 ms (12 V DC)
typ. 18 ms (24 V DC) | Current consumption | 2.3 A (12 V DC)
1.1 A (24 V DC) |
Typical response time | < 0.5 s | Input fuse | 6.3 A (slow-blow, internal) |
Efficiency | > 88 % (at 24 V DC and nominal values) | Output characteristic | U/I |
Nominal output voltage | 12 V DC ±1 % | Setting range of the output voltage (U | 5 V DC ... 15 V DC |
Nominal output current (I | 2 A (-25 °C ... 60 °C) | Derating | 60 °C ... 70 °C (2.5 %/K) |
Feedback voltage resistance | 30 V DC | Protection against overvoltage at the output (OVP) | < 25 V DC |
Residual ripple | < 20 mV | Output power | 24 W |
Peak switching voltages nominal load | < 10 mV | Maximum no-load power dissipation | < 1 W |
Power loss nominal load max. | < 4.2 W | Connection in parallel | yes, for assembling redundant systems and increasing efficiency |
Connection in series | yes | Output description | U |
Continuous load current | ≤ 20 mA | Connection method | Pluggable screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 14 |
Stripping length | 7 mm | Screw thread | M3 |
Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
Connection method | Pluggable screw connection | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 24 |
Conductor cross section AWG max. | 14 | Stripping length | 7 mm |
Screw thread | M3 | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 24 |
Conductor cross section AWG max. | 14 | Screw thread | M3 |
Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
Types of signaling | LED
Active switching output | Status display | "DC OK" LED green |
Note on status display | U | Color | green |
Note on status display | LED on | Number of phases | 1.00 |
Insulation voltage input/output | 1.5 kV (type test)
1 kV (routine test) | Product type | DC/DC converters |
MTBF (IEC 61709, SN 29500) | > 2072000 h (40 °C) | Article revision | 02 |
Protection class | III | Degree of pollution | 2 |
Width | 22.5 mm | Height | 99 mm |
Depth | 107 mm | Installation distance right/left | 0 mm / 0 mm (≤ 70 °C) |
Installation distance top/bottom | 50 mm / 50 mm (≤ 70 °C) | Assembly note | alignable: horizontally 0 mm, vertically 50 mm |
Mounting position | horizontal DIN rail NS 35, EN 60715 | With protective coating | no |
Housing material | Plastic | Housing material | Polyamide (PA) |
Type of housing | Polyamide PA, color: green | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 70 °C (> +60°C derating) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Climatic class | 3K3 (in acc. with EN 60721) | Max. permissible relative humidity (operation) | ≤ 95 % (at +25 °C, non-condensing) |
Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) | Vibration (operation) | < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 2.3g |
Rail applications | EN 50121-4 | Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations | EN 50178/VDE 0160 (PELV) |
Standard - Electrical safety | EN 60950-1/VDE 0805 (SELV) | Standard - Safe isolation | DIN VDE 0100-410
DIN VDE 0106-101 |
CSA | CSA-C22.2 No. 107.1-01 | UL approvals | UL/C-UL listed UL 508
UL/C-UL Recognized UL 60950-1
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location) |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 | EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 |
Noise emission | EN 55011 (EN 55022) | Standards/regulations | EN 61000-4-2 |
Housing | > Level 3 | Contact discharge | 8 kV (Contact discharge) |
Discharge in air | 8 kV (Air discharge) | Comments | Criterion B |
Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 3 GHz |
Test field strength | 10 V/m | Comments | Criterion A |
Standards/regulations | EN 61000-4-4 | Input | 4 kV (level 4 - asymmetrical: conductor to ground) |
Output | 2 kV (level 3 - asymmetrical: conductor to ground) | Signal | 1 kV (Level 2 - asymmetrical cable to ground) |
Comments | Criterion B | Standards/regulations | EN 61000-4-5 |
Input | 2 kV (Level 3)
1 kV (Level 3) | Standards/regulations | EN 61000-4-6 |
Input/Output | Level 3 | Frequency range | 0.15 MHz ... 80 MHz (10 V) |
Standards/regulations | EN 61000-4-11 | Standards/regulations | EN 61000-6-3 |
Radio interference voltage in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential | Emitted radio interference in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
Specifications may be subject to change without notice
