Product Model

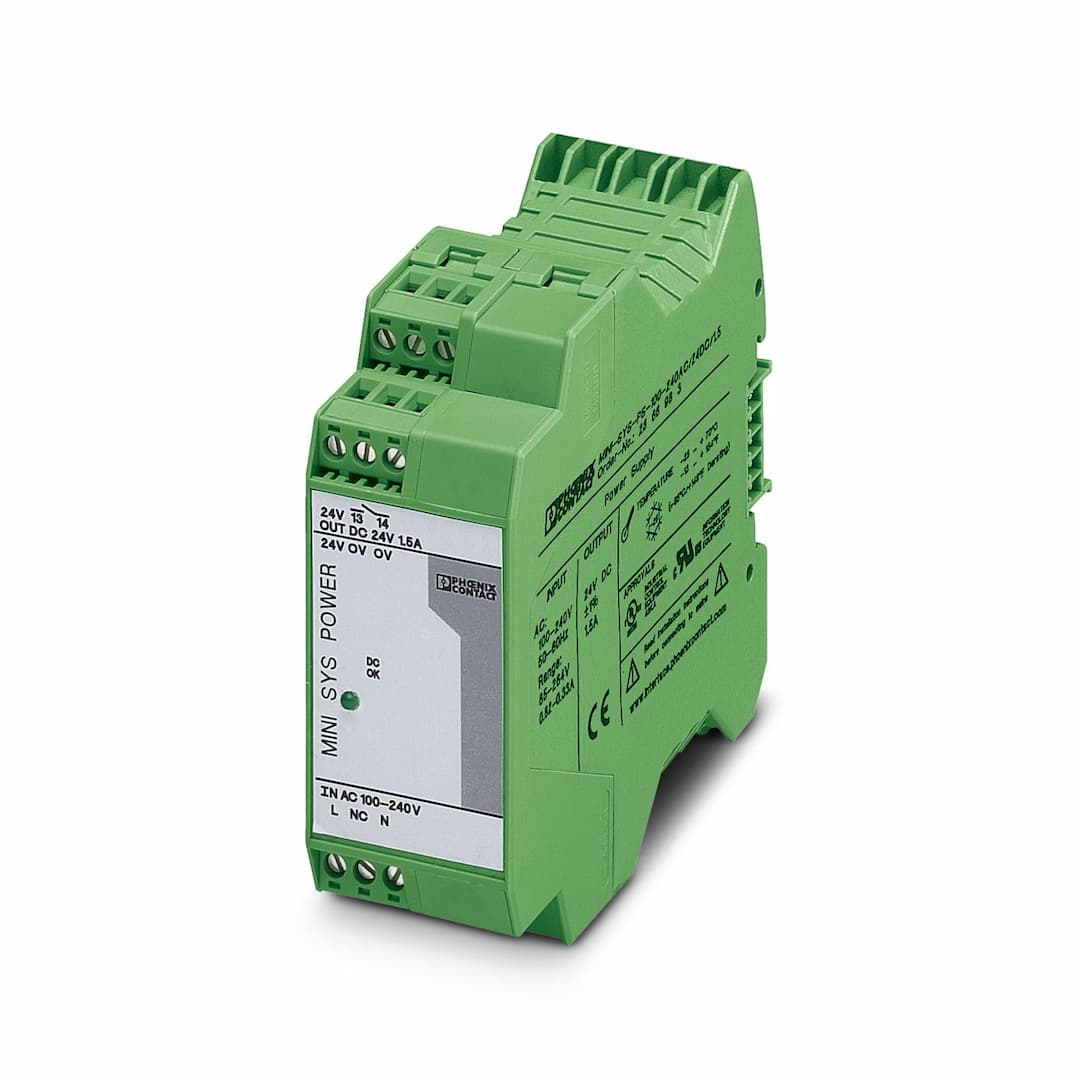

MINI-SYS-PS-100-240AC/24DC/1.5
Selling Points
- 1Ensures seamless operation with a mains failure bridging time of more than 20 ms under full load.
- 2Low design depth of 95 mm, perfect for applications with restricted space.
- 3Equipped with varistor input fuse for reliable protection against electrical surges.
- 4Compatible with 100 V AC to 240 V AC input voltage range, making it versatile for various applications.
- 5Meets international standards including EN 50121-3-2 and IEC 62236-3-2 for safe operation in different environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal input voltage range | 100 V AC ... 240 V AC | Input voltage range | 85 V AC ... 264 V AC |
Input voltage range AC | 85 V AC ... 264 V AC | Voltage type of supply voltage | AC |
Inrush current | < 15 A (0.6 A | Inrush current integral (I | 0.6 A |
AC frequency range | 45 Hz ... 65 Hz | Mains buffering time | typ. 35 ms (120 V AC)
typ. 150 ms (230 V AC) |
Current consumption | 0.75 A (120 V AC)
0.45 A (230 V AC) | Nominal power consumption | 90 VA |
Protective circuit | Transient surge protection; Varistor | Typical response time | < 0.5 s |
Input fuse | 3.15 A (slow-blow, internal) | Permissible backup fuse | B6 B10 B16 |
Recommended breaker for input protection | 6 A ... 16 A (Characteristics B, C, D, K) | Efficiency | > 84 % (for 230 V AC and nominal values) |
Output characteristic | U/I | Nominal output voltage | 24 V DC ±1 % |
Nominal output current (I | 1.5 A (-25 °C ... 60 °C) | Output current limit | 7 A (in the event of a short-circuit) |
POWER BOOST (I | 2 A (-25 °C ... 40 °C permanent) | Derating | 60 °C ... 70 °C (2.5 %/K) |
Feedback voltage resistance | 35 V DC | Protection against overvoltage at the output (OVP) | < 30 V DC |
Max. capacitive load | unlimited | Control deviation | < 1 % (change in load, static 10 % ... 90 %)
< 3 % (change in load, dynamic 10 % ... 90 %)
< 0.1 % (change in input voltage ±10 %) |
Residual ripple | < 40 mV | Short-circuit-proof | yes |
Output power | 36 W | Peak switching voltages idling | < 20 mV |
Peak switching voltages nominal load | < 20 mV | Maximum no-load power dissipation | 1.5 W |
Power loss nominal load max. | 6.5 W | Rise time | < 2 ms |
Connection in parallel | yes, for redundancy and increased capacity. | Connection in series | no |
Output description | U | Maximum switching voltage | ≤ 30 V AC/DC |
Output voltage | 30 V AC/DC | Continuous load current | ≤ 1 A |
Connection method | Pluggable screw connection | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 24 |
Conductor cross section AWG max. | 12 | Stripping length | 7 mm |
Screw thread | M3 | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Connection method | Pluggable screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 12 |
Stripping length | 7 mm | Screw thread | M3 |
Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 12 |
Screw thread | M3 | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Types of signaling | LED
Relay contact |
Operating voltage display | Green LED | Status display | "DC OK" LED green |
Note on status display | U | Insulation voltage input/output | 4 kV (type test)
3 kV (routine test) |
Product type | Power supply | Product family | MINI POWER |
MTBF (IEC 61709, SN 29500) | > 2789000 h (40 °C) | Article revision | 04 |
Protection class | II (in closed control cabinet) | Overvoltage category | III |
Degree of pollution | 2 | Width | 35 mm |
Height | 99 mm | Depth | 95 mm |
Installation distance right/left | 0 mm / 0 mm | Installation distance top/bottom | 50 mm / 50 mm |
Mounting type | DIN rail mounting | Assembly note | alignable: horizontally 0 mm, vertically 50 mm |
Mounting position | horizontal DIN rail NS 35, EN 60715 | With protective coating | no |
Housing material | Plastic | Type of housing | Polyamide PA, color: green |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Climatic class | 3K3 (in acc. with EN 60721) |
Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) | Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) |
Vibration (operation) | < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 2.3g, 90 min. | Temp code | T4A ≤ 70 °C |
Rail applications | EN 50121-4 | Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations | EN 50178/VDE 0160 (PELV) |
Standard – Limitation of mains harmonic currents | EN 61000-3-2 | Standard - Electrical safety | EN 60950-1/VDE 0805 (SELV) |
Standard – Safety extra-low voltage | EN 60950-1 (SELV) and EN 60204 (PELV)
EN 60204 (PELV) | Standard - Safe isolation | DIN VDE 0100-410 |
UL approvals | UL/C-UL listed UL 508
UL/C-UL Recognized UL 60950-1
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location) | SIL in accordance with IEC 61508 | 0 |
Performance level according to ISO 13849 | without | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC | EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 |
EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 | Noise emission | EN 55011 (EN 55022) |
Standards/regulations | EN 61000-4-2 | Housing | Level 3 |
Contact discharge | 6 kV | Discharge in air | 8 kV |
Comments | Criterion B | Standards/regulations | EN 61000-4-3 |
Frequency range | 80 MHz ... 2 GHz | Test field strength | 10 V/m |
Comments | Criterion A | Standards/regulations | EN 61000-4-4 |
Input | 4 kV (level 4 - asymmetrical: conductor to ground) | Output | 2 kV (level 3 - asymmetrical: conductor to ground) |
Signal | 1 kV (level 2 - asymmetrical: conductor to ground) | Comments | Criterion B |
Standards/regulations | EN 61000-4-5 | Input | 4 kV (level 4 - asymmetrical: conductor to ground)
2 kV (level 4 - symmetrical: conductor to conductor) |
Output | 0.5 kV (level 1 - asymmetrical: conductor to ground)
0.5 kV (level 1 - symmetrical: conductor to conductor) | Signal | 0.5 kV (level 1 - asymmetrical: conductor to ground) |
Comments | Criterion B | Standards/regulations | EN 61000-4-6 |
I/O/S | Level 3 - asymmetrical | Frequency range | 0.15 MHz ... 80 MHz |
Comments | Criterion A | Voltage | 10 V |
Standards/regulations | EN 61000-4-11 | Standards/regulations | EN 61000-6-3 |
Radio interference voltage in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential | Emitted radio interference in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
Specifications may be subject to change without notice
