Product Model

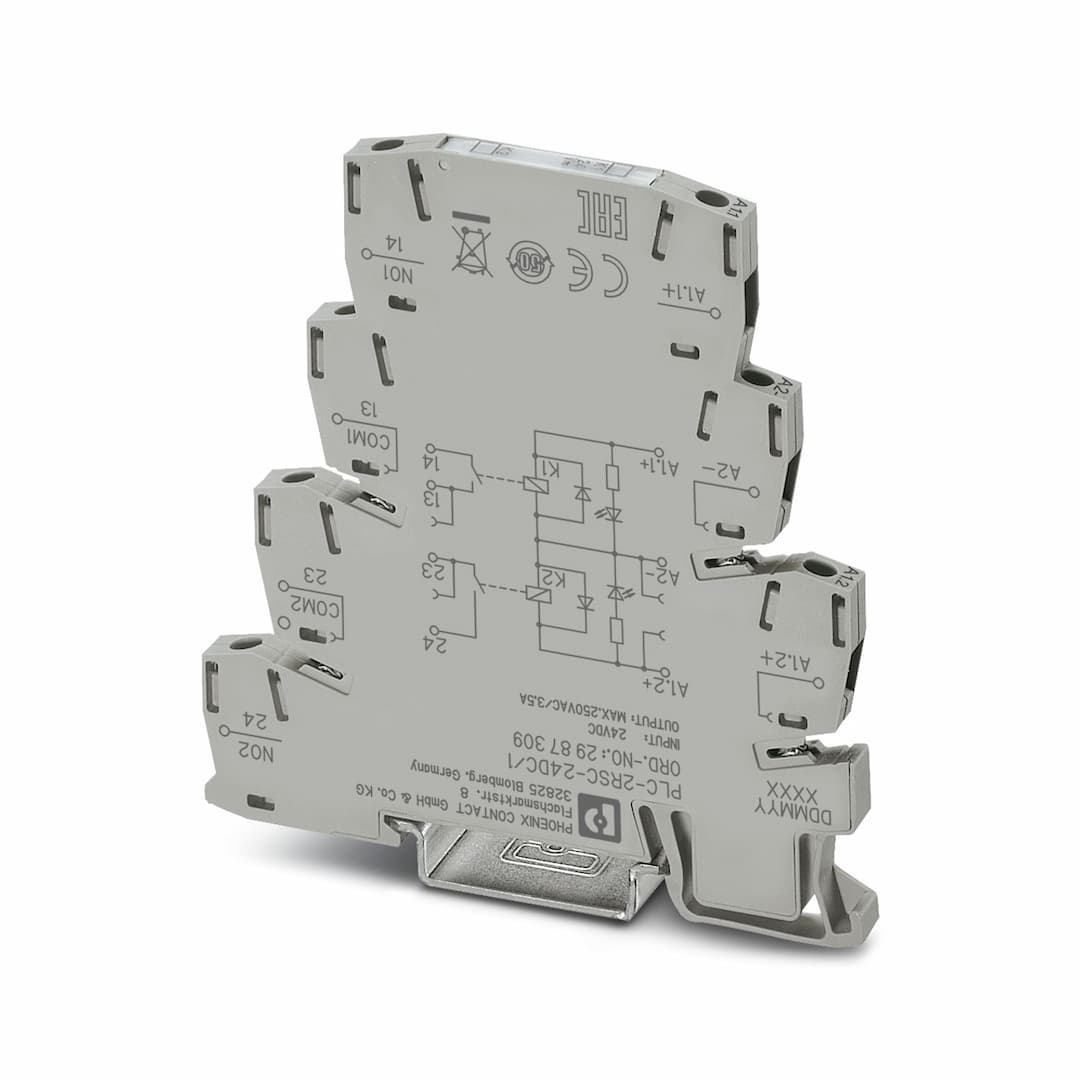

PLC-2RSC-24DC/ 1
Selling Points
- 1Compact 6.2 mm housing with 100% higher channel density than conventional relays.
- 2Meets DIN EN 50178 standards for safe isolation between coil and contacts.
- 3Operates at 24 V DC with a typical input current of 7 mA and response time of 4 ms.
- 4Supports screw, spring-cage, or Push-in connections for flexible mounting options.
- 5Compliant with IEC 60664 and EN 50178 standards, ensuring high reliability and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay Module | Product family | PLC-INTERFACE |
Application | two integrated relays | Operating mode | 100% operating factor |
Mechanical service life | 2x 10 | Date of last data management | 16.09.2024 |
Article revision | 08 | Insulation | Basic insulation |
Overvoltage category | III | Pollution degree | 2 |
Maximum power dissipation for nominal condition | 0.17 W | Test voltage (Winding/contact) | 3 kV AC (50 Hz, 1 min., winding/contact) |
Test voltage (Contact/contact) | 3 kV AC (50 Hz, 1 min., contact/contact) | Rated insulation voltage | 250 V AC |
Rated surge voltage | 4 kV | Nominal input voltage U | 24 V DC |
Input voltage range | 18 V DC ... 33.6 V DC (20 °C) | Drive and function | monostable |
Drive (polarity) | polarized | Typical input current at U | 7 mA |
Typical response time | 4 ms | Typical release time | 6 ms |
Protective circuit | Reverse polarity protection; Polarity protection diode
Freewheeling diode; Freewheeling diode | Operating voltage display | Yellow LED |
Contact switching type | 2 N/O contacts | Type of switch contact | Single contact |
Note regarding the switch contact | two integrated relays | Contact material | AgNi |
Maximum switching voltage | 250 V AC
30 V DC | Minimum switching voltage | 24 V AC/DC |
Limiting continuous current | 3.5 A | Maximum inrush current | 5 A |
Min. switching current | 5 mA | Interrupting rating (ohmic load) max. | 84 W (at 24 V DC)
24 W (at 48 V DC)
24 W (at 60 V DC)
31 W (at 110 V DC)
46 W (at 220 V DC)
875 VA (for 250 V AC) |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
Tightening torque | 0.45 Nm ... 0.55 Nm (Usually these terminal blocks must be supported during conductor connection (held by one hand, supported on the housing)) | Width | 6.2 mm |
Height | 80 mm | Depth | 94 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 (Housing) |
Degree of protection (Relay base) | IP20 (Relay base) | Ambient temperature (operation) | -20 °C ... 60 °C |
Ambient temperature (storage/transport) | -20 °C ... 60 °C | Certificate | CE-compliant |
Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Electromagnetic compatibility | Conformance with EMC directive |
Low Voltage Directive | Conformance with Low Voltage Directive | Standards/regulations | IEC 60664
EN 50178 |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
