Product Model

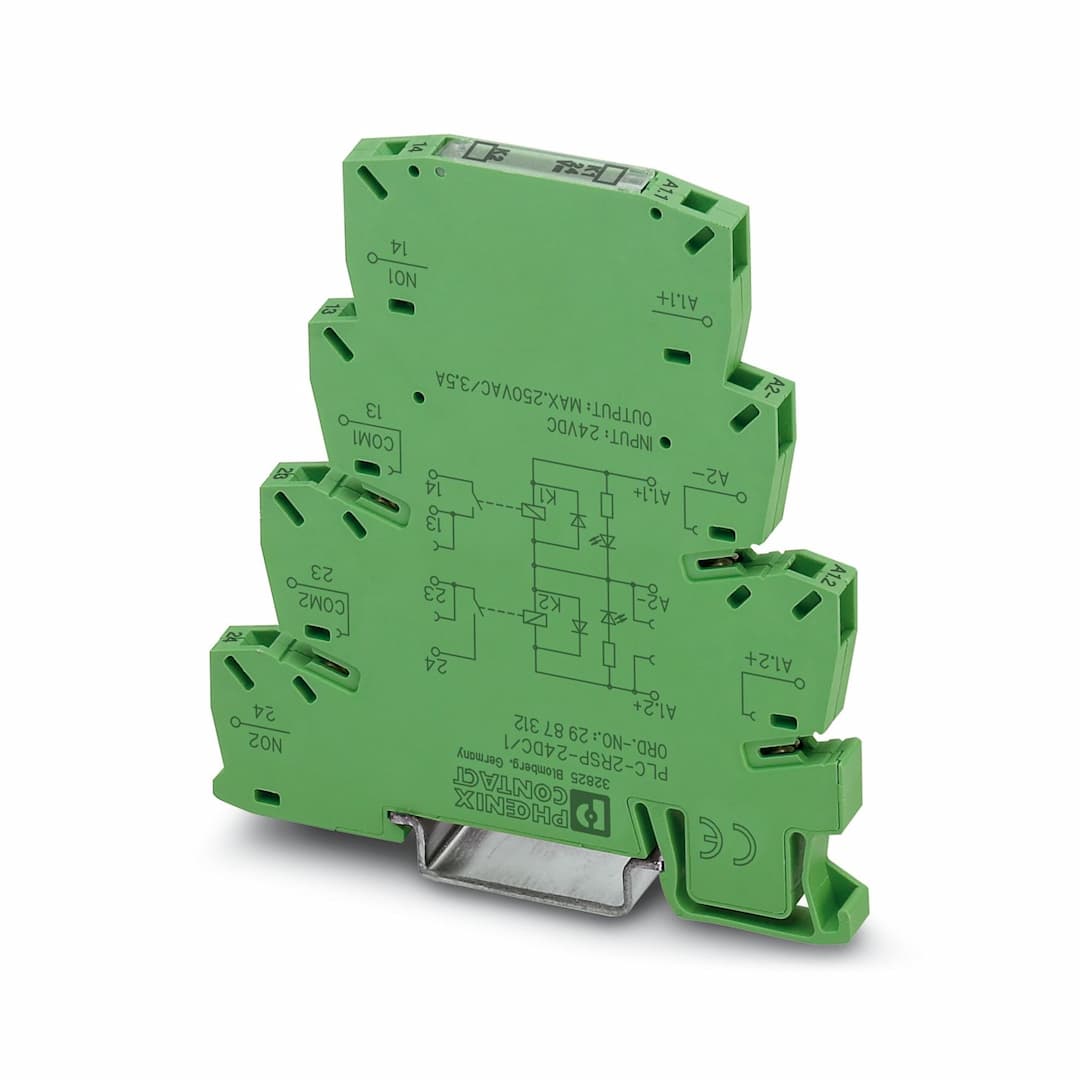

PLC-2RSP-24DC/ 1
Selling Points
- 1High-Density Design: Two switching channels in a compact 6.2 mm housing.
- 2Safe Isolation: Meets DIN EN 50178 standards for safe isolation between coil and contacts.
- 3Robust Technical Specifications: 2 N/O contacts, 24 V DC nominal input voltage, and 7 mA typical input current.
- 4Integrated Protective Circuits: Includes reverse polarity protection, polarity protection diode, and free-wheeling diode.
- 5Durable Construction: AgNi contact material for high switching reliability and long lifespan.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay Module | Product family | PLC-INTERFACE |
Application | two integrated relays | Operating mode | 100% operating factor |
Mechanical service life | 2x 10 | Date of last data management | 02.05.2024 |
Article revision | 05 | Insulation | Basic insulation |
Overvoltage category | III | Pollution degree | 2 |
Maximum power dissipation for nominal condition | 0.17 W | Test voltage (Winding/contact) | 3 kV AC (50 Hz, 1 min., winding/contact) |
Test voltage (Contact/contact) | 3 kV AC (50 Hz, 1 min., contact/contact) | Rated insulation voltage | 250 V AC |
Rated surge voltage | 4 kV | Nominal input voltage U | 24 V DC |
Drive and function | monostable | Typical input current at U | 7 mA |
Typical response time | 4 ms | Typical release time | 6 ms |
Protective circuit | Reverse polarity protection; Polarity protection diode
Freewheeling diode; Freewheeling diode | Operating voltage display | Yellow LED |
Contact switching type | 2 N/O contacts (2 relays with 1 N/O contact) | Type of switch contact | Single contact |
Note regarding the switch contact | 2x | Contact material | AgNi |
Maximum switching voltage | 250 V AC
30 V DC | Minimum switching voltage | 24 V AC/DC |
Limiting continuous current | 3.5 A | Min. switching current | 5 mA |
Interrupting rating (ohmic load) max. | 84 W (at 24 V DC)
24 W (at 48 V DC)
24 W (at 60 V DC)
31 W (at 110 V DC)
46 W (at 220 V DC)
875 VA (for 250 V AC) | Connection method | Spring-cage connection |
Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
Connection method | Spring-cage connection | Stripping length | 8 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
Conductor cross section AWG | 26 ... 14 | Width | 6.2 mm |
Height | 80 mm | Depth | 86 mm |
Color | green (RAL 6021) | Flammability rating according to UL 94 | V0 (Housing) |
Degree of protection (Relay base) | IP20 (Relay base) | Ambient temperature (operation) | -20 °C ... 60 °C |
Ambient temperature (storage/transport) | -20 °C ... 60 °C | Standards/regulations | IEC 60664
EN 50178 |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
