Product Model

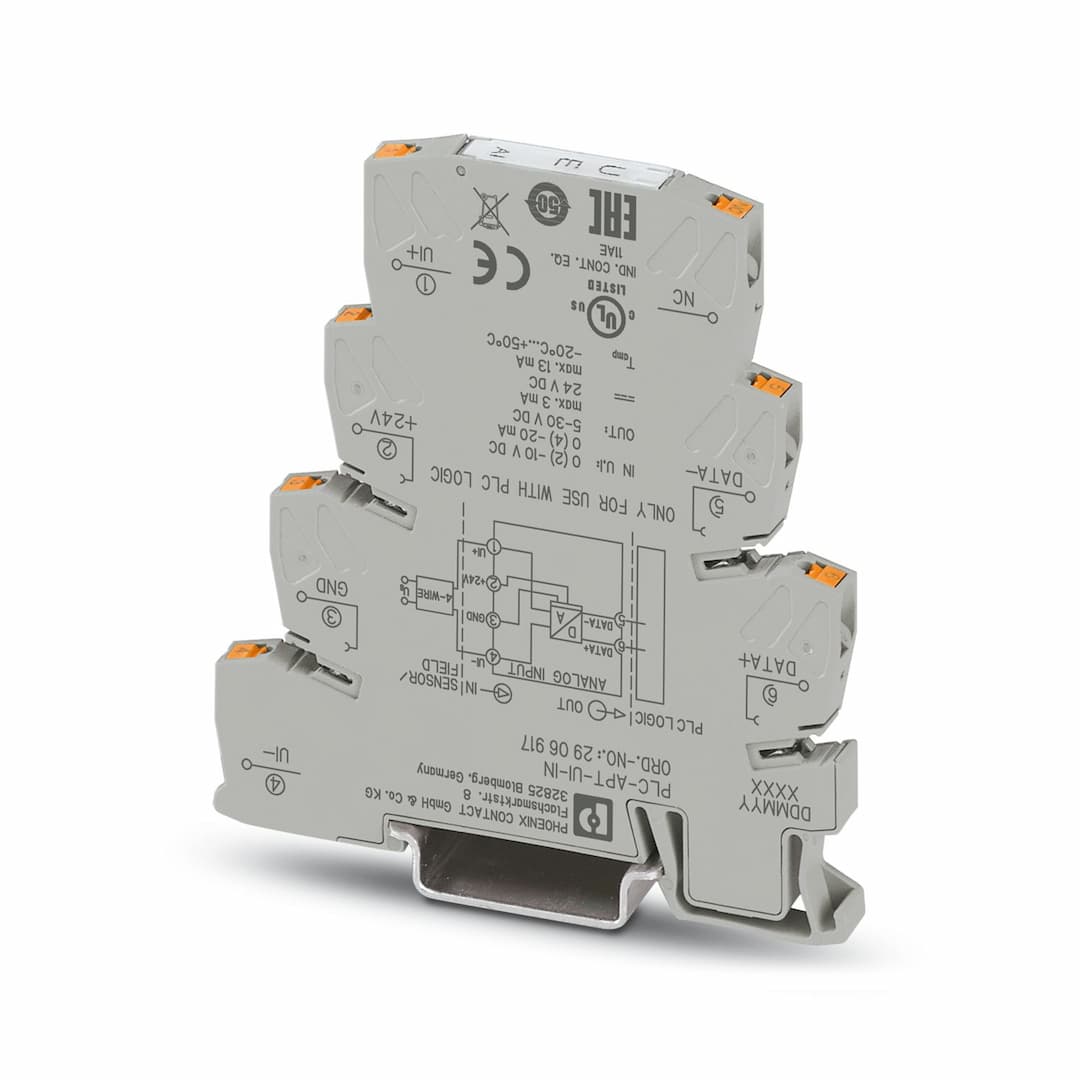

PLC-APT-UI-IN
Selling Points
- 1Supports multiple signal configurations (4 mA to 20 mA, 0 mA to 20 mA, 0 V to 10 V) via DIP switch.
- 2Basic insulation with air clearances and creepage distances, ensuring reliable operation in harsh environments.
- 3Push-in connections simplify the installation process, reducing setup time and effort.
- 4Suitable for various applications requiring analog current input, including industrial control systems.
- 5Meets CE and UL 508 Listed standards, ensuring compliance with safety regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. | Product type | Extension module |
Product family | PLC logic | Operating mode | 100% operating factor |
Article revision | 04 | Insulation | Basic insulation |
Overvoltage category | III | Pollution degree | 2 |
Rated insulation voltage | 50 V | Rated surge voltage | 0.5 kV |
Rated control circuit supply voltage U | 24 V DC | Rated control supply voltage range with reference to U | 0.8 ... 1.1 |
Rated control supply current I | 13 mA | Protective circuit | Reverse polarity protection
Surge protection |
Number of inputs | 1 | Current input signal | 0 mA ... 20 mA
4 mA ... 20 mA |
Input resistance current input | 40 Ω | Maximum temperature coefficient | 0.01 %/K |
Maximum transmission error | 1 % | Surge voltage protection | > 33 V |
Resolution | 10 bit (scaled to 0 to 1000) | Number of inputs | 1 |
Voltage input signal | 0 V ... 10 V
2 V ... 10 V | Input resistance of voltage input | > 120 kΩ |
Maximum temperature coefficient | 0.01 %/K | Maximum transmission error | 1 % |
Surge voltage protection | > 33 V | Resolution | 10 bit (scaled to 0 to 1000) |
Output name | Digital output | Switching voltage range | 5 V DC ... 30 V DC |
Switching current | ≤ 3 mA | Connection method | Push-in connection |
Stripping length | 10 mm | Number of connections | 4 |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
Conductor cross section AWG | 26 ... 14 | Operating voltage display | Green LED |
Error indication | Red LED | Width | 6.2 mm |
Height | 80 mm | Depth | 94 mm |
Color | gray (RAL 7042) | Degree of protection | IP20 |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Certificate | CE-compliant | Identification | UL 508 Listed |
Standards/regulations | DIN EN 50178 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
