Product Model

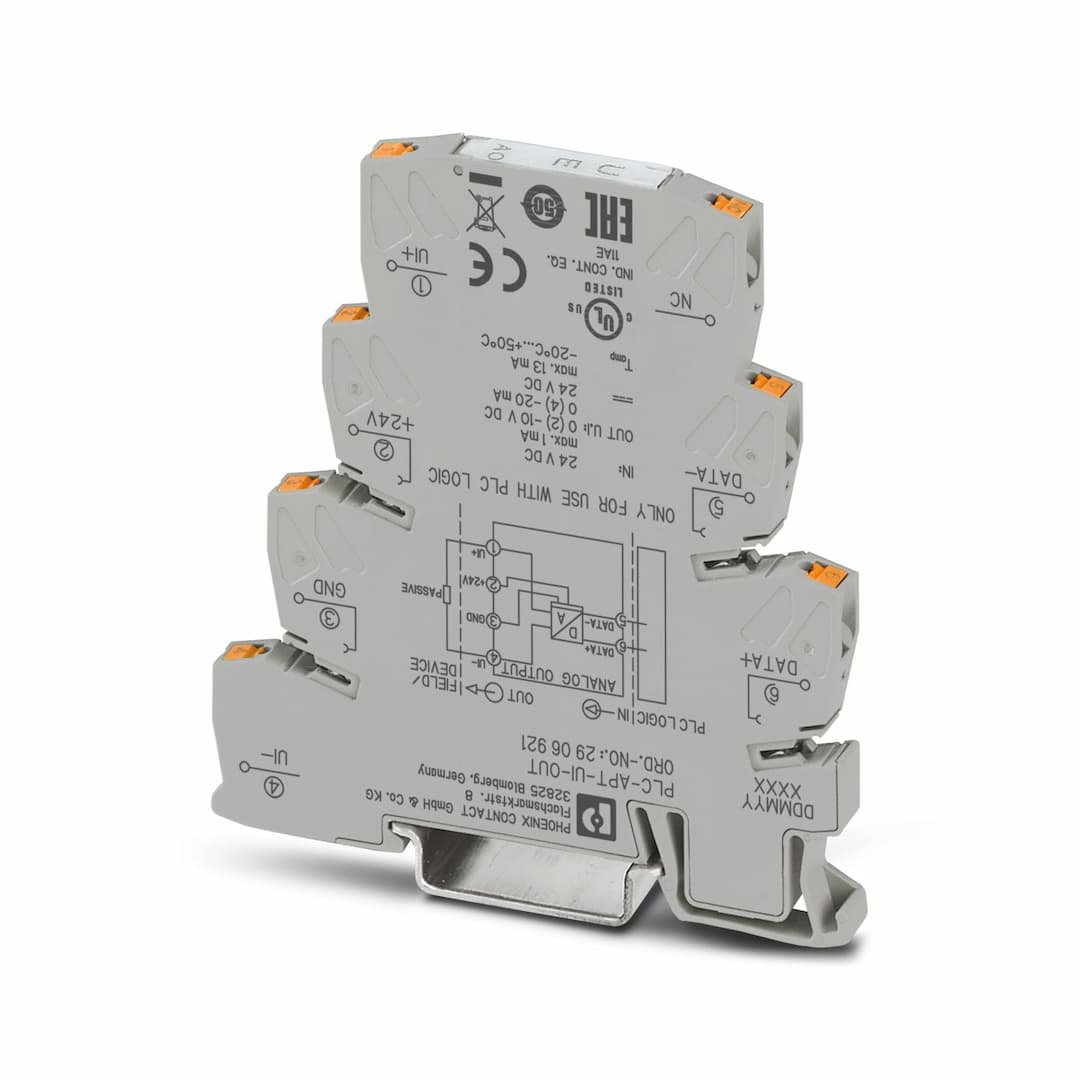

PLC-APT-UI-OUT
Selling Points
- 1Analog Output Module for PLC Logic: Designed for Generation 2 PLC logic modules, this module offers single-channel analog output.
- 2Configurable via DIP Switch: Easily configure the module using DIP switches for precise signal settings.
- 3Surge Protection and Safety: Equipped with surge protection and basic insulation, ensuring reliable operation in harsh environments.
- 4Versatile Signal Types: Supports 4 mA to 20 mA, 0 mA to 20 mA, 0 V to 10 V, and 2 V to 10 V signal types.
- 5Push-in Connection for Easy Installation: Features push-in connections for quick and secure wiring setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. | Product type | Extension module |
Product family | PLC logic | Operating mode | 100% operating factor |
Article revision | 04 | Insulation | Basic insulation |
Overvoltage category | III | Pollution degree | 2 |
Rated insulation voltage | 50 V | Rated surge voltage | 0.5 kV |
Rated control circuit supply voltage U | 24 V DC | Rated control supply voltage range with reference to U | 0.8 ... 1.1 |
Rated control supply current I | ≤ 28 mA | Protective circuit | Reverse polarity protection
Surge protection |
Rated actuating voltage U | 24 V DC | Rated actuating current I | ≤ 1 mA |
Output name | Analog voltage output | Number of outputs | 1 |
Voltage output signal | 0 V ... 10 V
2 V ... 10 V | Maximum output voltage | 12.3 V |
Ripple | < 20 mV | Load/output load voltage output | 10 kΩ |
Surge voltage protection | > 33 V | Maximum transmission error | 1 % |
Resolution | 10 bit (scaled to 0 to 1000) | Protective circuit | Surge protection |
Output name | Analog output for current | Number of outputs | 1 |
Current output signal | 0 mA ... 20 mA
4 mA ... 20 mA | Maximum output current | 24.6 mA |
Load/output load current output | 500 Ω (20 mA) | Surge voltage protection | > 33 V |
Maximum transmission error | 1 % | Resolution | 10 bit |
Protective circuit | Surge protection | Connection method | Push-in connection |
Stripping length | 10 mm | Number of connections | 4 |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
Conductor cross section AWG | 26 ... 14 | Operating voltage display | Green LED |
Error indication | Red LED | Width | 6.2 mm |
Height | 80 mm | Depth | 94 mm |
Color | gray (RAL 7042) | Degree of protection | IP20 |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Certificate | CE-compliant | Identification | UL 508 Listed |
Standards/regulations | DIN EN 50178 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
