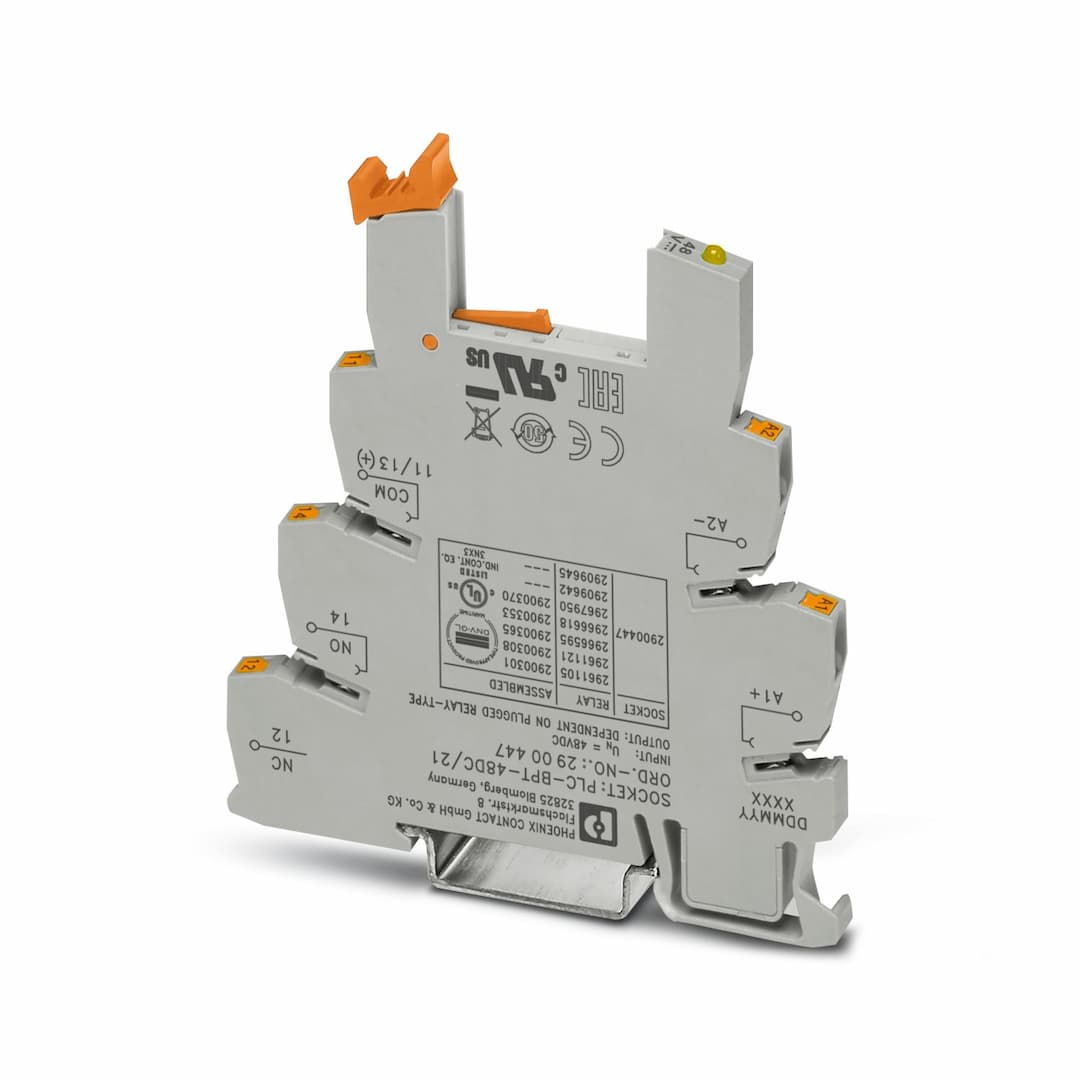

Product Model
PLC-BPIT- 48DC/21
Selling Points
- 114 mm width, 80 mm height, and 94 mm depth for easy DIN rail mounting.
- 2WEEE/RoHS-compliant and designed for 100% operating factor.
- 3Single contact, 1-PDT with AgSnO contact material for reliable switching.
- 4Protection against polarity reversal and free-wheeling diode for secure operation.
- 5Ambient temperature from -40°C to 60°C and mechanical service life of 2 x 10^7 cycles.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Notes on operation | Separating plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or FBST 500.... | EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Product type | Relay socket | Product family | PLC-INTERFACE |
Application | Universal | Set comprises | 2900301 PLC-RPT- 48DC/21
2900308 PLC-RPT- 48DC/21AU
2900353 PLC-OPT- 48DC/ 48DC/100
2900365 PLC-OPT- 48DC/ 24DC/2
2900370 PLC-OPT- 48DC/230AC/1 |
Operating mode | 100% operating factor | Article revision | 04 |
Protective circuit | Damping diode, polarity protection diode | Nominal input voltage U | 48 V DC |
Protective circuit | Freewheeling diode | Nominal input voltage U | 48 V DC |
Connection method | Push-in connection | Stripping length | 10 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) |
Conductor cross section AWG | 26 ... 14 | Status display | LED |
Width | 6.2 mm | Height | 80 mm |
Depth | 94 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V0 (Housing) | Ambient temperature (operation) | -40 °C ... 60 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Certificate | CE-compliant |
Certificate | UKCA-compliant | Certificate | TAE0000196 |
Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Temperature | D |
Humidity | A | Vibration | B/C |
EMC | B | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Electromagnetic compatibility | Conformance with EMC directive | Low Voltage Directive | Conformance with Low Voltage Directive |
Mounting type | DIN rail mounting | Mounting position | any |
Specifications may be subject to change without notice
