Product Model

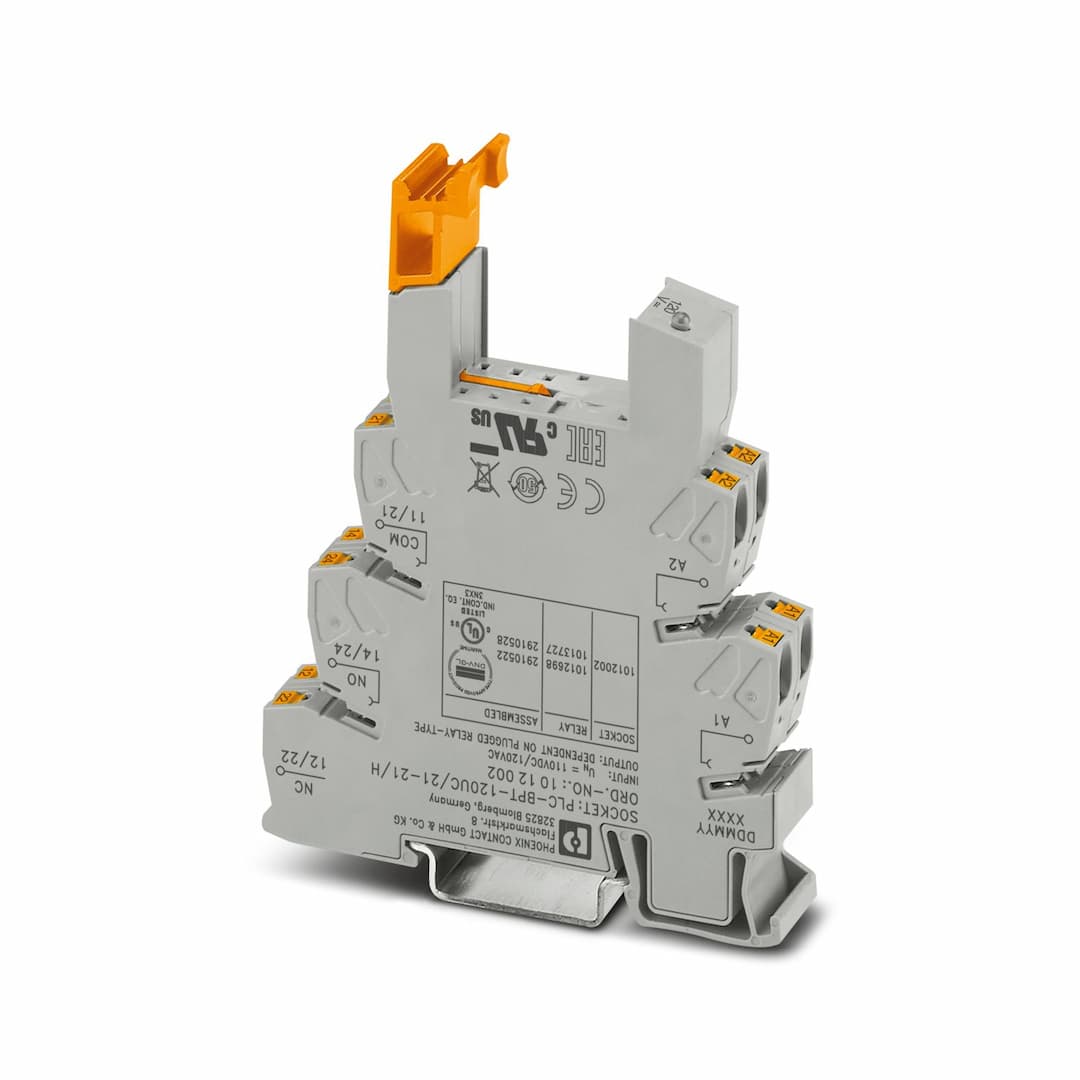

PLC-BPT-120UC/21-21/H
Selling Points
- 1Efficient Push-in Connection: Quick and easy connection method for reliable operation.
- 2DIN Rail Mounting: Flexible mounting options for any orientation, ideal for space-constrained installations.
- 3Compact Dimensions: 6.2 mm width and 80 mm height, perfect for compact industrial setups.
- 4Wide Conductor Compatibility: Supports conductor cross sections from 0.14 mm² to 2.5 mm², rigid or flexible.
- 5High-Temperature Operation: Operates efficiently within -40 °C to 55 °C ambient temperatures.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay socket | Product family | PLC-INTERFACE |
Application | Universal | Operating mode | 100% operating factor |
Article revision | 02 | Nominal input voltage U | 120 V AC/DC |
Protective circuit | Bridge rectifier | Nominal input voltage U | 120 V AC/DC |
Connection method | Push-in connection | Stripping length | 10 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) |
Conductor cross section AWG | 26 ... 14 | Status display | LED |
Width | 14 mm | Height | 80 mm |
Depth | 104 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V0 (Housing) | Ambient temperature (operation) | -40 °C ... 60 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Certificate | CE-compliant |
Certificate | UKCA-compliant | Certificate | TAE0000196 |
Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Temperature | D |
Humidity | A | Vibration | B/C |
EMC | B | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Electromagnetic compatibility | Conformance with EMC directive | Low Voltage Directive | Conformance with Low Voltage Directive |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
