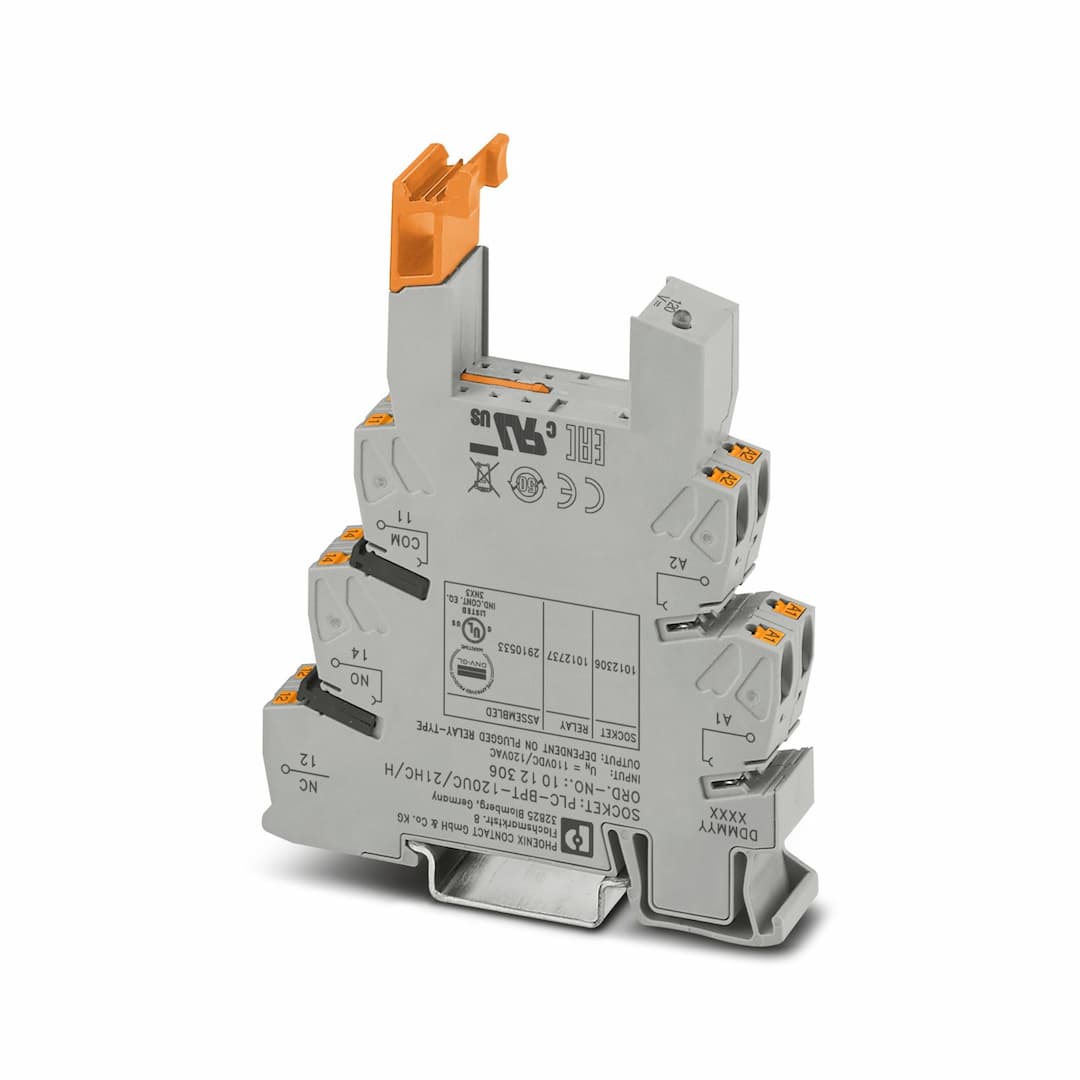

Phoenix Contact PLC-BPT-120UC/21HC/H Relay Base

Selling Points

1Universal Compatibility: Suitable for various industrial applications with a universal operating mode.
2Push-in Connection: Easy and secure connection method with a stripping length of 10 mm.
3LED Status Display: Visual indication of the relay's status through an integrated LED.
4Durable Construction: Built with gray (RAL 7042) housing and a flammability rating of V0 according to UL 94.
5Comprehensive Certifications: CE-compliant, UKCA-compliant, and TAE0000196 shipbuilding approval certified.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Product type	Relay socket	Product family	PLC-INTERFACE
Application	High continuous currents	Operating mode	100% operating factor
Article revision	02	Protective circuit	Bridge rectifier
Nominal input voltage U	120 V AC/DC	Protective circuit	Bridge rectifier
Nominal input voltage U	120 V AC/DC	Connection method	Push-in connection
Stripping length	10 mm	Conductor cross section rigid	0.14 mm² ... 2.5 mm²
Conductor cross section flexible	0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1 mm² (TWIN ferrule)	Conductor cross section AWG	26 ... 14
Status display	LED	Width	14 mm
Height	80 mm	Depth	104 mm
Color	gray (RAL 7042)	Flammability rating according to UL 94	V0 (Housing)
Ambient temperature (operation)	-40 °C ... 55 °C	Ambient temperature (storage/transport)	-40 °C ... 85 °C
Certificate	CE-compliant	Certificate	UKCA-compliant
Certificate	TAE0000196	Identification	ISA-S71.04. G3 Harsh Group EN 60068-2-60
Temperature	D	Humidity	A
Vibration	B/C	EMC	B
Enclosure	Required protection according to the Rules shall be provided upon installation on board	Electromagnetic compatibility	Conformance with EMC directive
Low Voltage Directive	Conformance with Low Voltage Directive	Mounting type	DIN rail mounting
Assembly note	in rows with zero spacing	Mounting position	any

Specifications may be subject to change without notice
