Product Model

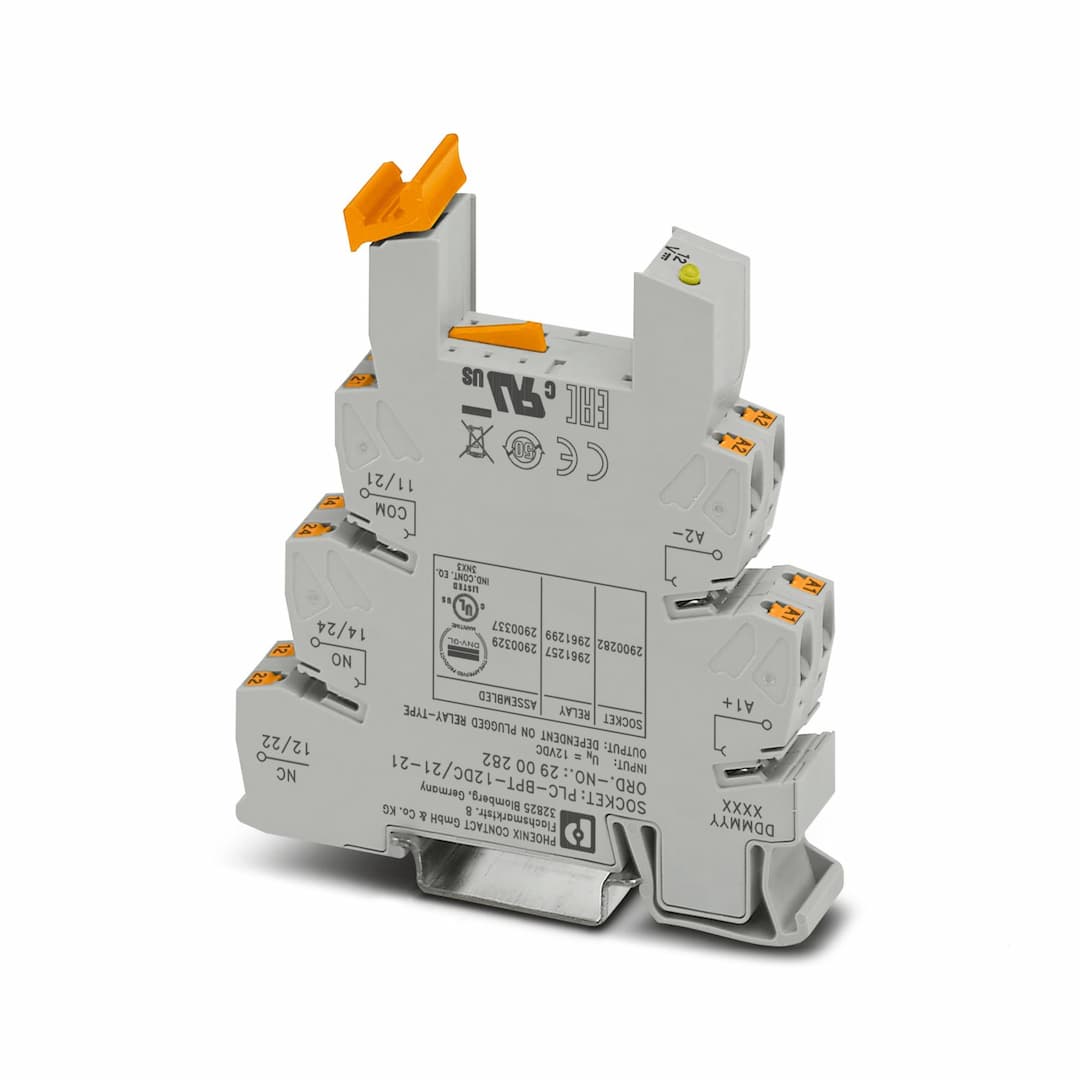

PLC-BPT- 12DC/21-21
Selling Points
- 114 mm wide, 80 mm high, and 94 mm deep for easy integration.
- 2Simplify wiring with push-in connections for solid and flexible conductors.
- 3Compatible with DIN rail NS 35/7,5 for versatile installation options.
- 4Meets EMC class A standards for reliable operation in various environments.
- 5Made in Germany with high-quality materials for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Relay socket |
Product family | PLC-INTERFACE | Application | Universal |
Set comprises | 2900329 PLC-RPT- 12DC/21-21
2900337 PLC-RPT- 12DC/21-21AU | Article revision | 07 |
Nominal input voltage U | 12 V DC | Protective circuit | Freewheeling diode |
Nominal input voltage U | 12 V DC | Connection method | Push-in connection |
Stripping length | 10 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
Width | 14 mm | Height | 80 mm |
Depth | 94 mm | Ambient temperature (operation) | -40 °C ... 60 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Certificate | CE-compliant |
Certificate | UKCA-compliant | Certificate | TAE0000196 |
Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Temperature | D |
Humidity | A | Vibration | B/C |
EMC | B | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Electromagnetic compatibility | Conformance with EMC directive | Low Voltage Directive | Conformance with Low Voltage Directive |
Mounting type | DIN rail mounting | Mounting position | any |
Specifications may be subject to change without notice
