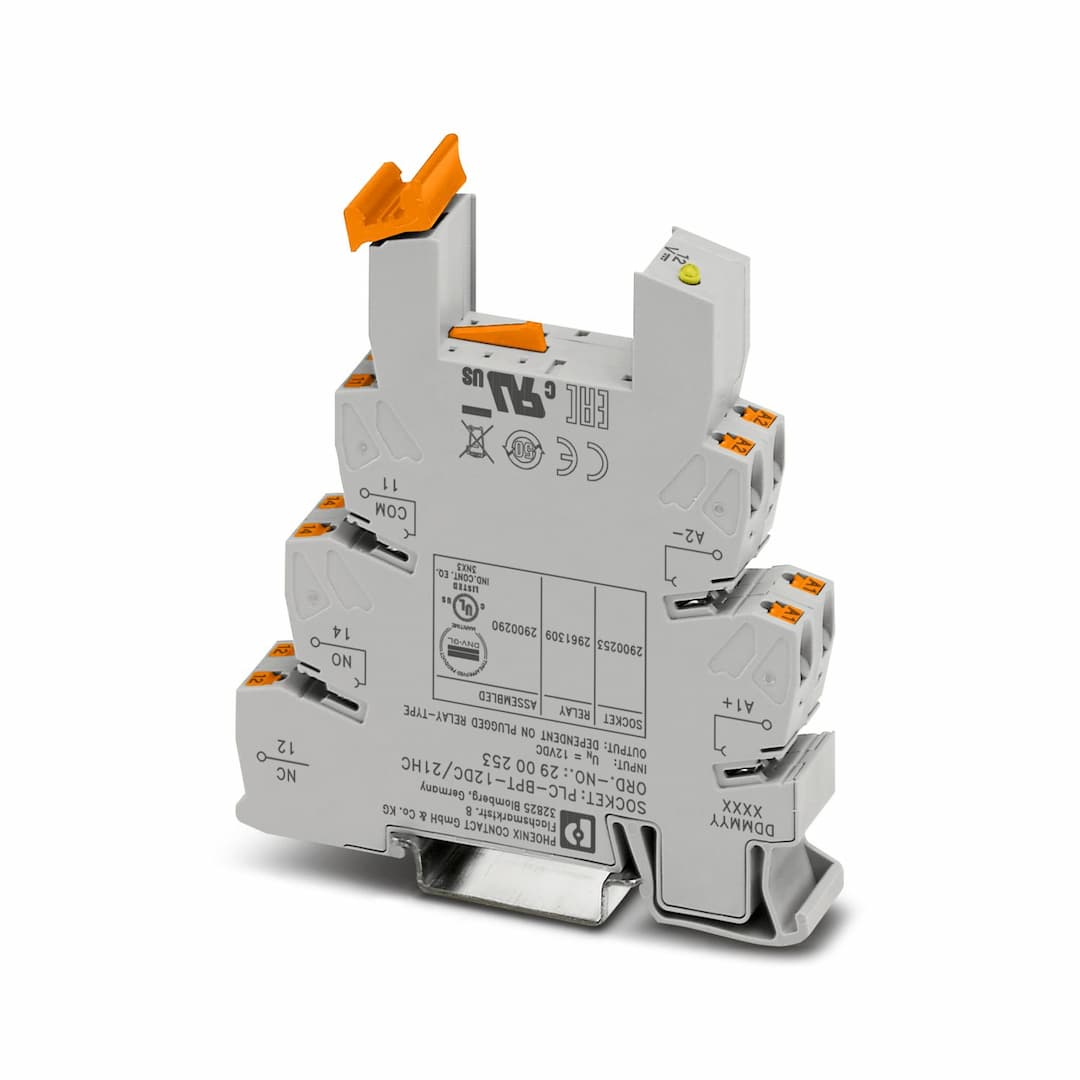

Product Model
PLC-BPT- 12DC/21HC
Selling Points
- 1High-Current Capability: Handles high continuous currents with push-in connection.
- 2Versatile Conductor Options: Supports solid and flexible conductors from 0.14 mm² to 2.5 mm².
- 3DIN Rail Mounting: Designed for easy mounting on DIN rail NS 35/7,5.
- 4EMC Class A Compliance: Meets EMC class A standards for reliable operation.
- 5Wide Ambient Temperature Range: Operates from -40 °C to 60 °C and stores from -40 °C to 85 °C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Relay socket |
Product family | PLC-INTERFACE | Application | High continuous currents |
Set comprises | 2900290 PLC-RPT- 12DC/21HC | Article revision | 07 |
Nominal input voltage U | 12 V DC | Protective circuit | Freewheeling diode |
Nominal input voltage U | 12 V DC | Connection method | Push-in connection |
Stripping length | 10 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
Width | 14 mm | Height | 80 mm |
Depth | 94 mm | Ambient temperature (operation) | -40 °C ... 60 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Certificate | CE-compliant |
Certificate | UKCA-compliant | Certificate | TAE0000196 |
Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Temperature | D |
Humidity | A | Vibration | B/C |
EMC | B | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Electromagnetic compatibility | Conformance with EMC directive | Low Voltage Directive | Conformance with Low Voltage Directive |
Mounting type | DIN rail mounting | Mounting position | any |
Specifications may be subject to change without notice
