Product Model

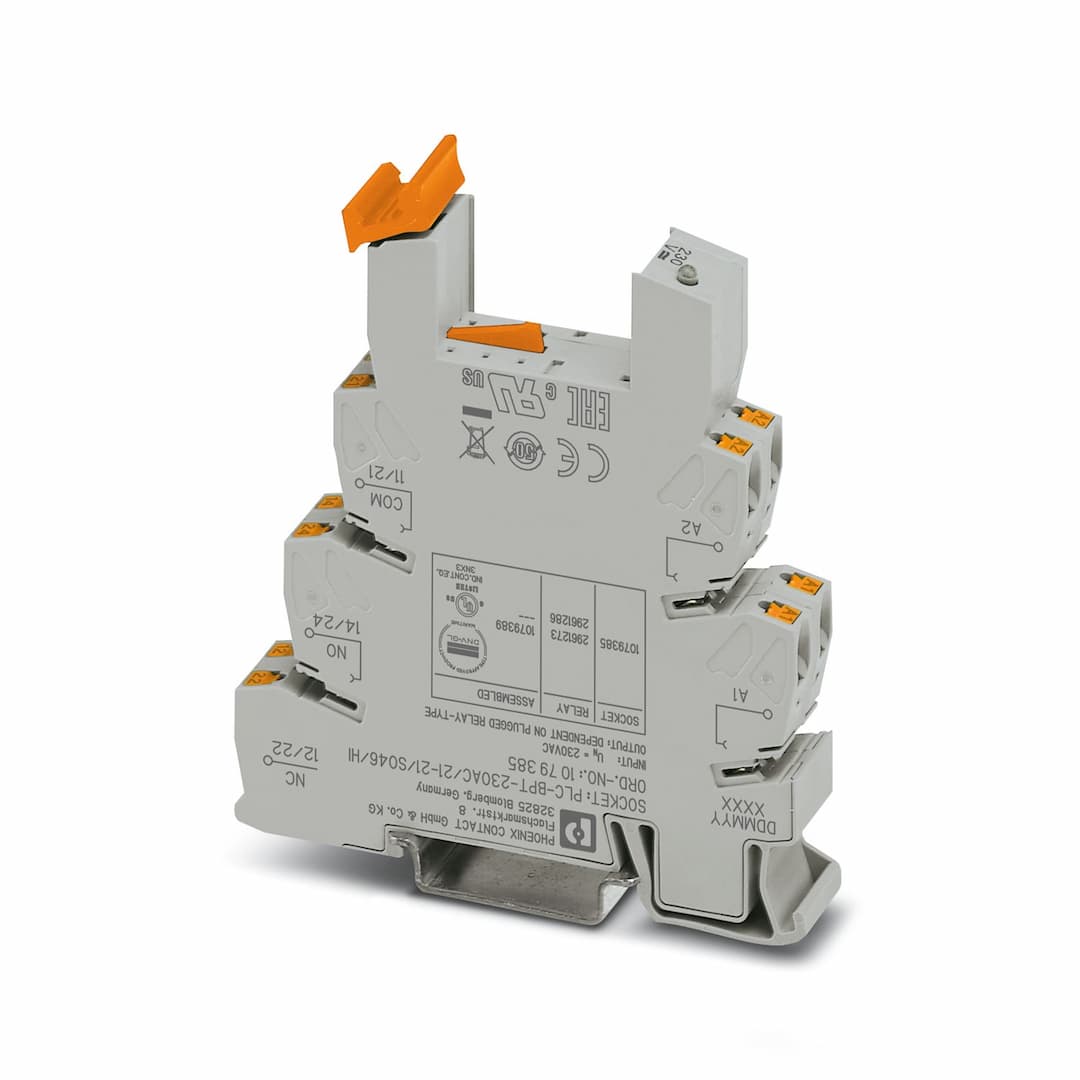

PLC-BPT-230AC/21-21/SO46/HI
Selling Points
- 1Designed to handle interference voltages up to 190 V AC.
- 2Mounts effortlessly on DIN rail NS 35/7,5.
- 3Features a bridge rectifier for protection and a mechanical service life of 3x 107 cycles.
- 4Operates at a nominal input voltage of 230 V AC with a typical response time of 7 ms.
- 5Equipped with push-in connection and suitable for various conductor cross sections (0.14 mm² to 2.5 mm²).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay socket | Product family | PLC-INTERFACE |
Application | Filter to prevent interference | Operating mode | 100% operating factor |
Article revision | 02 | Protective circuit | Bridge rectifier; Bridge rectifier
RCZ filter; RCZ filter |
Nominal input voltage U | 230 V AC | Input voltage range in reference to U | 0.83 ... 1.1 (at 20 °C) |
Typical response time | 7 ms | Typical release time | 10 ms |
Nominal input voltage U | 230 V AC | Connection method | Push-in connection |
Stripping length | 10 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
Status display | LED | Width | 14 mm |
Height | 80 mm | Depth | 94 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 (Housing) |
Ambient temperature (operation) | -40 °C ... 55 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Certificate | CE-compliant | Certificate | UKCA-compliant |
Certificate | TAE0000196 | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Temperature | D | Humidity | A |
Vibration | B/C | EMC | B |
Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
Low Voltage Directive | Conformance with Low Voltage Directive | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
