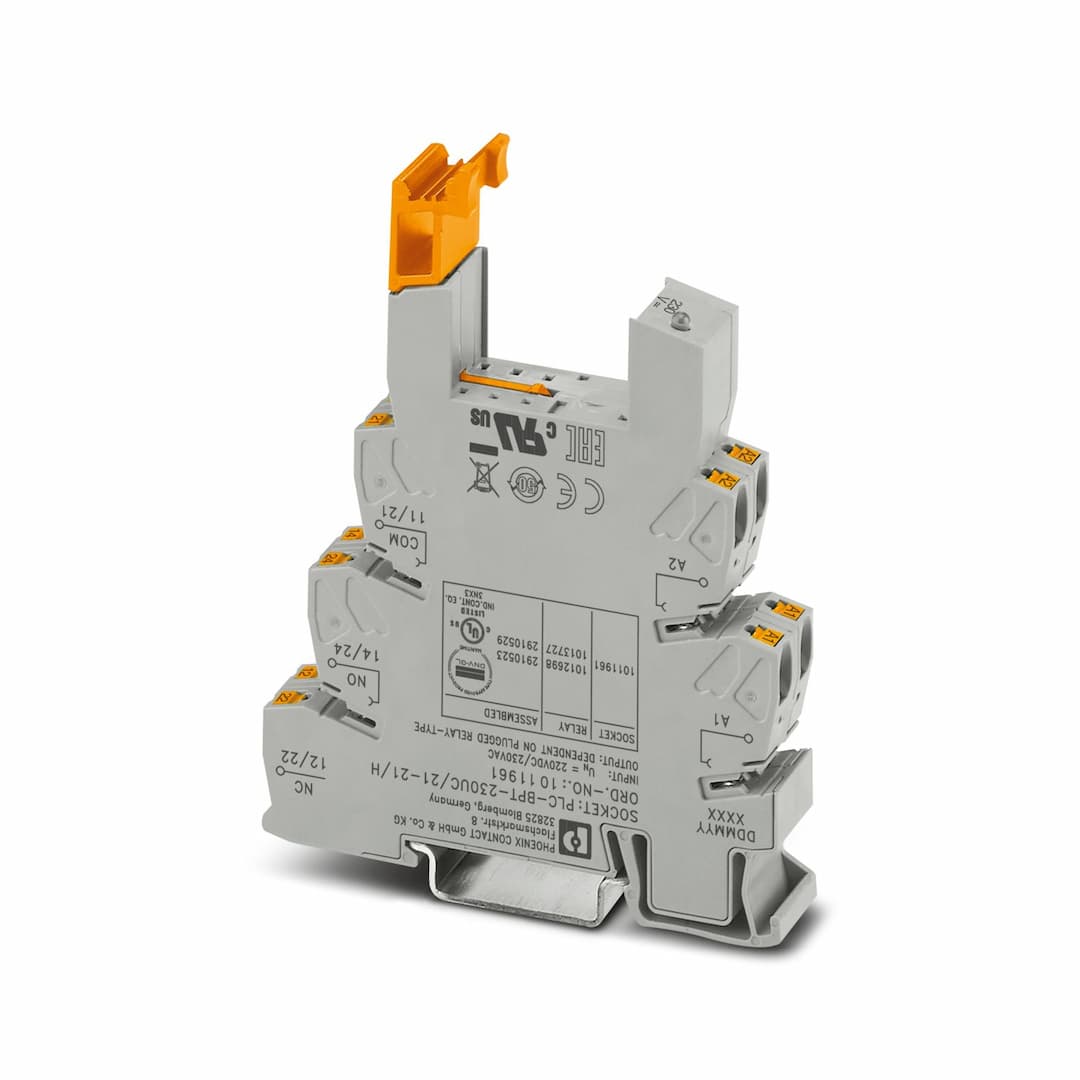

Phoenix PLC-BPT-230UC/21-21/H Relay Terminal Block

Selling Points

1Reliable Push-in Connection: Easy and secure connection method for conductors.
2DIN Rail Mounting: Flexible mounting options for versatile industrial applications.
3Compact Design: Suitable for space-constrained installations with dimensions of 14 mm width and 80 mm height.
4Robust Construction: Gray (RAL 7042) housing ensures a professional appearance and durability.
5Wide Temperature Range: Operates efficiently between -40 °C and 55 °C, both during operation and storage.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Product type	Relay socket	Product family	PLC-INTERFACE
Application	Universal	Operating mode	100% operating factor
Article revision	02	Nominal input voltage U	230 V AC/DC
Protective circuit	Bridge rectifier	Nominal input voltage U	230 V AC/DC
Connection method	Push-in connection	Stripping length	10 mm
Conductor cross section rigid	0.14 mm² ... 2.5 mm²	Conductor cross section flexible	0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1 mm² (TWIN ferrule)
Conductor cross section AWG	26 ... 14	Status display	LED
Width	14 mm	Height	80 mm
Depth	104 mm	Color	gray (RAL 7042)
Flammability rating according to UL 94	V0 (Housing)	Ambient temperature (operation)	-40 °C ... 55 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C	Certificate	CE-compliant
Certificate	UKCA-compliant	Certificate	TAE0000196
Identification	ISA-S71.04. G3 Harsh Group EN 60068-2-60	Temperature	D
Humidity	A	Vibration	B/C
EMC	B	Enclosure	Required protection according to the Rules shall be provided upon installation on board
Electromagnetic compatibility	Conformance with EMC directive	Low Voltage Directive	Conformance with Low Voltage Directive
Mounting type	DIN rail mounting	Assembly note	in rows with zero spacing
Mounting position	any

Specifications may be subject to change without notice
