Product Model

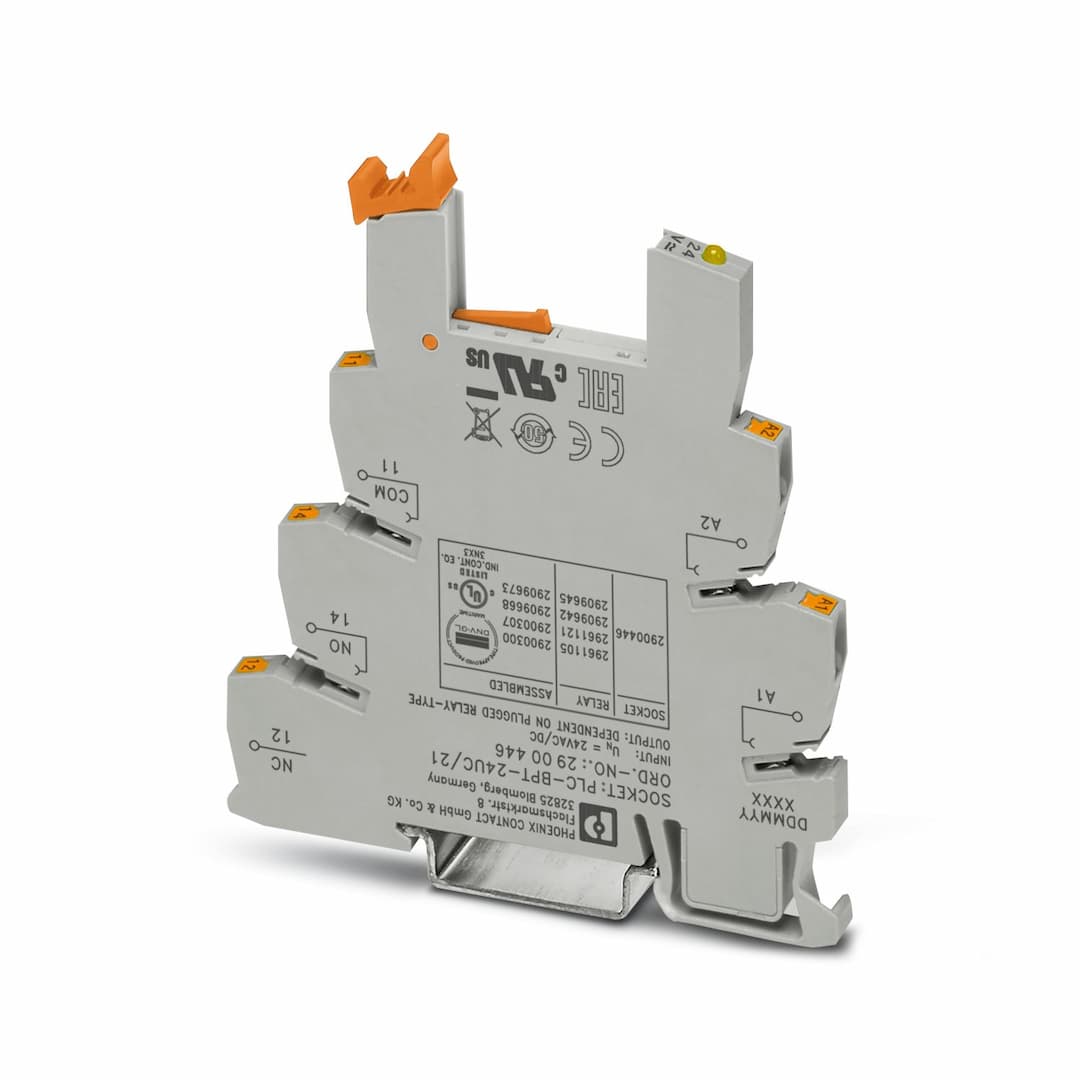

PLC-BPT- 24UC/21
Selling Points
- 1Universal Compatibility: Suitable for various applications with a universal operating mode.
- 2100% Operating Factor: Ensures reliable performance in demanding environments.
- 3Robust Push-in Connections: Secure and easy-to-use connections with stripping length of 10 mm.
- 4LED Status Display: Visual indication of status through an integrated LED.
- 5DIN Rail Mounting: Conveniently mounts on DIN rail NS 35/7,5 for easy installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Notes on operation | Separating plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or FBST 500.... | EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Product type | Relay socket | Product family | PLC-INTERFACE |
Application | Universal | Operating mode | 100% operating factor |
Article revision | 05 | Overvoltage category | II |
Pollution degree | 3 | Protective circuit | Bridge rectifier |
Nominal input voltage U | 24 V AC/DC
The nominal voltage of the plug-on electromechanical relay or solid-state relay (see necessary accessories) deviates from the nominal input voltage of the base with integrated upstream circuit | Protective circuit | Bridge rectifier |
Nominal input voltage U | 24 V AC/DC
The nominal voltage of the plug-on electromechanical relay or solid-state relay (see necessary accessories) deviates from the nominal input voltage of the base with integrated upstream circuit | Connection method | Push-in connection |
Stripping length | 10 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
Status display | LED | Width | 6.2 mm |
Height | 80 mm | Depth | 94 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 (Housing) |
Ambient temperature (operation) | -40 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Certificate | CE-compliant | Certificate | UKCA-compliant |
Certificate | TAE0000196 | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Temperature | D | Humidity | A |
Vibration | B/C | EMC | B |
Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
Low Voltage Directive | Conformance with Low Voltage Directive | Mounting type | DIN rail mounting |
Mounting position | any |
Specifications may be subject to change without notice
