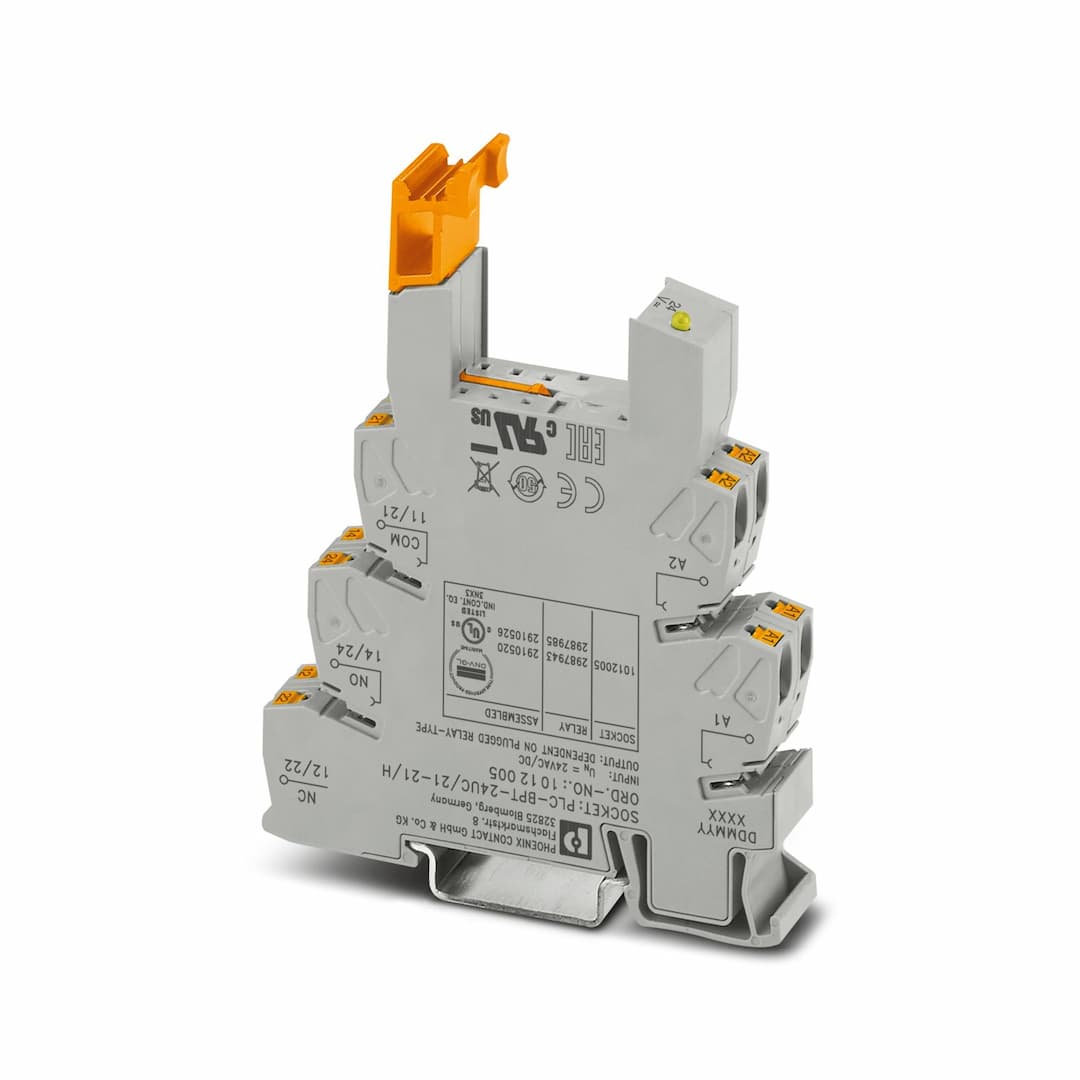

Phoenix Contact PLC-BPT-24UC/21-21/H Relay Socket

Selling Points

1Universal Compatibility: Designed for versatile industrial applications.
2Efficient Push-in Connection: Accommodates conductor cross sections of 0.14 mm² to 2.5 mm².
3Compact Dimensions: Width of 14 mm and height of 80 mm for space-constrained installations.
4Reliable Bridge Rectifier Protection: Ensures safe operation with a bridge rectifier circuit.
5Durable Construction: Gray (RAL 7042) housing with a flammability rating of V0 (Housing) according to UL 94.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Product type	Relay socket	Product family	PLC-INTERFACE
Application	Universal	Operating mode	100% operating factor
Article revision	02	Nominal input voltage U	24 V AC/DC
Protective circuit	Bridge rectifier	Nominal input voltage U	24 V AC/DC
Connection method	Push-in connection	Stripping length	10 mm
Conductor cross section rigid	0.14 mm² ... 2.5 mm²	Conductor cross section flexible	0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1 mm² (TWIN ferrule)
Conductor cross section AWG	26 ... 14	Status display	LED
Width	14 mm	Height	80 mm
Depth	104 mm	Color	gray (RAL 7042)
Flammability rating according to UL 94	V0 (Housing)	Ambient temperature (operation)	-40 °C ... 60 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C	Certificate	CE-compliant
Certificate	UKCA-compliant	Certificate	TAE0000196
Identification	ISA-S71.04. G3 Harsh Group EN 60068-2-60	Temperature	D
Humidity	A	Vibration	B/C
EMC	B	Enclosure	Required protection according to the Rules shall be provided upon installation on board
Electromagnetic compatibility	Conformance with EMC directive	Low Voltage Directive	Conformance with Low Voltage Directive
Mounting type	DIN rail mounting	Assembly note	in rows with zero spacing
Mounting position	any

Specifications may be subject to change without notice
