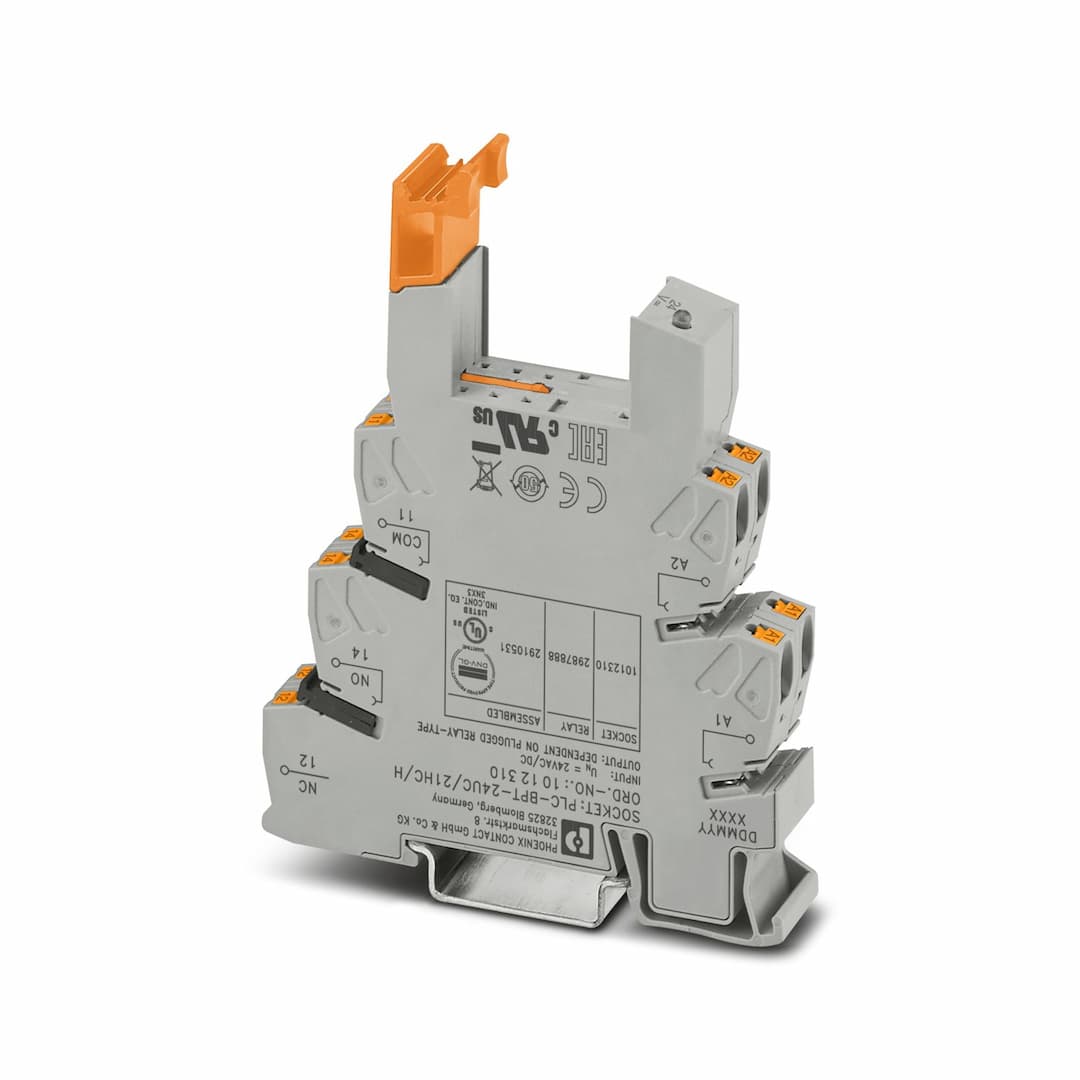

Product Model
PLC-BPT- 24UC/21HC/H
Selling Points
- 1Secure and easy-to-use push-in connections for efficient wiring.
- 2Flexible mounting options in any orientation for space-constrained installations.
- 3Operates efficiently within -40 °C to 60 °C ambient temperatures.
- 4Compact design with a width of 14 mm and height of 80 mm.
- 5Finished in gray (RAL 7042) for a professional and durable look.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay socket | Product family | PLC-INTERFACE |
Application | High continuous currents | Operating mode | 100% operating factor |
Article revision | 02 | Protective circuit | Bridge rectifier |
Nominal input voltage U | 24 V AC/DC | Protective circuit | Bridge rectifier |
Nominal input voltage U | 24 V AC/DC | Connection method | Push-in connection |
Stripping length | 10 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
Status display | LED | Width | 14 mm |
Height | 80 mm | Depth | 104 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 (Housing) |
Ambient temperature (operation) | -40 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Certificate | CE-compliant | Certificate | UKCA-compliant |
Certificate | TAE0000196 | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Temperature | D | Humidity | A |
Vibration | B/C | EMC | B |
Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
Low Voltage Directive | Conformance with Low Voltage Directive | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
