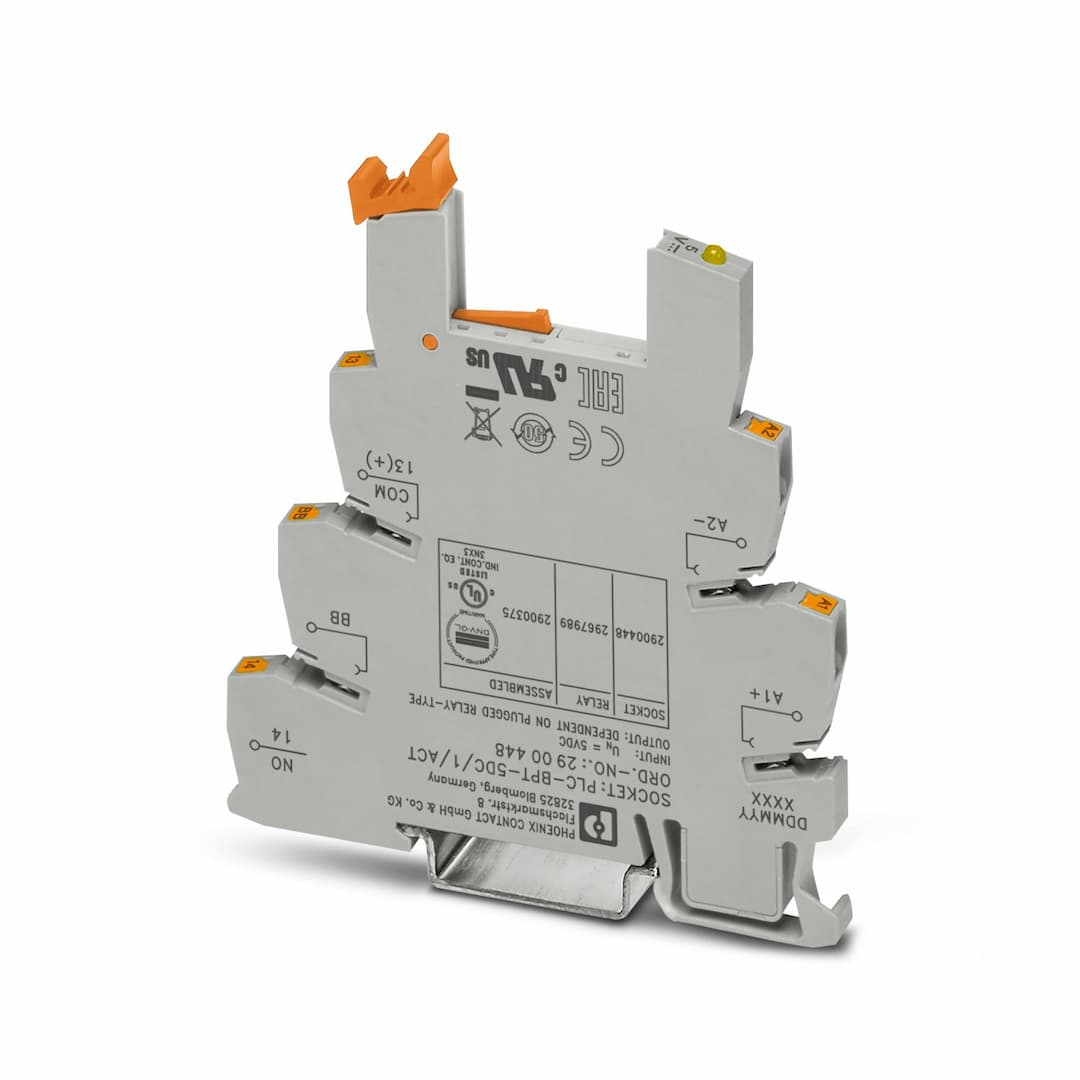

Phoenix Contact PLC-BPT- 5DC/1/ACT Relay Base

Selling Points

1Efficient Output Functions: The PLC-BPT- 5DC/1/ACT relay base is designed for output functions with a push-in connection, ensuring quick and reliable operation.
2DIN Rail Mounting: Easily mountable on DIN rail NS 35/7,5, making it versatile for various industrial settings.
3Compact Design: Measuring 6.2 mm in width, 80 mm in height, and 94 mm in depth, it fits seamlessly into compact spaces.
4CE and UKCA Compliant: Meets CE and UKCA standards, ensuring compliance with regulatory requirements.
5Versatile Connectivity: Supports conductor cross sections from 0.14 mm² to 2.5 mm² (solid) and 0.14 mm² to 2.5 mm² (flexible), accommodating various wire sizes.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
EMC note	EMC: class A product, see manufacturer's declaration in the download area	Product type	Relay socket
Product family	PLC-INTERFACE	Application	Output function
Set comprises	2900375 PLC-OPT- 5DC/ 24DC/2/ACT	Article revision	04
Nominal input voltage U	5 V DC	Protective circuit	Freewheeling diode
Nominal input voltage U	5 V DC	Connection method	Push-in connection
Stripping length	10 mm	Conductor cross section rigid	0.14 mm² ... 2.5 mm²
Conductor cross section flexible	0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1 mm² (TWIN ferrule)	Conductor cross section AWG	26 ... 14
Width	6.2 mm	Height	80 mm
Depth	94 mm	Certificate	CE-compliant
Certificate	UKCA-compliant	Certificate	TAE0000196
Identification	ISA-S71.04. G3 Harsh Group EN 60068-2-60	Temperature	D
Humidity	A	Vibration	B/C
EMC	B	Enclosure	Required protection according to the Rules shall be provided upon installation on board
Electromagnetic compatibility	Conformance with EMC directive	Low Voltage Directive	Conformance with Low Voltage Directive
Mounting type	DIN rail mounting	Mounting position	any
