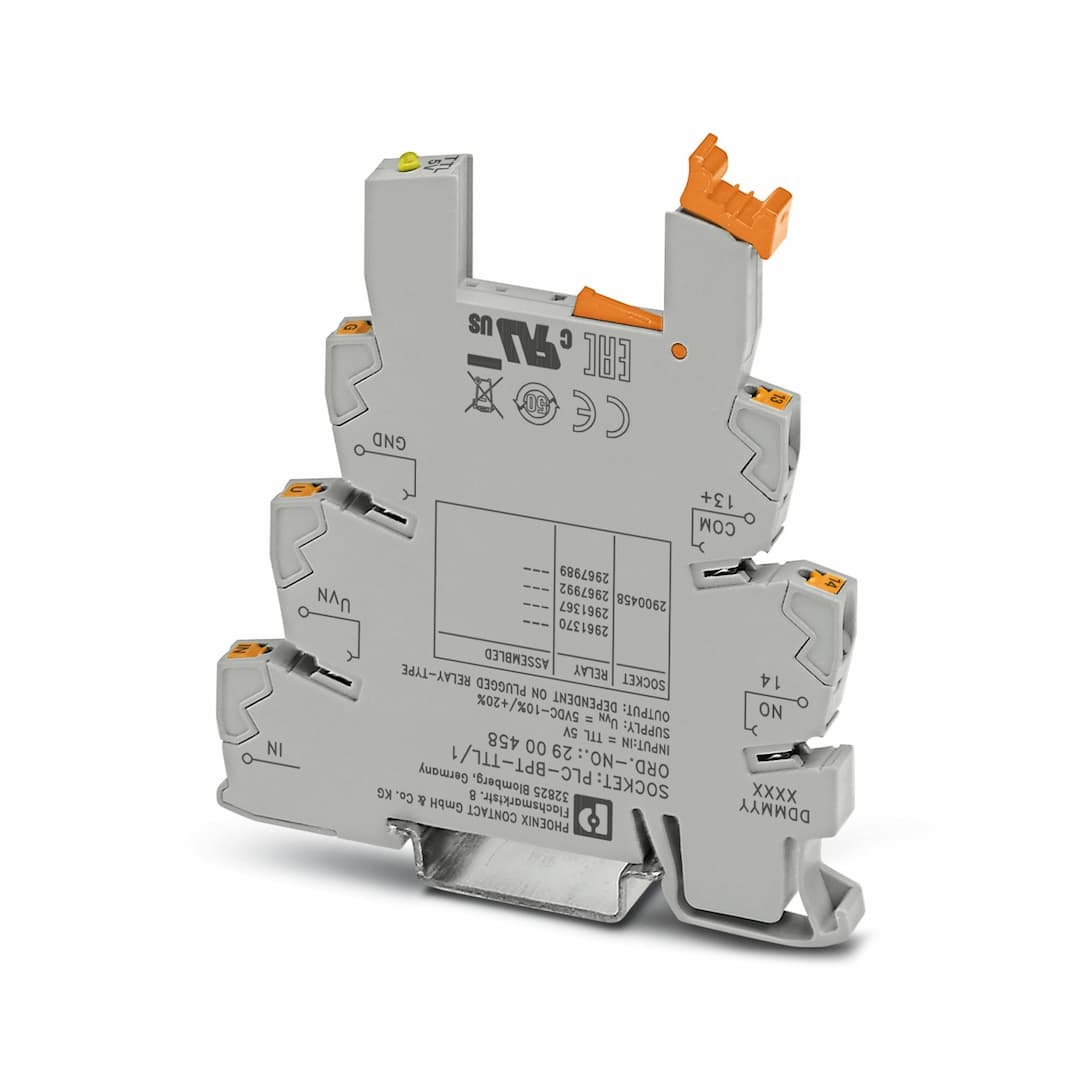

Phoenix Contact PLC-BPT-TTL/1

Selling Points

  • 1Compact 6.2 mm design for space-constrained installations.
  • 2Reliable push-in connection for easy and secure conductor connection.
  • 3100% operating factor ensures consistent performance.
  • 4Safe isolation according to EN 50178 (VDE 0160) for enhanced safety.
  • 5Compatible with a wide range of conductor cross sections (0.14 mm² to 2.5 mm²).
Product Details
PLC-BPT-TTL/1
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
EMC note
EMC: class A product, see manufacturer's declaration in the download area
Product type
Relay socket
Product family
PLC-INTERFACE
Application
TTL signal at input
Operating mode
100% operating factor
Article revision
08
Nominal input voltage U
5 V DC (TTL) The nominal voltage of the plug-on electromechanical relay or solid-state relay (see necessary accessories) deviates from the nominal input voltage of the base with integrated upstream circuit 5 V DC (TTL) The nominal voltage of the plug-on electromechanical relay or solid-state relay (see necessary accessories) deviates from the nominal input voltage of the base with integrated upstream circuit
Rated control circuit supply voltage U
5 V DC
Voltage range with reference to U
0.9 ... 1.2
Rated control supply current I
41 mA
Rated actuating voltage U
5 V DC (TTL)
Voltage range with reference to U
0.9 ... 1.2
Rated actuating current I
2.5 mA
Typical response time
4.5 ms
Typical release time
3.5 ms
Operating voltage display
Yellow LED
Protective circuit
Reverse polarity protection Surge protection
Surge voltage protection
> 6.5 V
Rated control circuit supply voltage U
5 V DC
Voltage range with reference to U
0.9 ... 1.2
Rated control supply current I
11.5 mA
Rated actuating voltage U
5 V DC (TTL)
Rated actuating current I
2.5 mA
Switching level 1 signal ("H") (TTL signal)
> 2 V DC
Switching level 0 signal ("L") (TTL signal)
< 0.8 V DC
Typical response time
35 µs
Typical release time
320 µs
Operating voltage display
Yellow LED
Protective circuit
Reverse polarity protection Surge protection
Transmission frequency
1000 Hz
Surge voltage protection
> 6.5 V
Maximum switching voltage
48 V DC
Minimum switching voltage
3 V DC
Limiting continuous current
100 mA
Voltage drop at max. limiting continuous current
< 1 V
Output circuit
2-conductor, floating
Protective circuit
Reverse polarity protection Surge protection
Maximum switching voltage
33 V DC
Minimum switching voltage
3 V DC
Limiting continuous current
3 A
Voltage drop at max. limiting continuous current
< 200 mV
Maximum inrush current
15 A (10 ms)
Output circuit
2-conductor, floating
Protective circuit
Reverse polarity protection Surge protection
Connection method
Push-in connection
Stripping length
10 mm
Conductor cross section rigid
0.14 mm² ... 2.5 mm²
Conductor cross section flexible
0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1 mm² (TWIN ferrule)
Conductor cross section AWG
26 ... 14
Width
6.2 mm
Height
80 mm
Depth
94 mm
Color
gray (RAL 7042)
Flammability rating according to UL 94
V0 (Housing)
Ambient temperature (operation)
-20 °C ... 60 °C
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Identification
ISA-S71.04. G3 Harsh Group EN 60068-2-60
Mounting type
DIN rail mounting
Assembly note
in rows with zero spacing
Mounting position
any

Specifications may be subject to change without notice
