Product Model

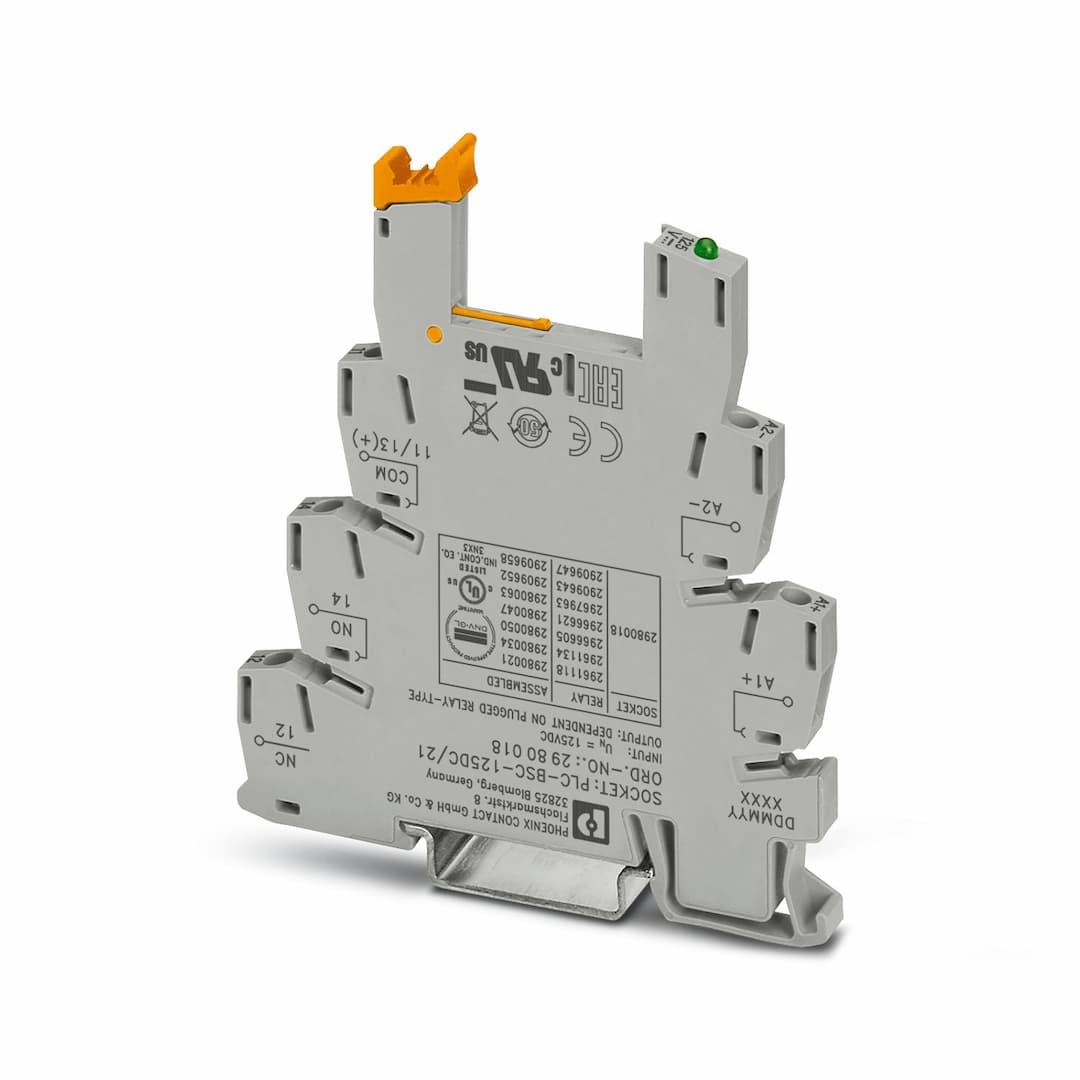

PLC-BSC-125DC/21
Selling Points
- 16.2mm width, 80mm height, and 94mm depth for efficient DIN rail mounting.
- 2Screw connection with M3 thread, suitable for solid and flexible conductors up to 2.5mm².
- 3Damping diode and polarity protection diode ensure safe operation.
- 4Meets EMC Class A standards, UL 94 V0 flammability rating, and REACh SVHC compliant.
- 5Perfect for industrial control systems requiring 100% operating factor and gray color coding.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Relay socket |
Product family | PLC-INTERFACE | Application | Universal |
Operating mode | 100% operating factor | Article revision | 04 |
Pollution degree | 3 | Protective circuit | Damping diode, polarity protection diode |
Nominal input voltage U | 125 V DC | Protective circuit | Freewheeling diode |
Nominal input voltage U | 125 V DC | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) |
Conductor cross section AWG | 26 ... 14 | Tightening torque | 0.6 Nm ... 0.8 Nm |
Status display | LED | Width | 6.2 mm |
Height | 80 mm | Depth | 94 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 (Housing) |
Certificate | CE-compliant | Certificate | UKCA-compliant |
Certificate | TAE0000196 | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Temperature | D | Humidity | A |
Vibration | B/C | EMC | B |
Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
Low Voltage Directive | Conformance with Low Voltage Directive | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
