Product Model

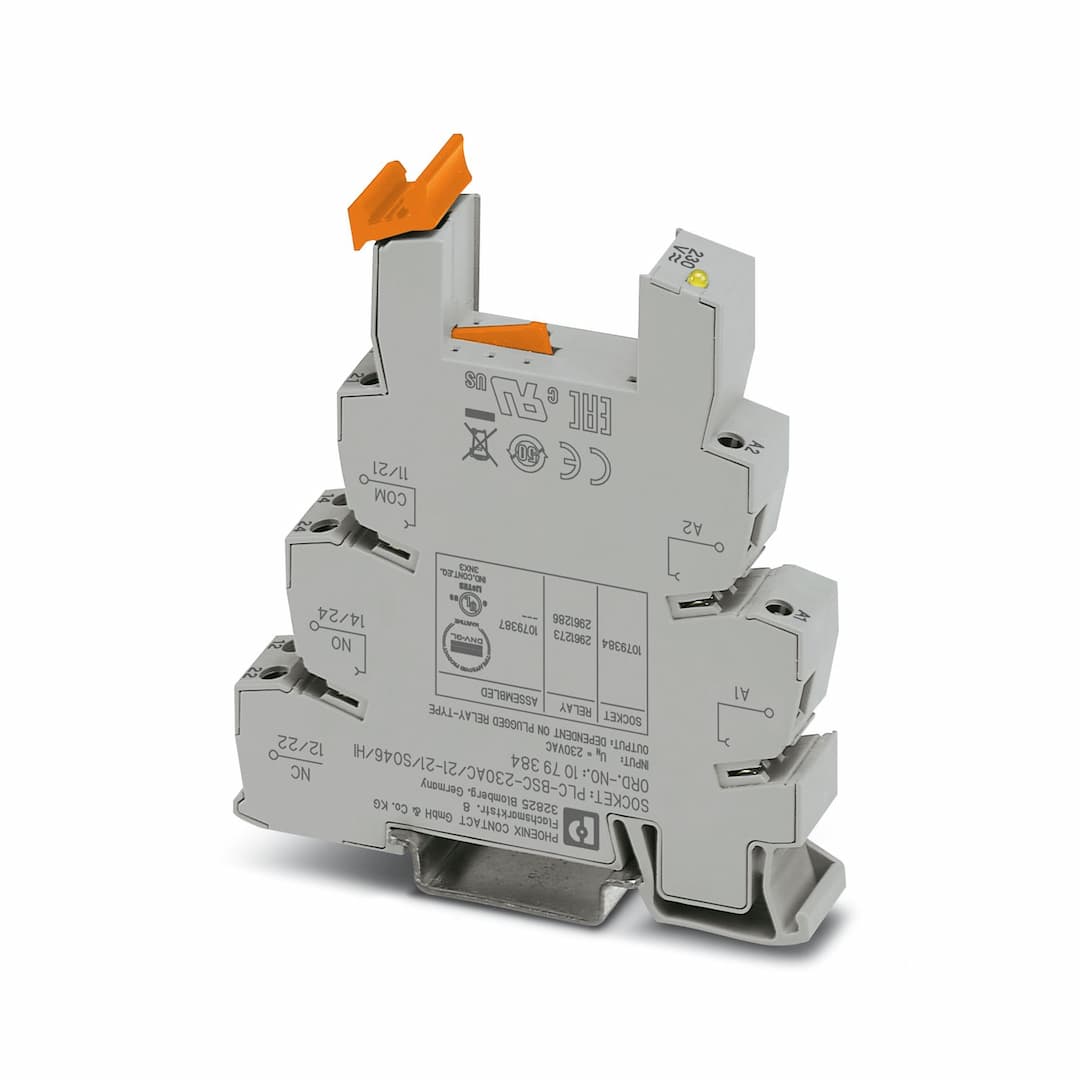

PLC-BSC-230AC/21-21/SO46/HI
Selling Points
- 1High Relay Release Voltage: Ensures reliable operation under various conditions.
- 2Resistant to Interference Currents: Protects against electrical noise and interference.
- 3DIN Rail Mounting: Convenient and space-saving installation on standard DIN rails.
- 4Efficient Connection: Screw connection with defined activation and deactivation thresholds.
- 5Wide Ambient Temperature Range: Operates from -40°C to 55°C, ensuring durability in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay socket | Product family | PLC-INTERFACE |
Application | Filter to prevent interference | Operating mode | 100% operating factor |
Article revision | 02 | Protective circuit | Bridge rectifier; Bridge rectifier
RCZ filter; RCZ filter |
Nominal input voltage U | 230 V AC | Input voltage range in reference to U | 0.83 ... 1.1 (at 20 °C) |
Typical response time | 7 ms | Typical release time | 10 ms |
Nominal input voltage U | 230 V AC | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) |
Conductor cross section AWG | 26 ... 14 | Tightening torque | 0.6 Nm ... 0.8 Nm |
Status display | LED | Width | 14 mm |
Height | 80 mm | Depth | 94 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 (Housing) |
Ambient temperature (operation) | -40 °C ... 55 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Certificate | CE-compliant | Certificate | UKCA-compliant |
Certificate | TAE0000196 | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Temperature | D | Humidity | A |
Vibration | B/C | EMC | B |
Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
Low Voltage Directive | Conformance with Low Voltage Directive | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
