Product Model

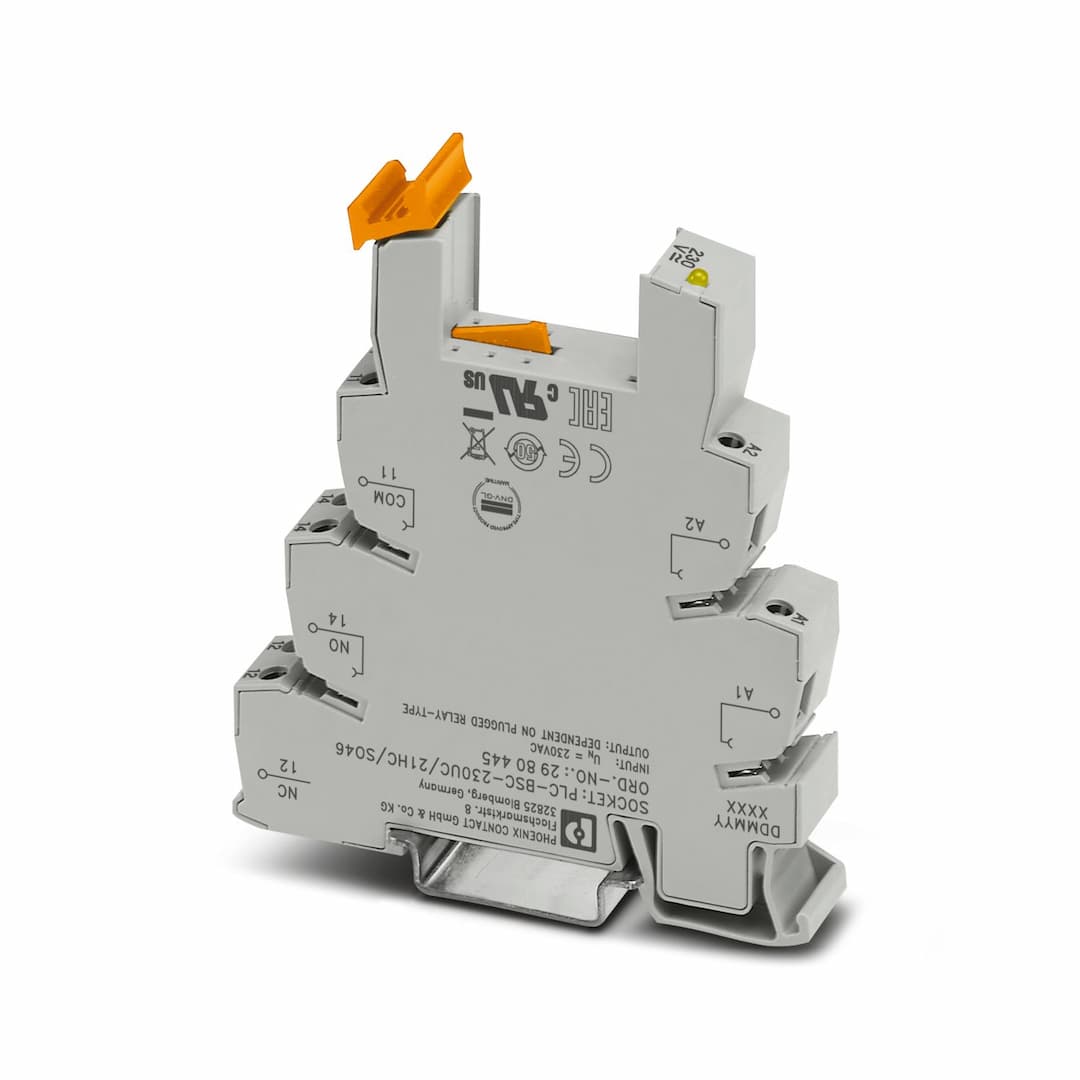

PLC-BSC-230UC/21HC/SO46
Selling Points
- 1Reliable Screw Connection: Accommodates conductor cross sections of 0.14 mm² to 2.5 mm².
- 2Compact Design: Width of 14 mm and height of 80 mm for space-constrained installations.
- 3DIN Rail Mounting: Easy mounting in any orientation, ensuring flexibility.
- 4Efficient Operation: Operates within -40 °C to 55 °C ambient temperatures.
- 5Professional Appearance: Finished in gray (RAL 7042) for a professional look.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Relay socket |
Product family | PLC-INTERFACE | Application | Filter to prevent interference |
Operating mode | 100% operating factor | Compatible components | Miniature relay, REL-MR-110DC/21HC |
Article revision | 12 | Pollution degree | 3 |
Protective circuit | Bridge rectifier; Bridge rectifier
RCZ filter; RCZ filter | Nominal input voltage U | 230 V AC
The nominal voltage of the plug-on electromechanical relay or solid-state relay (see necessary accessories) deviates from the nominal input voltage of the base with integrated upstream circuit |
Input voltage range in reference to U | 0.78 ... 1.14 (at 20 °C) | Typical input current at U | 8.8 mA (50 Hz)
10 mA (60 Hz) |
Typical response time | 7 ms | Typical release time | 20 ms |
Switching threshold "0" signal, voltage | typ. 70 V AC | Nominal input voltage U | 230 V AC
The nominal voltage of the plug-on electromechanical relay or solid-state relay (see necessary accessories) deviates from the nominal input voltage of the base with integrated upstream circuit |
Nominal input voltage U | 230 V AC | Input voltage range in reference to U | 0.78 ... 1.14 |
Typical input current at U | 8.5 mA (50 Hz)
10 mA (60 Hz) | Typical response time | 7 ms |
Typical release time | 20 ms | Typical release voltage | 70 V AC |
Operating voltage display | Yellow LED | Protective circuit | Bridge rectifier; Bridge rectifier
Filter; Filter |
Operating voltage display | Yellow LED | Protective circuit | Bridge rectifier; Bridge rectifier
Filter; Filter |
Compatible components | Miniature relay, REL-MR-110DC/21HC | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) |
Conductor cross section AWG | 26 ... 14 | Tightening torque | 0.6 Nm ... 0.8 Nm |
Status display | LED | Width | 14 mm |
Height | 80 mm | Depth | 94 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 (Housing) |
Ambient temperature (operation) | -40 °C ... 55 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Certificate | CE-compliant | Certificate | UKCA-compliant |
Certificate | TAE0000196 | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Temperature | D | Humidity | A |
Vibration | B/C | EMC | B |
Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
Low Voltage Directive | Conformance with Low Voltage Directive | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
