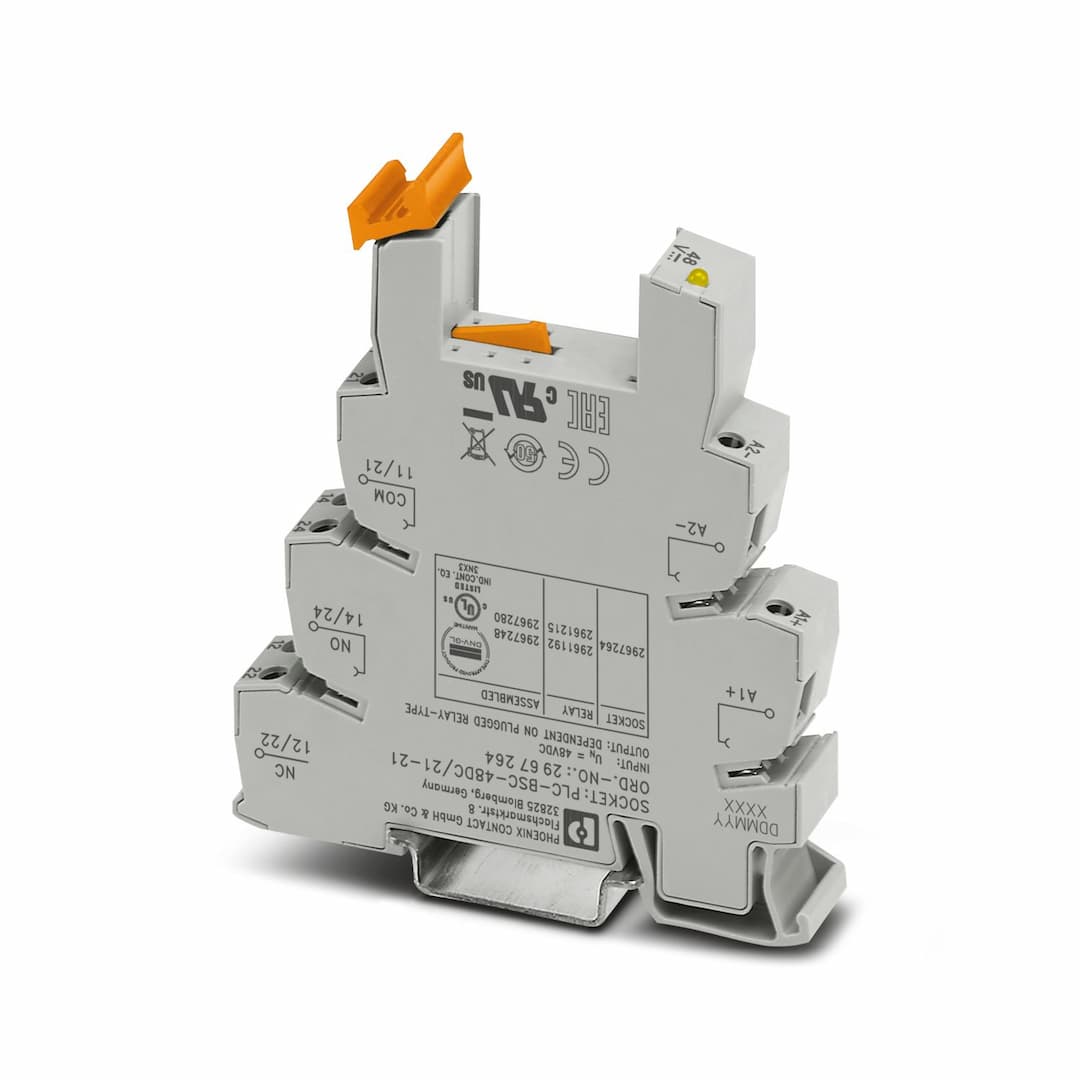

Product Model
PLC-BSC- 48DC/21-21
Selling Points
- 1Compact 14mm width for easy DIN rail mounting.
- 2Operates within -40°C to 60°C ambient temperature range.
- 3Compatible with miniature relays like REL-MR-24DC/21-21AU.
- 4Screw connection method with 8mm stripping length.
- 5UL Recognized, cULus Recognized, and GOST approved.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Relay socket |
Product family | PLC-INTERFACE | Application | Universal |
Set comprises | 2967248 PLC-RSC- 48DC/21-21
2967280 PLC-RSC- 48DC/21-21AU | Operating mode | 100% operating factor |
Compatible components | Miniature relay, REL-MR-24DC/21-21AU, REL-MR-24DC/21-21 | Article revision | 08 |
Pollution degree | 3 | Nominal input voltage U | 48 V DC |
Protective circuit | Freewheeling diode | Nominal input voltage U | 48 V DC |
Compatible components | Miniature relay, REL-MR-24DC/21-21AU, REL-MR-24DC/21-21 | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) |
Conductor cross section AWG | 26 ... 14 | Tightening torque | 0.6 Nm ... 0.8 Nm |
Status display | LED | Width | 14 mm |
Height | 80 mm | Depth | 94 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 (Housing) |
Ambient temperature (operation) | -40 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Certificate | CE-compliant | Certificate | UKCA-compliant |
Certificate | TAE0000196 | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Temperature | D | Humidity | A |
Vibration | B/C | EMC | B |
Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
Low Voltage Directive | Conformance with Low Voltage Directive | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
