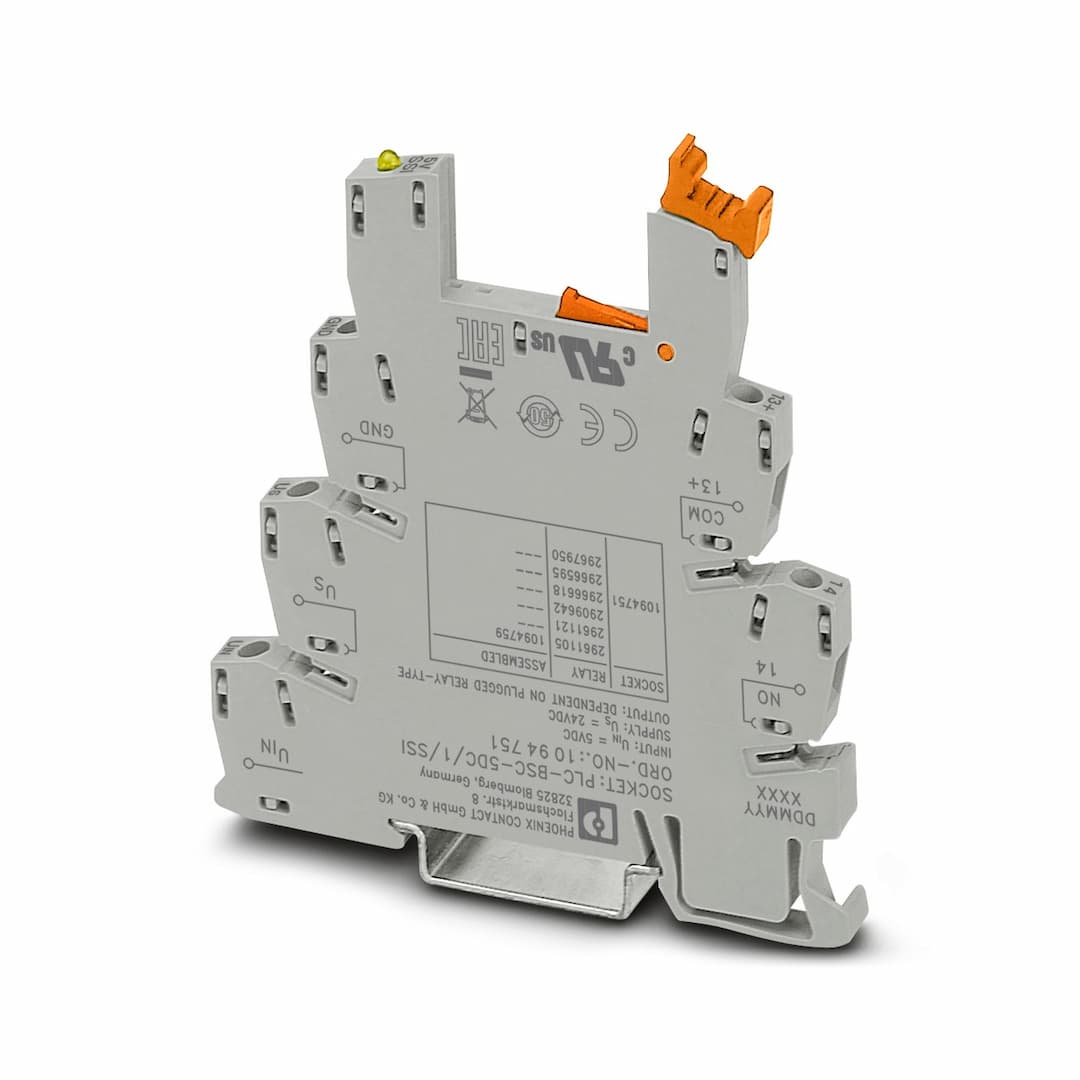

Phoenix Contact PLC-BSC- 5DC/1/SSI Relay Base

Selling Points

1Compact design with 6.2 mm width, 80 mm height, and 94 mm depth.
2Suitable for mounting on DIN rail NS 35/7,5 with load return line connection (BB).
3Includes 1 N/O contact with input voltage of 5 V DC.
4Offers damping diode and polarity protection diode for enhanced electrical properties.
5CE and UKCA compliant, ensuring high standards of safety and performance.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Notes on operation	Do not connect adjacent channels to SELV/ PELV and voltages dangerous to the touch.	Notes on operation	The outputs are not suitable for switching different outer conductors with appropriate switching output (applies to the AC optocoupler variants and relays).
Notes on operation	The system installer must ensure the touch protection of the product (at voltages > 25 V AC/60 V DC). The product is a built-in device without protection against direct contact.	Notes on operation	At least one functional insulation against adjacent modules is complied with in the support rail direction.
Notes on operation	Do not use to separate SELV/PELV circuits from other circuits, because safe isolation is not guaranteed. (applies to the optocoupler variants)	Product type	Relay socket
Product family	PLC-INTERFACE	Operating mode	100% operating factor
Article revision	00	Insulation	Safe isolation, reinforced insulation
Overvoltage category	III	Pollution degree	2
Rated insulation voltage	250 V AC	Rated surge voltage	6 kV
Nominal input voltage U	5 V DC	Input voltage range in reference to U	0.9 ... 1.2
Nominal input voltage U	5 V DC	Rated control circuit supply voltage U	24 V DC
Voltage range with reference to U	0.8 ... 1.2	Rated control supply current I	9 mA
Rated actuating current I	1 mA	Typical response time	5 ms
Typical release time	7 ms	Protective circuit	Reverse polarity protection Surge protection
Surge voltage protection	> 33 V	Rated control circuit supply voltage U	24 V DC
Voltage range with reference to U	0.8 ... 1.2	Rated control supply current I	≥ 8 mA (depends on type)
Switching threshold "0" signal in reference to U	0.3	Maximum switching voltage	48 V DC
Minimum switching voltage	3 V DC	Limiting continuous current	100 mA
Voltage drop at max. limiting continuous current	< 1 V	Output circuit	2-conductor, floating
Protective circuit	Reverse polarity protection Surge protection	Maximum switching voltage	33 V DC
Minimum switching voltage	3 V DC	Limiting continuous current	3 A
Voltage drop at max. limiting continuous current	< 200 mV	Output circuit	2-conductor, floating
Protective circuit	Reverse polarity protection Surge protection	Maximum switching voltage	253 V AC (Partition plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal points in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...)
Minimum switching voltage	24 V AC	Limiting continuous current	0.75 A
Voltage drop at max. limiting continuous current	< 1 V	Maximum inrush current	30 A (10 ms)
Output circuit	2-conductor, floating	Protective circuit	RCV circuit Surge protection
Leakage current	< 1 mA	Max. load value	4.5 A
Connection method	Screw connection	Stripping length	8 mm
Screw thread	M3	Conductor cross section rigid	0.14 mm² ... 2.5 mm²
Conductor cross section flexible	0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1.5 mm² (TWIN ferrule)	Conductor cross section AWG	26 ... 14
Tightening torque	0.6 Nm ... 0.8 Nm	Status display	LED (yellow)
Width	6.2 mm	Height	80 mm
Depth	94 mm	Color	gray (RAL 7042)
Degree of protection	IP20	Ambient temperature (operation)	-25 °C ... 60 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C	Altitude	≤ 2000 m
Identification	ISA-S71.04. G3 Harsh Group EN 60068-2-60	Standards/regulations	DIN EN 50178
Mounting type	DIN rail mounting	Assembly note	in rows with zero spacing
Mounting position	any

Specifications may be subject to change without notice
