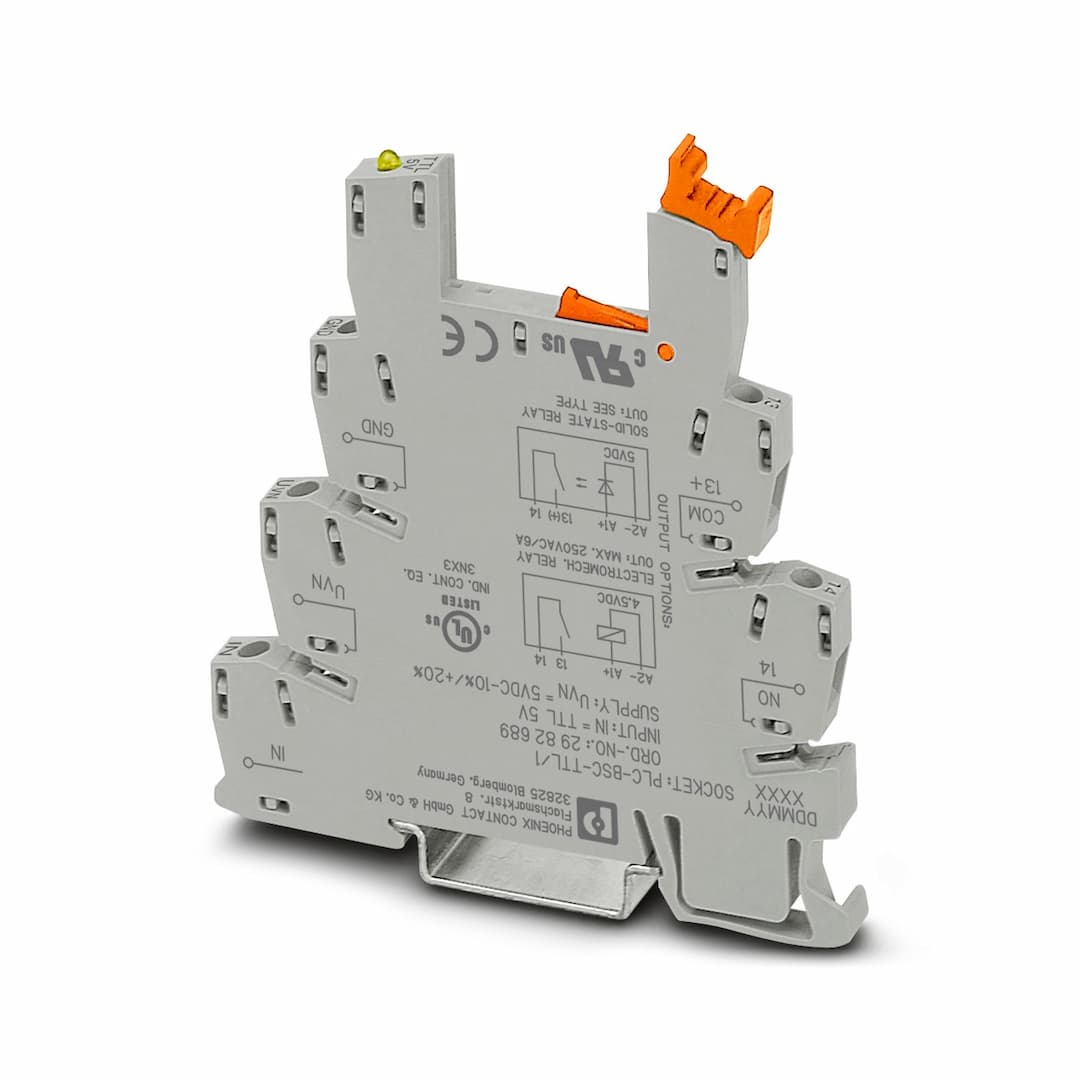

Phoenix Contact PLC-BSC-TTL/1

Selling Points

  • 1Efficient TTL Signal Handling: Handles TTL signals with 5 V DC input voltage for precise control.
  • 2Compact Design: Narrow 6.2 mm width and 80 mm height for space-constrained installations.
  • 3Surge Protection: Equipped with surge protection and reverse polarity protection for reliability.
  • 4Easy Mounting: Mounts on DIN rail NS 35/7,5 with screw connection for secure attachment.
  • 5High Isolation: Provides 4 kVrms electrical isolation between coil and contact for safe operation.
Product Details
PLC-BSC-TTL/1
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
EMC note
EMC: class A product, see manufacturer's declaration in the download area
Product type
Relay socket
Product family
PLC-INTERFACE
Application
TTL signal at input
Operating mode
100% operating factor
Article revision
08
Nominal input voltage U
5 V DC (TTL) The nominal voltage of the plug-on electromechanical relay or solid-state relay (see necessary accessories) deviates from the nominal input voltage of the base with integrated upstream circuit 5 V DC (TTL) The nominal voltage of the plug-on electromechanical relay or solid-state relay (see necessary accessories) deviates from the nominal input voltage of the base with integrated upstream circuit
Rated control circuit supply voltage U
5 V DC
Voltage range with reference to U
0.9 ... 1.2
Rated control supply current I
41 mA
Rated actuating voltage U
5 V DC (TTL)
Voltage range with reference to U
0.9 ... 1.2
Rated actuating current I
2.5 mA
Typical response time
4.5 ms
Typical release time
3.5 ms
Operating voltage display
Yellow LED
Protective circuit
Reverse polarity protection Surge protection
Surge voltage protection
> 6.5 V
Rated control circuit supply voltage U
5 V DC
Voltage range with reference to U
0.9 ... 1.2
Rated control supply current I
11.5 mA
Rated actuating voltage U
5 V DC (TTL)
Rated actuating current I
2.5 mA
Switching level 1 signal ("H") (TTL signal)
> 2 V DC
Switching level 0 signal ("L") (TTL signal)
< 0.8 V DC
Typical response time
35 µs
Typical release time
320 µs
Operating voltage display
Yellow LED
Protective circuit
Reverse polarity protection Surge protection
Transmission frequency
1000 Hz
Surge voltage protection
> 6.5 V
Maximum switching voltage
48 V DC
Minimum switching voltage
3 V DC
Limiting continuous current
100 mA
Voltage drop at max. limiting continuous current
< 1 V
Output circuit
2-conductor, floating
Protective circuit
Reverse polarity protection Surge protection
Maximum switching voltage
33 V DC
Minimum switching voltage
3 V DC
Limiting continuous current
3 A
Voltage drop at max. limiting continuous current
< 200 mV
Maximum inrush current
15 A (10 ms)
Output circuit
2-conductor, floating
Protective circuit
Reverse polarity protection Surge protection
Connection method
Screw connection
Stripping length
8 mm
Screw thread
M3
Conductor cross section rigid
0.14 mm² ... 2.5 mm²
Conductor cross section flexible
0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1.5 mm² (TWIN ferrule)
Conductor cross section AWG
26 ... 14
Tightening torque
0.45 Nm ... 0.55 Nm (Usually these terminal blocks must be supported during conductor connection (held by one hand, supported on the housing))
Width
6.2 mm
Height
80 mm
Depth
94 mm
Color
gray (RAL 7042)
Flammability rating according to UL 94
V0 (Housing)
Ambient temperature (operation)
-20 °C ... 60 °C
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Identification
ISA-S71.04. G3 Harsh Group EN 60068-2-60
Mounting type
DIN rail mounting
Assembly note
in rows with zero spacing
Mounting position
any

Specifications may be subject to change without notice
