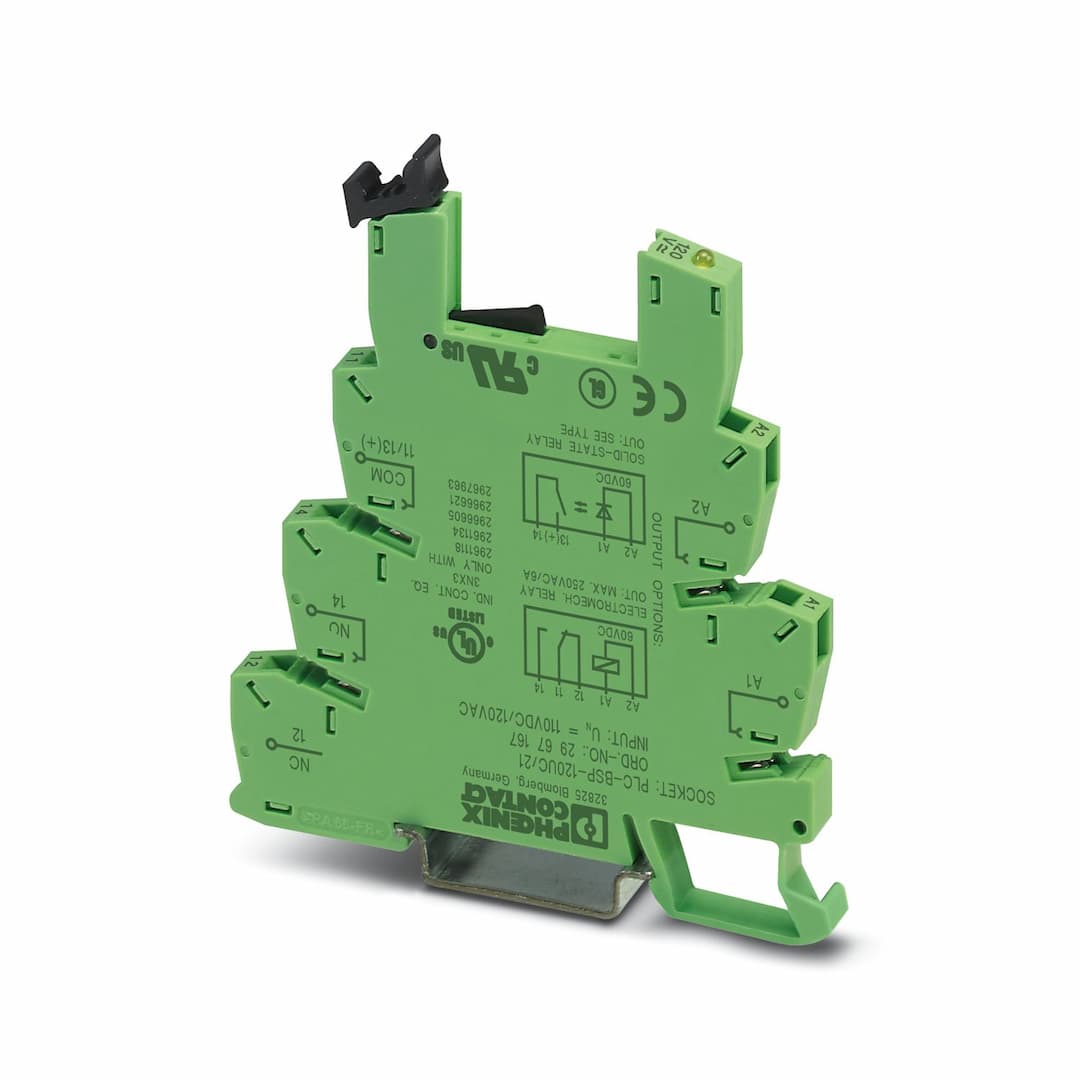

Product Model
PLC-BSP-120UC/21
Selling Points
- 1High Relay Release Voltage: Ensures reliable switching performance.
- 2Interference Current Protection: Guards against electrical noise and interference.
- 3Compact Design: Measures 6.2 mm, ideal for space-constrained applications.
- 4Spring-Cage Connection: Easy and secure connection method.
- 5DIN Rail Mounting: Conveniently mounts on NS 35/7,5 DIN rails.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Relay socket |
Product family | PLC-INTERFACE | Application | Universal |
Set comprises | 2966524 PLC-RSP-120UC/21
2966582 PLC-RSP-120UC/21AU
2967552 PLC-OSP-120UC/ 48DC/100
2967484 PLC-OSP-120UC/ 24DC/ 2
2967921 PLC-OSP-120UC/230AC/ 1 | Operating mode | 100% operating factor |
Compatible components | Miniature relay, REL-MR-60DC/21AU, REL-MR-60DC/21; miniature optocoupler, OPT-60DC/48DC/100, OPT-60DC/24DC/2, OPT-60DC/230AC/1 | Overvoltage category | II |
Pollution degree | 2 | Protective circuit | Bridge rectifier |
Nominal input voltage U | 120 V AC/DC | Protective circuit | Bridge rectifier |
Nominal input voltage U | 120 V AC/DC | Compatible components | Miniature relay, REL-MR-60DC/21AU, REL-MR-60DC/21; miniature optocoupler, OPT-60DC/48DC/100, OPT-60DC/24DC/2, OPT-60DC/230AC/1 |
Connection method | Spring-cage connection | Stripping length | 8 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
Conductor cross section AWG | 26 ... 14 | Connection method | Spring-cage connection |
Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
Status display | LED | Width | 6.2 mm |
Height | 80 mm | Depth | 94 mm |
Color | green (RAL 6021) | Flammability rating according to UL 94 | V0 (Housing) |
Ambient temperature (operation) | -40 °C ... 55 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
