Product Model

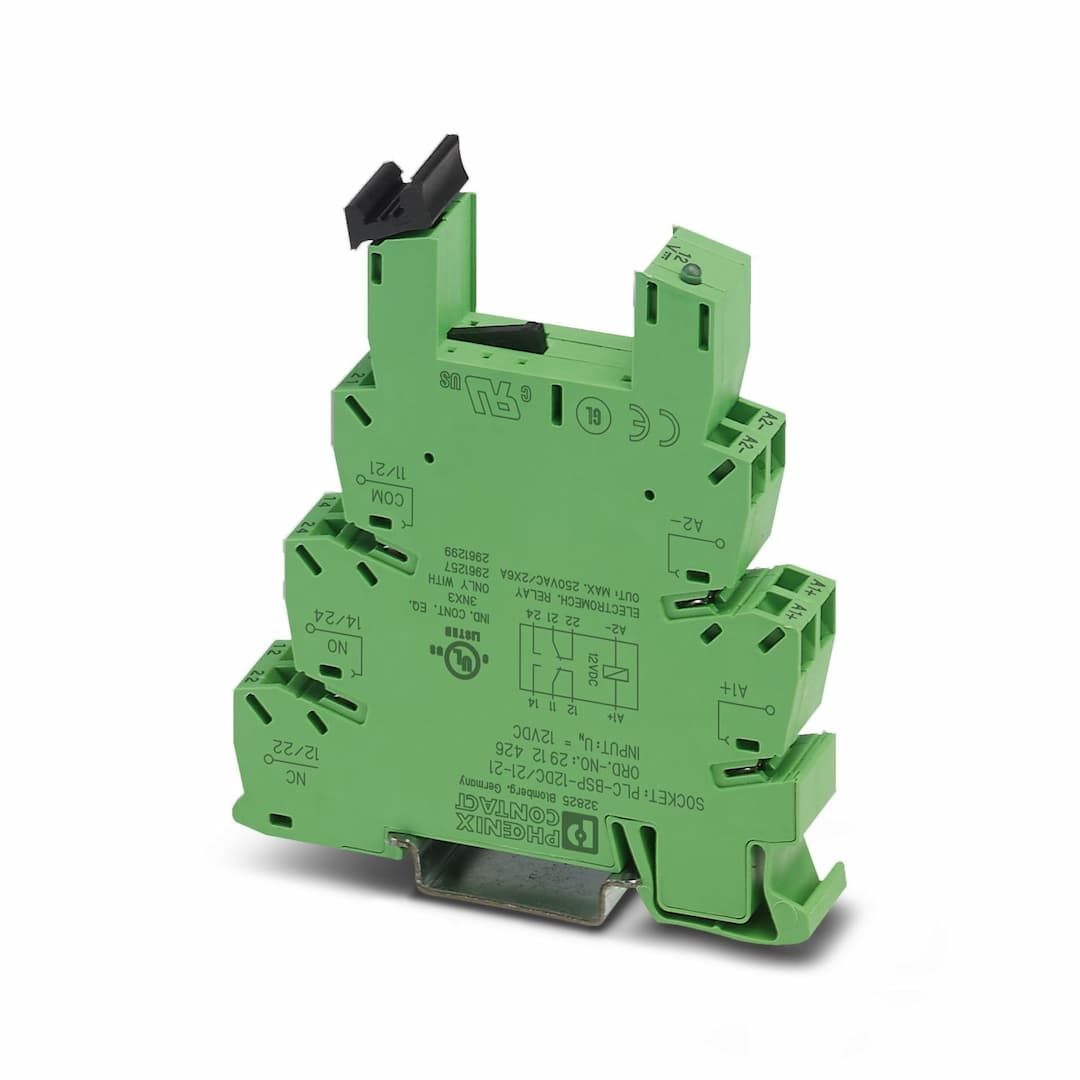

PLC-BSP- 12DC/21-21
Selling Points
- 16.2 mm width for efficient DIN rail mounting.
- 2Secure and reliable connection for your relay needs.
- 3Ideal for applications requiring a single changeover contact.
- 4Compatible with 12 V DC systems, ensuring seamless integration.
- 5Designed for straightforward mounting on DIN rail NS 35/7,5.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Relay socket |
Product family | PLC-INTERFACE | Application | Universal |
Set comprises | 2912497 PLC-RSP- 12DC/21-21
2912565 PLC-RSP- 12DC/21-21AU | Operating mode | 100% operating factor |
Article revision | 06 | Protective circuit | Reverse polarity protection; Polarity protection diode |
Nominal input voltage U | 12 V DC | Protective circuit | Freewheeling diode |
Nominal input voltage U | 12 V DC | Connection method | Spring-cage connection |
Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
Connection method | Spring-cage connection | Stripping length | 8 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
Conductor cross section AWG | 26 ... 14 | Status display | LED |
Width | 14 mm | Height | 80 mm |
Depth | 94 mm | Color | green (RAL 6021) |
Flammability rating according to UL 94 | V0 (Housing) | Ambient temperature (operation) | -40 °C ... 60 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
