Product Model

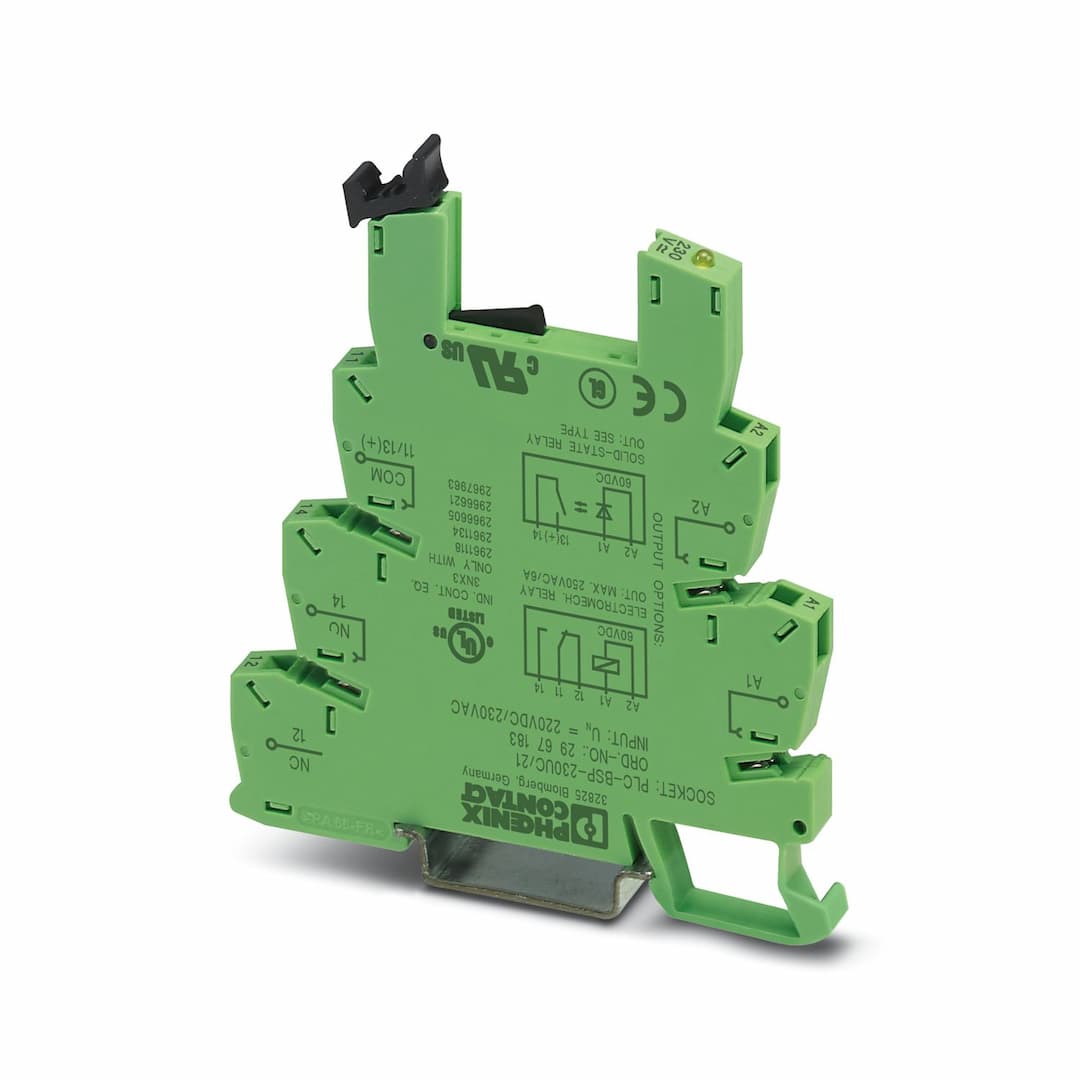

PLC-BSP-230UC/21
Selling Points
- 1High-Interference Protection: Equipped with interference current and voltage protection on the control side.
- 2Spring-Cage Connection: Features a secure spring-cage connection for reliable electrical connections.
- 3Compact Design: Measuring 6.2 mm in width, 80 mm in height, and 94 mm in depth.
- 4LED Status Display: Includes an LED status display for easy monitoring of operational status.
- 5Universal Compatibility: Compatible with a variety of miniature relays and optocouplers for versatile application use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Relay socket |
Product family | PLC-INTERFACE | Application | Universal |
Set comprises | 2966537 PLC-RSP-230UC/21
2966647 PLC-RSP-230UC/21AU
2967565 PLC-OSP-230UC/ 48DC/100
2967497 PLC-OSP-230UC/ 24DC/ 2
2967934 PLC-OSP-230UC/230AC/ 1 | Operating mode | 100% operating factor |
Compatible components | Miniature relay, REL-MR-60DC/21AU, REL-MR-60DC/21; miniature optocoupler, OPT-60DC/48DC/100, OPT-60DC/24DC/2, OPT-60DC/230AC/1 | Overvoltage category | II |
Pollution degree | 2 | Protective circuit | Bridge rectifier |
Nominal input voltage U | 230 V AC/DC | Protective circuit | Bridge rectifier |
Nominal input voltage U | 230 V AC/DC | Compatible components | Miniature relay, REL-MR-60DC/21AU, REL-MR-60DC/21; miniature optocoupler, OPT-60DC/48DC/100, OPT-60DC/24DC/2, OPT-60DC/230AC/1 |
Connection method | Spring-cage connection | Stripping length | 8 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
Conductor cross section AWG | 26 ... 14 | Connection method | Spring-cage connection |
Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
Status display | LED | Width | 6.2 mm |
Height | 80 mm | Depth | 94 mm |
Color | green (RAL 6021) | Flammability rating according to UL 94 | V0 (Housing) |
Ambient temperature (operation) | -40 °C ... 55 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
