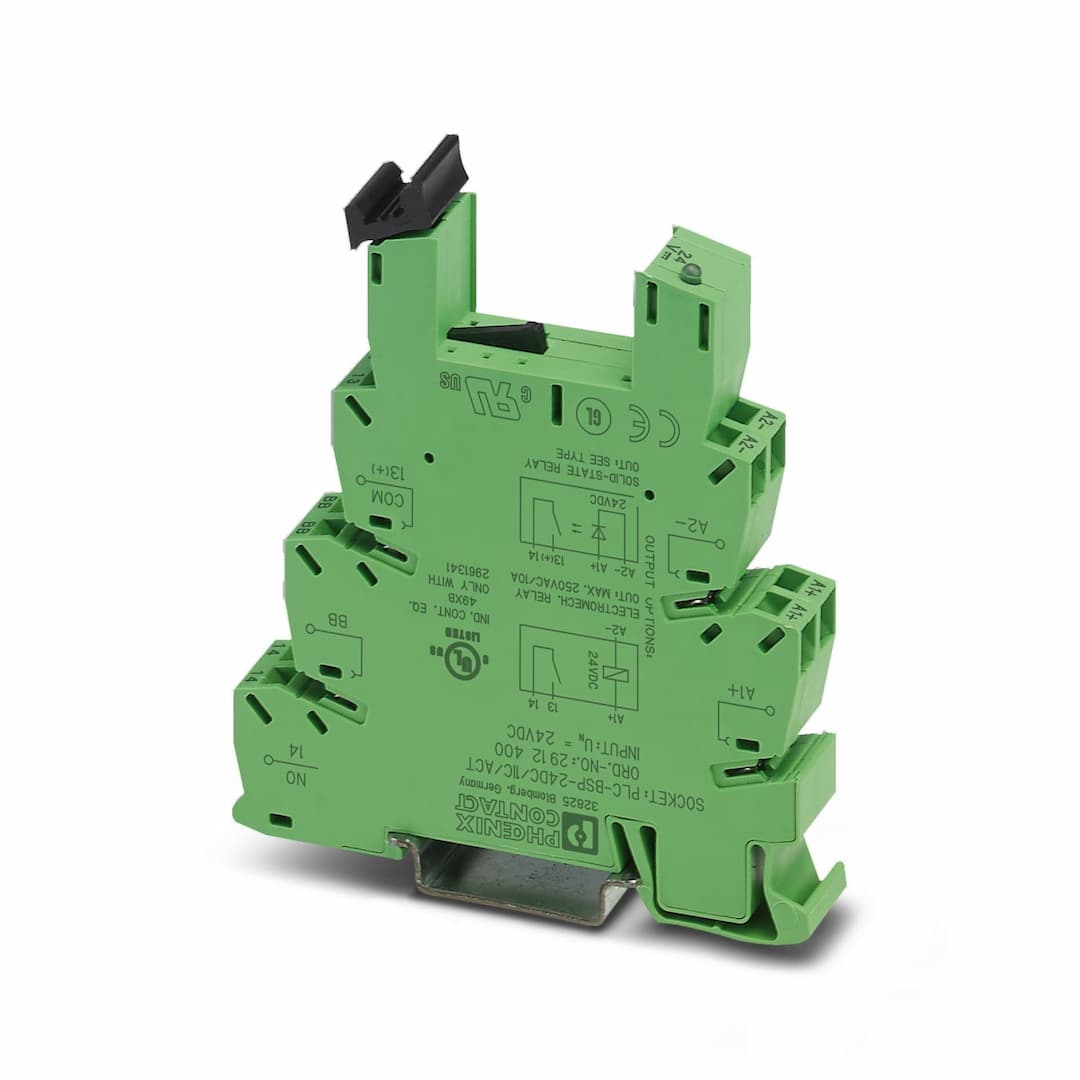

Product Model
PLC-BSP- 24DC/ 1IC/ACT
Selling Points
- 1High-switch-on currents with spring-cage connection.
- 2Suitable for 250V/10A applications.
- 3Compact design for DIN rail mounting.
- 4Reliable performance in industrial settings.
- 5Easy integration with various automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Relay socket |
Product family | PLC-INTERFACE | Application | high inrush currents |
Set comprises | 2912413 PLC-RSP- 24DC/ 1IC/ACT | Operating mode | 100% operating factor |
Compatible components | Miniature relay, REL-MR-24DC/1IC/ACT; miniature optocoupler, OPT-24DC/24DC/5, OPT-24DC/230AC/2 | Article revision | 06 |
Protective circuit | Damping diode, polarity protection diode | Nominal input voltage U | 24 V DC |
Protective circuit | Freewheeling diode | Nominal input voltage U | 24 V DC |
Compatible components | Miniature relay, REL-MR-24DC/1IC/ACT; miniature optocoupler, OPT-24DC/24DC/5, OPT-24DC/230AC/2 | Connection method | Spring-cage connection |
Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
Connection method | Spring-cage connection | Stripping length | 8 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
Conductor cross section AWG | 26 ... 14 | Status display | LED |
Width | 14 mm | Height | 80 mm |
Depth | 94 mm | Flammability rating according to UL 94 | V0 (Housing) |
Ambient temperature (operation) | -40 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
