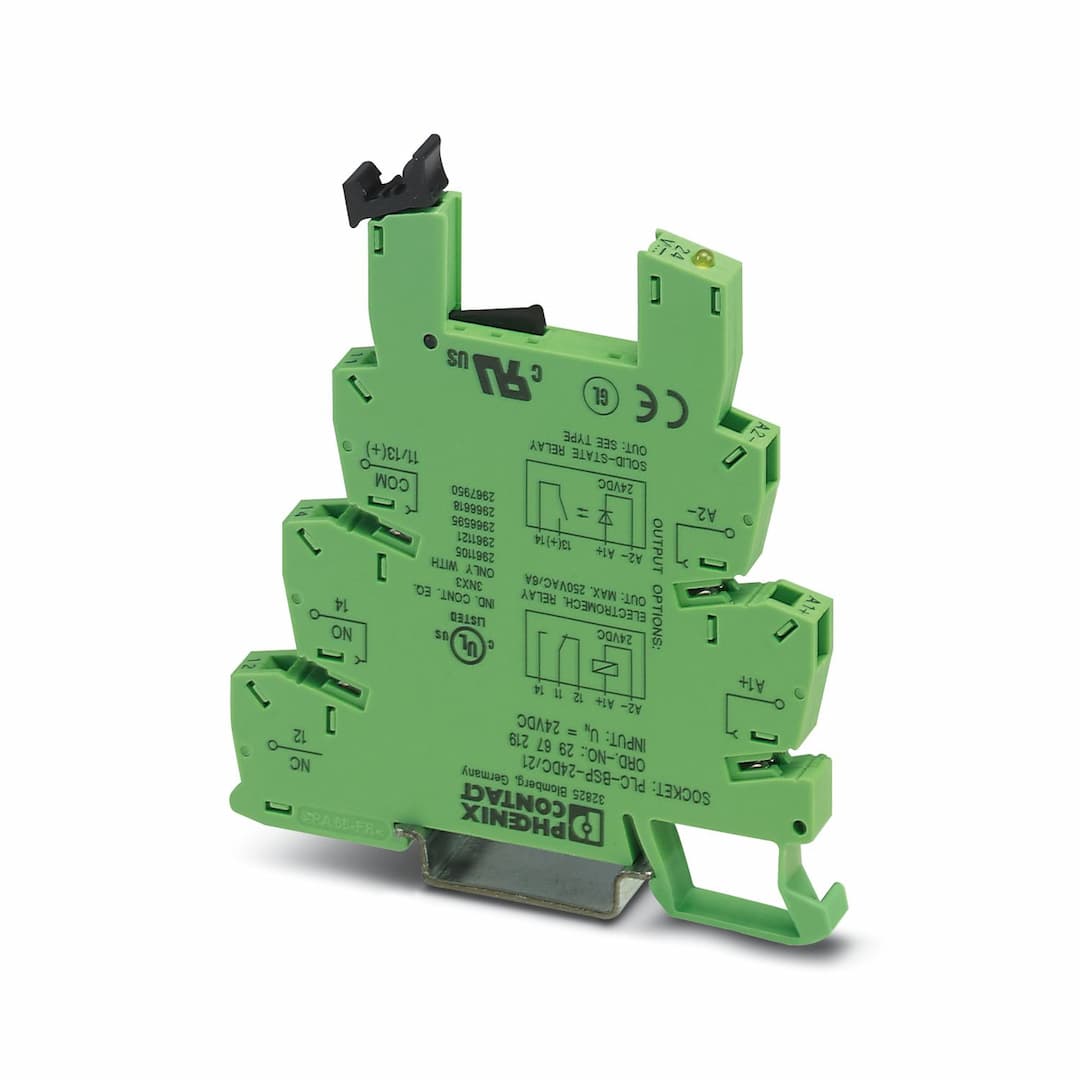

Product Model
PLC-BSP- 24DC/21
Selling Points
- 114 mm PLC Basic Terminal Block: Compact design for easy integration.
- 224VDC Input Voltage: Compatible with a wide range of industrial applications.
- 3DIN Rail Mounting: Convenient and space-saving installation.
- 4Spring-Cage Connection: Secure and reliable electrical connections.
- 5LED Indication: Visual status display for easy monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Relay socket |
Product family | PLC-INTERFACE | Application | Universal |
Set comprises | 2966472 PLC-RSP- 24DC/21
2966540 PLC-RSP- 24DC/21AU
2967549 PLC-OSP- 24DC/ 48DC/100
2967471 PLC-OSP- 24DC/ 24DC/ 2
2967895 PLC-OSP- 24DC/230AC/ 1 | Operating mode | 100% operating factor |
Compatible components | Miniature relay, REL-MR-24DC/21AU, REL-MR-24DC/21; Miniature optocoupler, OPT-24DC/24DC/2, OPT-24DC/24DC/100, OPT-24DC/230AC/1 | Protective circuit | Damping diode, polarity protection diode |
Nominal input voltage U | 24 V DC | Protective circuit | Freewheeling diode |
Nominal input voltage U | 24 V DC | Compatible components | Miniature relay, REL-MR-24DC/21AU, REL-MR-24DC/21; Miniature optocoupler, OPT-24DC/24DC/2, OPT-24DC/24DC/100, OPT-24DC/230AC/1 |
Connection method | Spring-cage connection | Stripping length | 8 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
Conductor cross section AWG | 26 ... 14 | Connection method | Spring-cage connection |
Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
Status display | LED | Width | 6.2 mm |
Height | 80 mm | Depth | 94 mm |
Color | green (RAL 6021) | Flammability rating according to UL 94 | V0 (Housing) |
Ambient temperature (operation) | -40 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
