Product Model

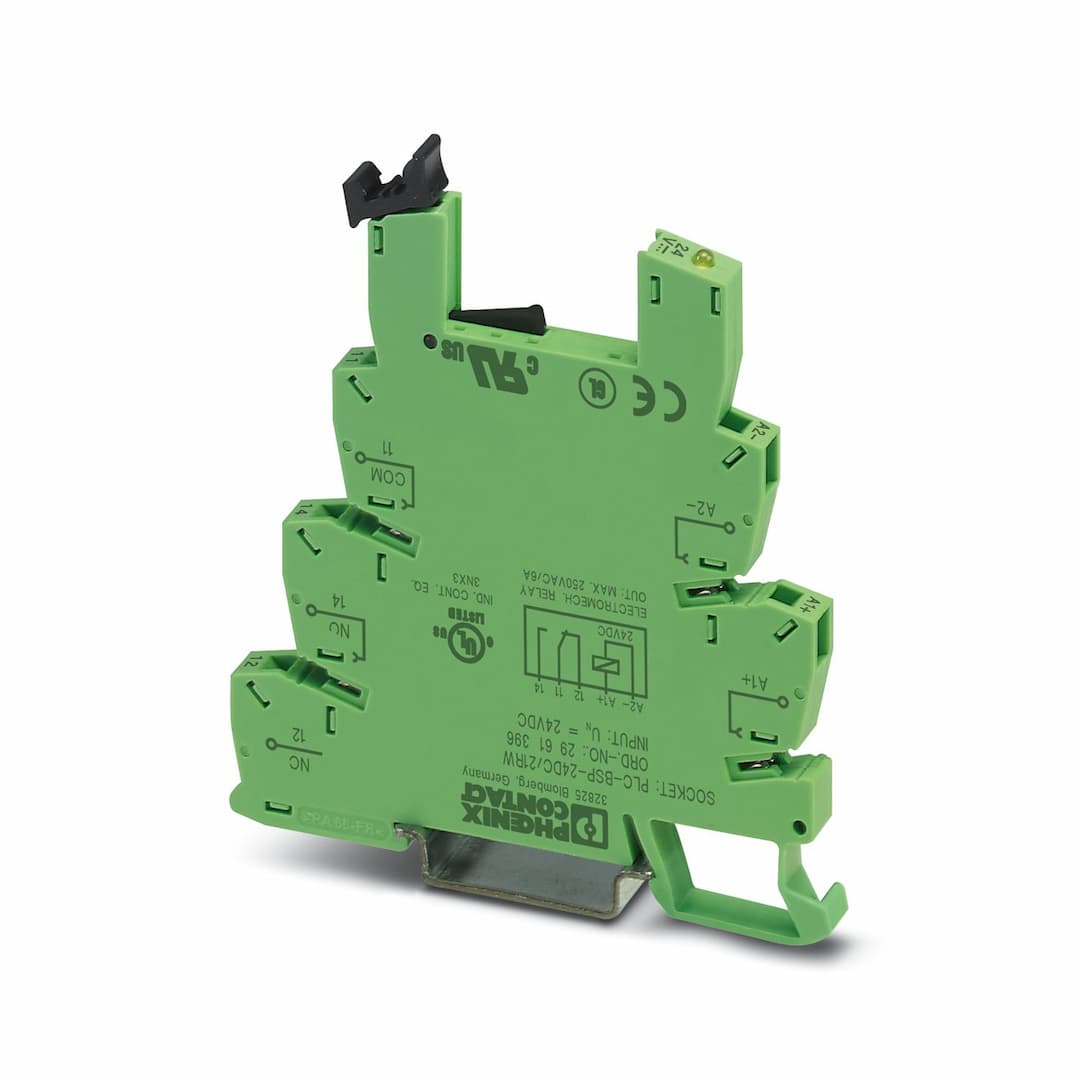

PLC-BSP- 24DC/21RW
Selling Points
- 1Specifically engineered for railway environments with a spring-cage connection.
- 2Operates between -25°C to +70°C, ensuring reliability in various conditions.
- 3Compatible with 24 V DC input voltage, making it versatile for different systems.
- 4Easy to mount on DIN rail NS 35/7,5, facilitating quick installation.
- 5Built with a 6.2 mm PLC basic terminal block, ensuring secure and stable connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Relay socket |
Product family | PLC-INTERFACE | Application | Railway applications |
Operating mode | 100% operating factor | Compatible components | Miniature relay, REL-MR-18DC/21AU, REL-MR-18DC/21 |
Protective circuit | Damping diode, polarity protection diode | Nominal input voltage U | 24 V DC |
Protective circuit | Freewheeling diode | Nominal input voltage U | 24 V DC |
Nominal input voltage U | 24 V DC | Input voltage range in reference to U | 0.65 ... 1.25 |
Typical input current at U | 12 mA | Typical response time | 5 ms |
Typical release time | 8 ms | Operating voltage display | Yellow LED |
Protective circuit | Reverse polarity protection; Polarity protection diode
Freewheeling diode; Freewheeling diode | Compatible components | Miniature relay, REL-MR-18DC/21AU, REL-MR-18DC/21 |
Connection method | Spring-cage connection | Stripping length | 8 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
Conductor cross section AWG | 26 ... 14 | Connection method | Spring-cage connection |
Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
Status display | LED | Width | 6.2 mm |
Height | 80 mm | Depth | 94 mm |
Color | green (RAL 6021) | Flammability rating according to UL 94 | V0 (Housing) |
Ambient temperature (operation) | -25 °C ... 70 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
