Product Model

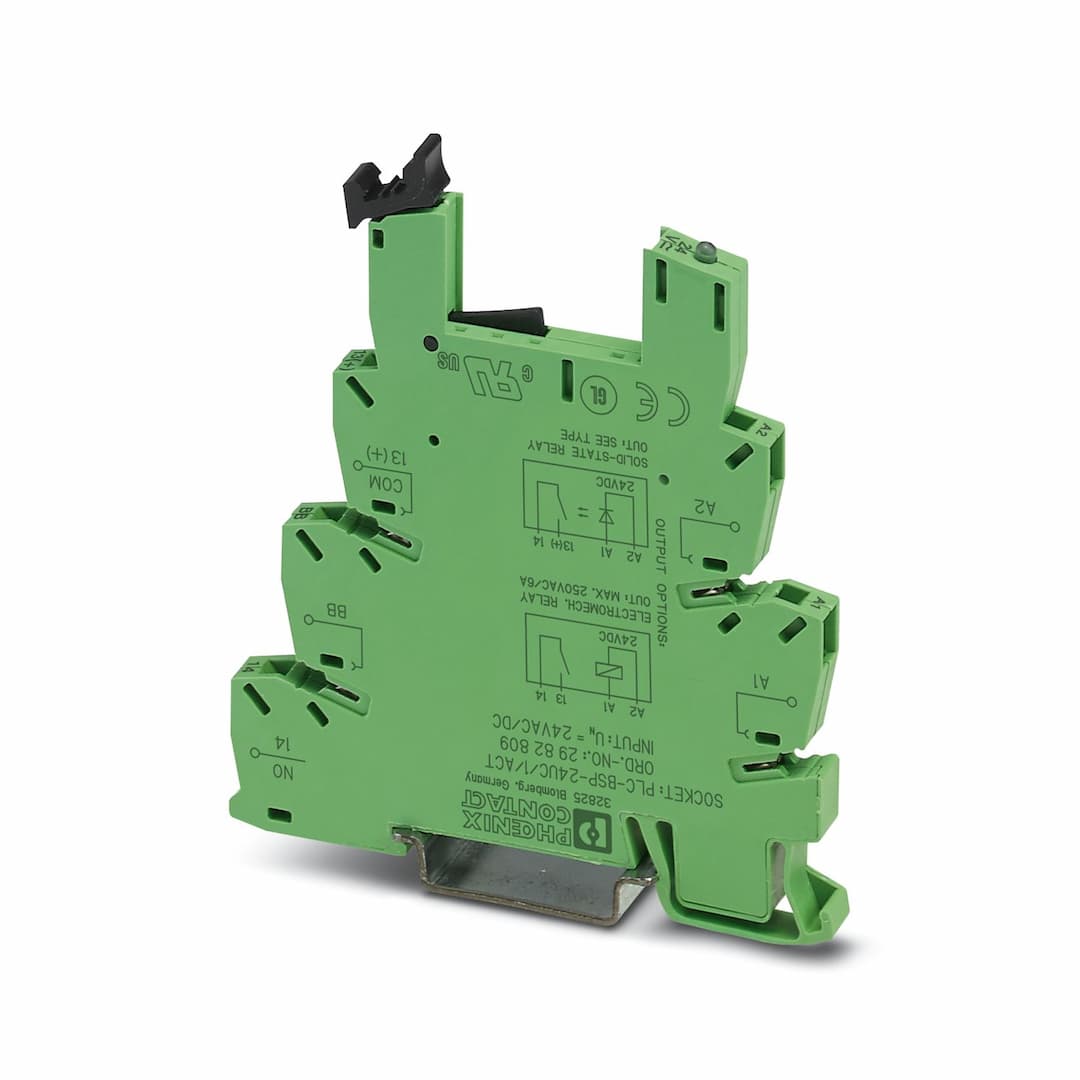

PLC-BSP- 24UC/ 1/ACT
Selling Points
- 1Compatible with miniature relays and optocouplers.
- 2Spring-cage connection for solid and flexible conductors.
- 3Operating temperature range: -40 °C to 85 °C.
- 4Flammability rating according to UL 94 V0.
- 5100% operating factor for consistent performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay socket | Product family | PLC-INTERFACE |
Application | Output function | Operating mode | 100% operating factor |
Compatible components | Miniature relay, REL-MR-24DC/21, REL-MR-24DC/21AU; miniature optocoupler, OPT-24DC/24DC/2, OPT-24DC/48DC/100, OPT-24DC/230AC/1 | Article revision | 03 |
Nominal input voltage U | 24 V AC/DC | Protective circuit | Bridge rectifier |
Nominal input voltage U | 24 V AC/DC | Rated control circuit supply voltage U | 24 V AC/DC |
Voltage range with reference to U | 0.8 ... 1.2 | Typical input current at U | 15.6 mA (50 Hz)
8.5 mA (60 Hz) |
Typical response time | 5 ms | Typical release time | 30 ms |
Operating voltage display | Yellow LED | Protective circuit | Bridge rectifier; Bridge rectifier |
Rated control circuit supply voltage U | 24 V AC/DC | Voltage range with reference to U | 0.8 ... 1.2 |
Typical input current at U | 15 mA (50 Hz)
8.3 mA (60 Hz) | Typical response time | 10 ms |
Typical release time | 20 ms | Operating voltage display | Yellow LED |
Protective circuit | Bridge rectifier; Bridge rectifier | Compatible components | Miniature relay, REL-MR-24DC/21, REL-MR-24DC/21AU; miniature optocoupler, OPT-24DC/24DC/2, OPT-24DC/48DC/100, OPT-24DC/230AC/1 |
Maximum switching voltage | 33 V DC | Minimum switching voltage | 3 V DC |
Limiting continuous current | 3 A (see derating curve) | Voltage drop at max. limiting continuous current | ≤ 150 mV |
Output circuit | 2-conductor, floating | Protective circuit | Reverse polarity protection Parallel polarity protection diode
Surge protection |
Maximum switching voltage | 48 V DC | Minimum switching voltage | 3 V DC |
Limiting continuous current | 100 mA | Voltage drop at max. limiting continuous current | ≤ 1 V |
Output circuit | 2-conductor, floating | Protective circuit | Reverse polarity protection Parallel polarity protection diode
Surge protection |
Maximum switching voltage | 253 V AC | Minimum switching voltage | 24 V AC |
Limiting continuous current | 0.75 A (see derating curve) | Voltage drop at max. limiting continuous current | ≤ 1 V |
Output circuit | 2-conductor floating, zero voltage switch | Protective circuit | RCV circuit |
Leakage current | ≤ 1 mA | Max. load value | 4.5 A |
Connection method | Spring-cage connection | Stripping length | 8 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
Conductor cross section AWG | 26 ... 14 | Connection method | Spring-cage connection |
Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
Width | 6.2 mm | Height | 80 mm |
Depth | 94 mm | Color | green (RAL 6021) |
Flammability rating according to UL 94 | V0 (Housing) | Ambient temperature (operation) | -20 °C ... 60 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
