Product Model

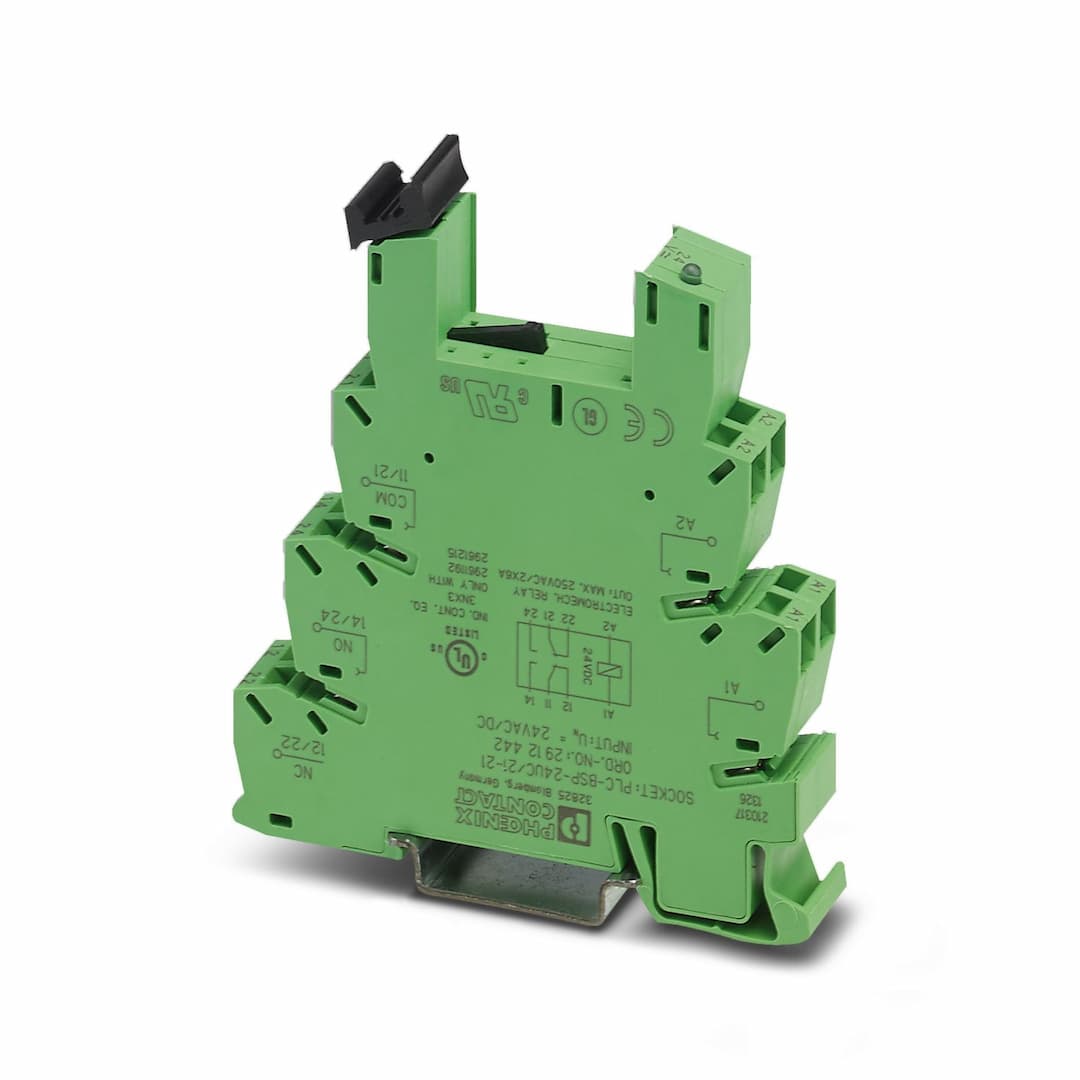

PLC-BSP- 24UC/21-21
Selling Points
- 1Compact design: 14mm width, 80mm height, 94mm depth.
- 2Versatile mounting: Compatible with DIN rail NS 35/7.5.
- 3Reliable connection: Spring-cage connection for secure conductor attachment.
- 4Wide voltage range: Operates with 24V AC/DC input voltage.
- 5Durable construction: Meets EMC class A standards and has a flammability rating of UL 94 V0.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Relay socket |
Product family | PLC-INTERFACE | Application | Universal |
Set comprises | 2912510 PLC-RSP- 24UC/21-21
2912581 PLC-RSP- 24UC/21-21AU | Operating mode | 100% operating factor |
Article revision | 06 | Nominal input voltage U | 24 V AC/DC |
Protective circuit | Bridge rectifier | Nominal input voltage U | 24 V AC/DC |
Connection method | Spring-cage connection | Stripping length | 8 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
Conductor cross section AWG | 26 ... 14 | Connection method | Spring-cage connection |
Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
Width | 14 mm | Height | 80 mm |
Depth | 94 mm | Flammability rating according to UL 94 | V0 (Housing) |
Ambient temperature (operation) | -40 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
