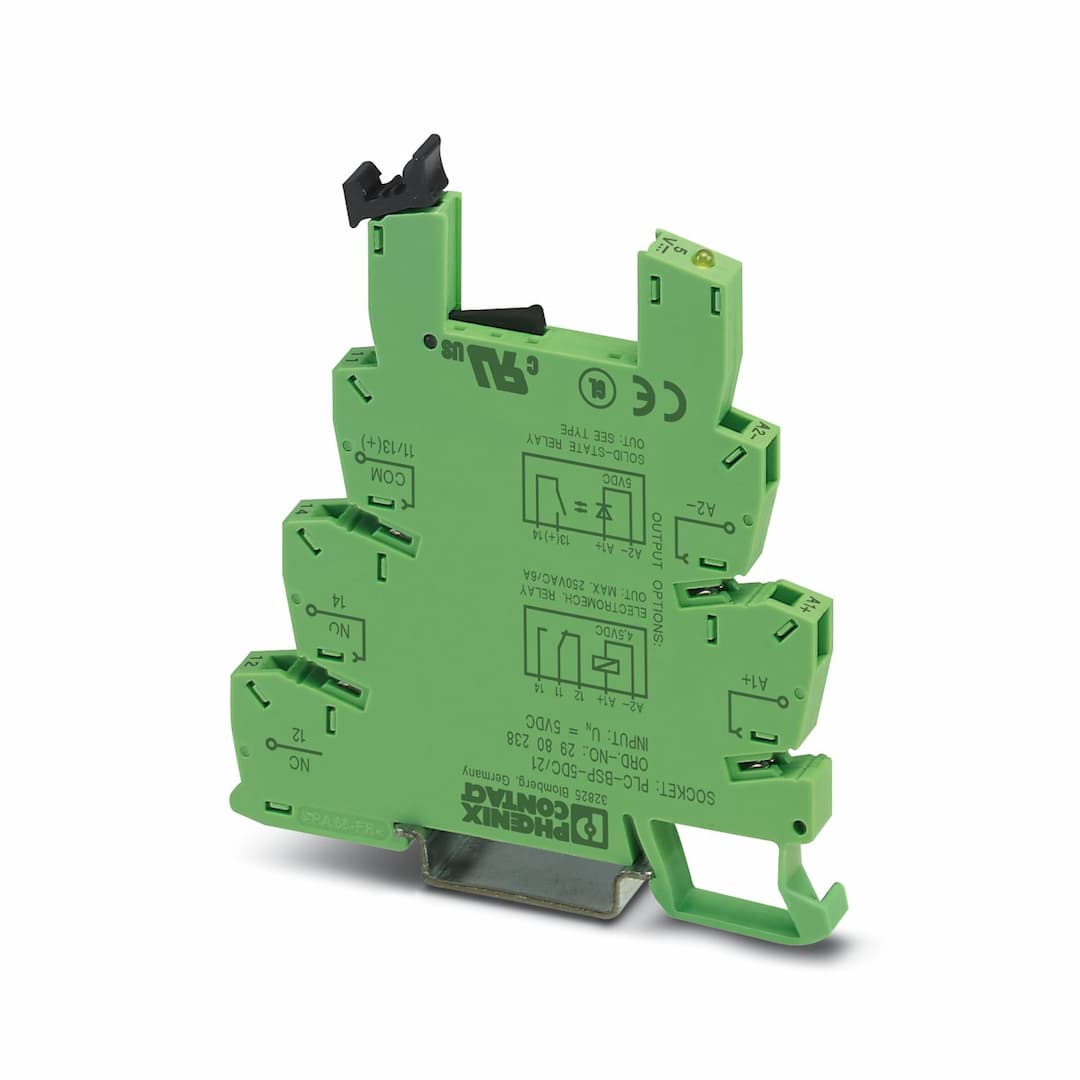

Product Model
PLC-BSP- 5DC/21
Selling Points
- 16.2 mm width, 80 mm height, and 94 mm depth for efficient space utilization.
- 2Compatible with conductors from 0.14 mm² to 2.5 mm² solid and stranded, including AWG 26 to 14.
- 3Equipped with a damping diode for polarity protection and a 100% operating factor.
- 4Spring-cage connection with an 8 mm stripping length for quick and secure wiring.
- 5Meets EMC class A standards and has a flammability rating of UL 94 V0 for enhanced safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay socket | Product family | PLC-INTERFACE |
Application | Universal | Operating mode | 100% operating factor |
Compatible components | Miniature relay, REL-MR-4,5DC/21AU, REL-MR-4,5DC/21 | Protective circuit | Damping diode, polarity protection diode |
Nominal input voltage U | 5 V DC | Protective circuit | Freewheeling diode |
Nominal input voltage U | 5 V DC | Compatible components | Miniature relay, REL-MR-4,5DC/21AU, REL-MR-4,5DC/21 |
Connection method | Spring-cage connection | Stripping length | 8 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
Conductor cross section AWG | 26 ... 14 | Connection method | Spring-cage connection |
Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
Status display | LED | Width | 6.2 mm |
Height | 80 mm | Depth | 94 mm |
Color | green (RAL 6021) | Flammability rating according to UL 94 | V0 (Housing) |
Ambient temperature (operation) | -25 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Mounting type | DIN rail mounting | Mounting position | any |
Specifications may be subject to change without notice
