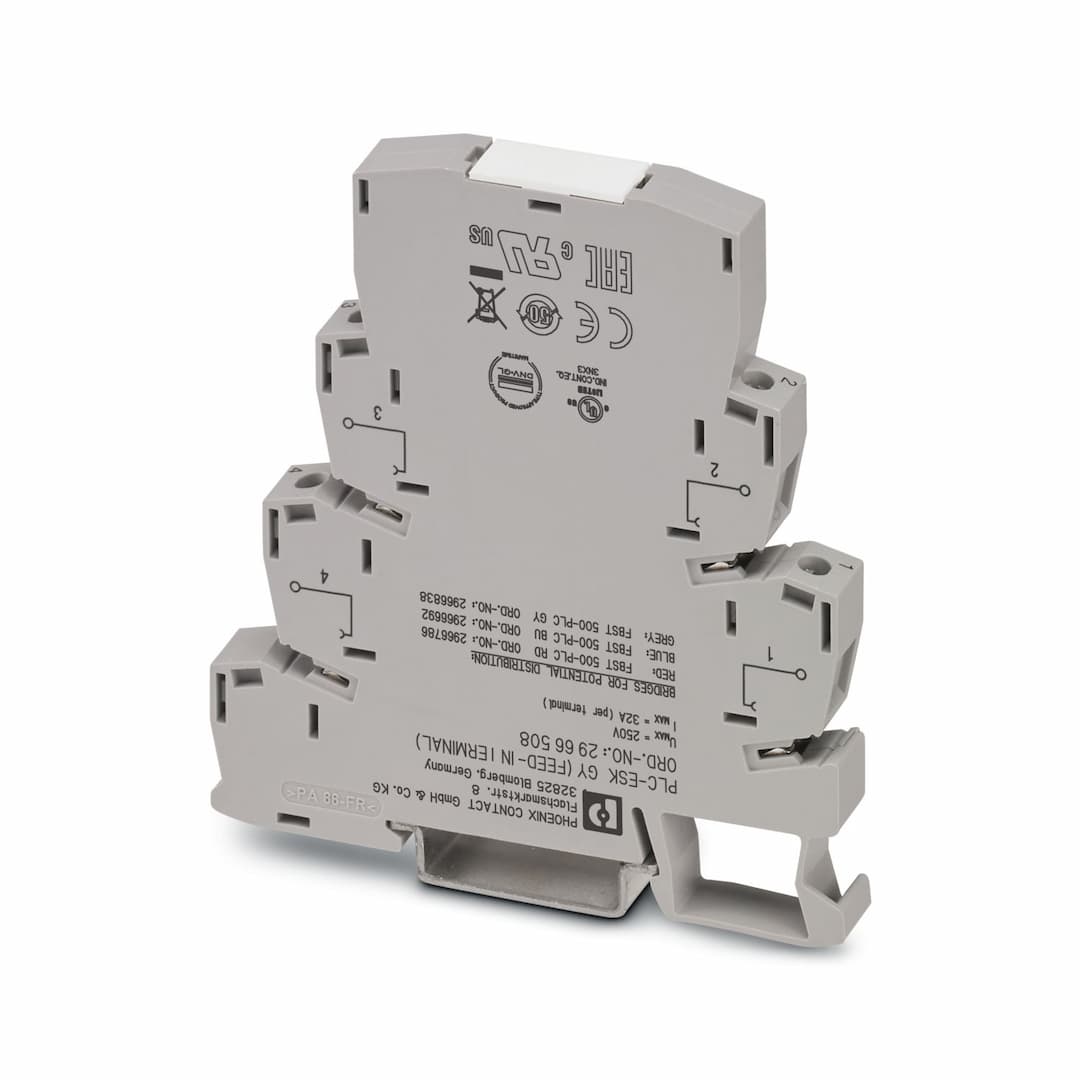

Phoenix Contact PLC-ESK GY Power Terminal Block 2966508

Selling Points

1High-Quality Construction: Made from thermoplastic insulation body for durability and reliability.
2Versatile Connectivity: Supports up to four potentials with screw connections, suitable for various conductor cross sections.
3DIN Rail Mounting: Designed for easy installation on NS 35/7.5 DIN rail, ensuring compact and organized electrical systems.
4Wide Operating Range: Operates within an ambient temperature range of -25°C to 60°C, making it suitable for various environments.
5Compliance and Safety: Meets CUL standards and is WEEE/RoHS compliant, ensuring product safety and environmental responsibility.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Product type	Power module	Product family	PLC-INTERFACE
Article revision	08	Operating voltage (AC/DC)	250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...)
Current (Total current)	32 A	Connection method	Screw connection
Conductor cross section rigid	0.2 mm² ... 4 mm²	Conductor cross section flexible	0.2 mm² ... 4 mm²
Conductor cross section AWG	24 ... 10	Width	9 mm
Height	80 mm	Depth	85.7 mm
Color	gray (RAL 7042)	Ambient temperature (operation)	-25 °C ... 60 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C	Certificate	CE-compliant
Certificate	UKCA-compliant	Certificate	TAE0000196
Identification	ISA-S71.04. G3 Harsh Group EN 60068-2-60	Temperature	D
Humidity	A	Vibration	B/C
EMC	B	Enclosure	Required protection according to the Rules shall be provided upon installation on board
Electromagnetic compatibility	Conformance with EMC directive	Low Voltage Directive	Conformance with Low Voltage Directive
Mounting type	DIN rail mounting

Specifications may be subject to change without notice
