Product Model

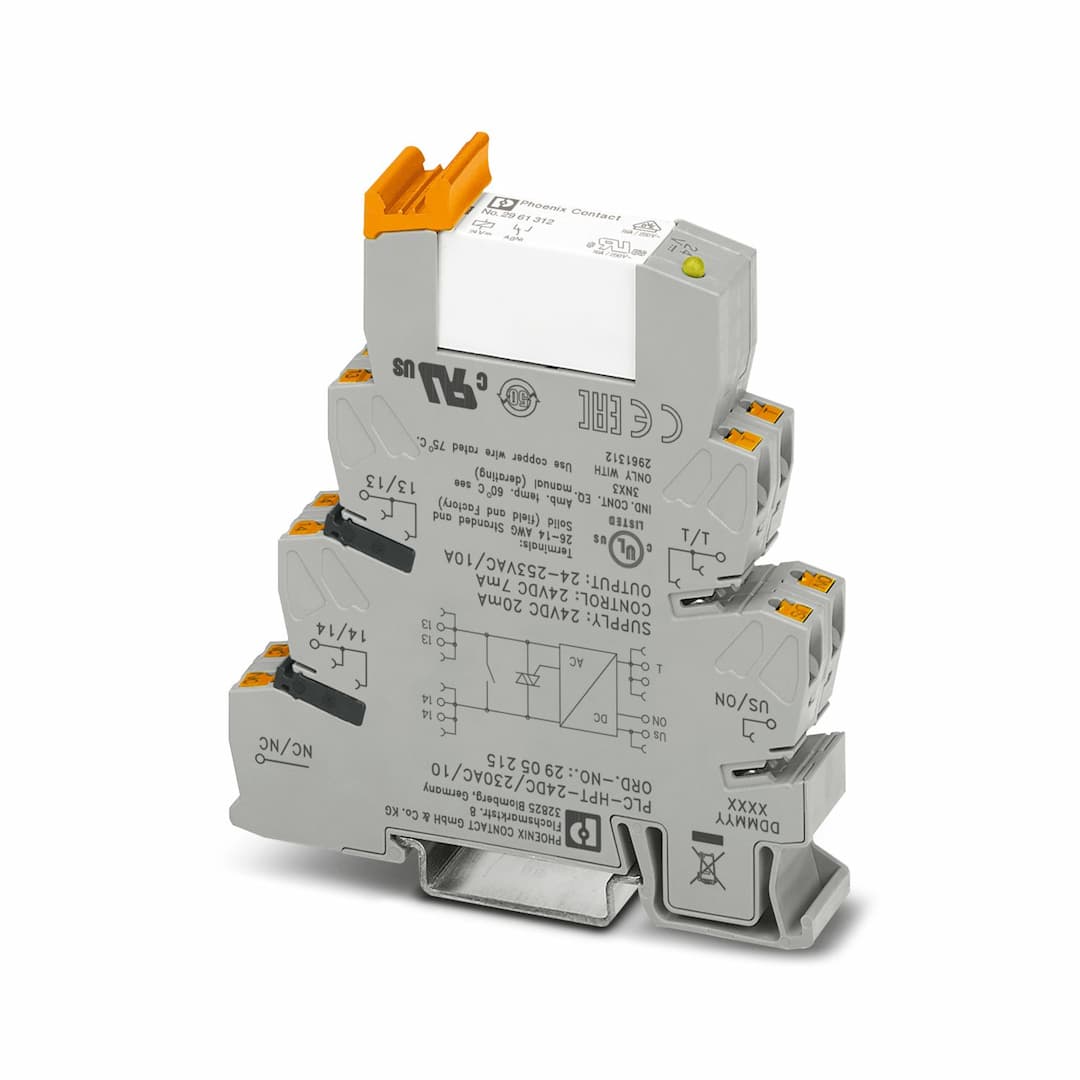

PLC-HPT-24DC/230AC/10
Selling Points
- 1High Reliability: Built with 100% original packaging and backed by a 12-month warranty for maximum trust in performance.
- 2Efficient Operation: Rated control supply current of 14 mA (input low, output low) and 19 mA (input high, output high) ensures minimal energy consumption.
- 3Versatile Voltage Handling: Compatible with both 24 DC and 230 AC voltages, making it suitable for a wide range of industrial applications.
- 4Quick Response Time: Designed for rapid switching with a response time that meets the demands of modern industrial control systems.
- 5Secure Connections: Features screw connections with a stripping length of 8 mm and M3 screw thread for secure and stable connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state relay module | Product family | PLC-INTERFACE |
Application | Output function | Operating mode | 100% operating factor |
Date of last data management | 14.10.2024 | Article revision | 04 |
Insulation | safe isolation | Overvoltage category | III |
Pollution degree | 2 | Test voltage | 4 kV |
Rated insulation voltage | 260 V AC | Rated surge voltage | 6 kV |
Rated control circuit supply voltage U | 24 V DC | Voltage range with reference to U | 0.8 ... 1.2 |
Rated control supply current I | ≤ 19 mA | Rated actuating voltage U | 24 V DC |
Voltage range with reference to U | 0.8 ... 1.2 | Rated actuating current I | 6.8 mA |
Nominal voltage (plugged-in solid-state relay) | 24 V DC | "0" signal switching threshold in reference to U | < 0.4 |
"1" signal switching threshold in reference to U | > 0.8 | Typical response time | 30 ms |
Typical turn-off time | 20 ms | Status display | LED (yellow) |
Protective circuit | Reverse polarity protection
Surge protection | Surge voltage protection | > 33 V DC |
Transmission frequency | 1 Hz | Designation | AC hybrid output |
Contact switching type | 1 N/O contact | Design of digital output | electronic |
Output voltage range | 24 V AC ... 253 V AC (50/60 Hz) | Limiting continuous current | 10 A (see derating curve) |
Min. load current | 100 mA | Leakage current | < 1 mA |
Surge current | 250 A (tp = 20 ms, at 25 °C) | Max. load value | 350 A |
Surge voltage protection | > 275 V | Output circuit | 2-conductor, floating |
Protective circuit | Varistor | Connection method | Push-in connection |
Stripping length | 10 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
Width | 14 mm | Height | 80 mm |
Depth | 94 mm | Color | gray (RAL 7042) |
Degree of protection (Relay base) | IP20 (Relay base) | Degree of protection (Relay) | RT II (Relay) |
Degree of protection (Installation location) | IP54 (Installation location) | Ambient temperature (operation) | -25 °C ... 60 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Altitude | ≤ 2000 m |
Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Standards/regulations | IEC 60947-5-1 |
Mounting type | DIN rail mounting | Assembly note | See derating curve |
Mounting position | any |
Specifications may be subject to change without notice
