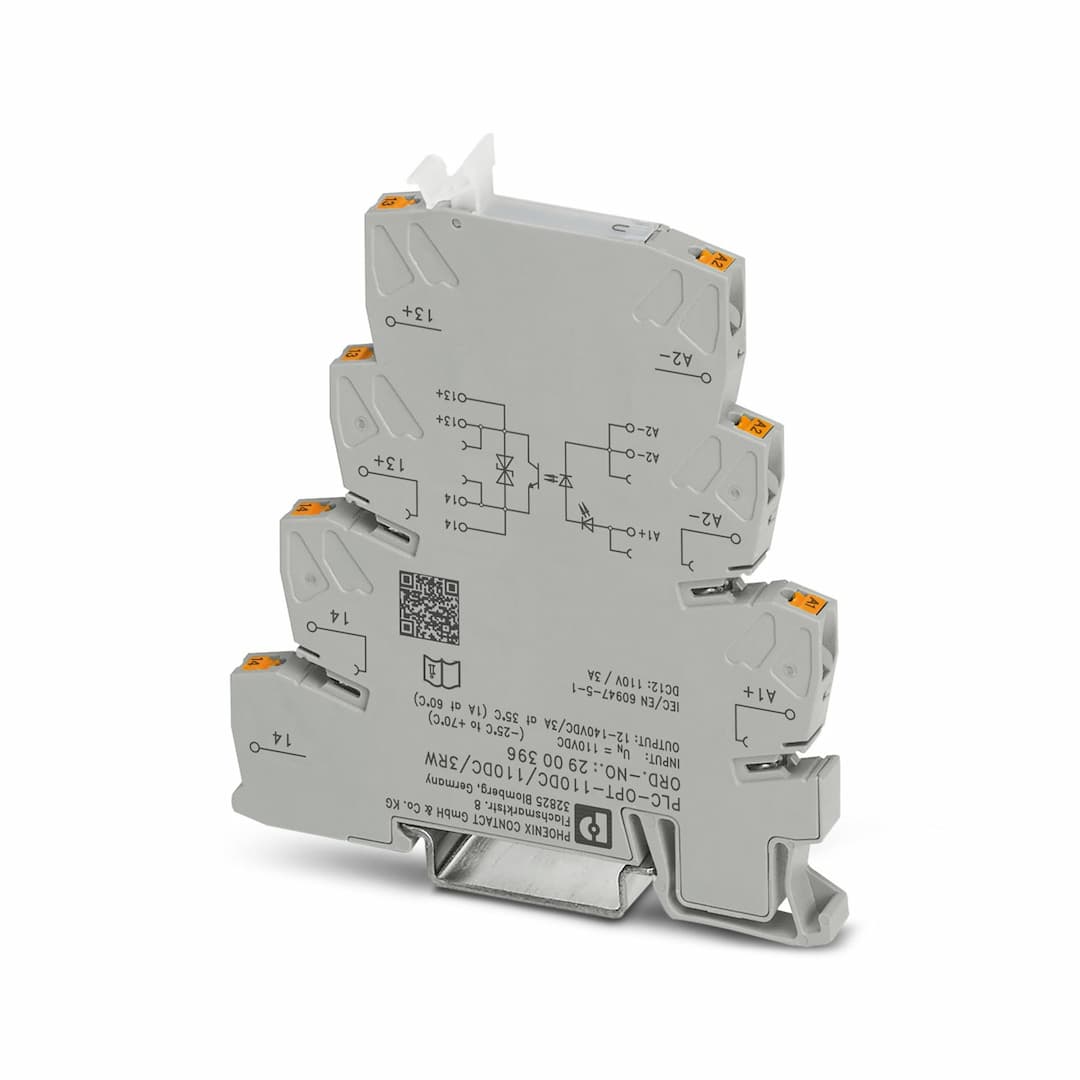

Product Model
PLC-OPT-110DC/110DC/3RW
Selling Points
- 1400 µs response time ensures quick and reliable switching.
- 2Equipped with reverse polarity protection, surge protection, and a protective circuit for secure operation.
- 3Input voltage range of 88 V DC to 132 V DC and output voltage range of 12 V DC to 300 V DC.
- 4100% operating factor and 1 N/O contact for seamless operation.
- 5Push-in connection with stripping length of 10 mm for effortless mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state relay module | Product family | PLC-INTERFACE |
Application | Railway applications | Operating mode | 100% operating factor |
Date of last data management | 16.09.2024 | Article revision | 07 |
Insulation | Basic insulation | Overvoltage category | III |
Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.6 W |
Test voltage (Input/output) | 2.5 kV AC (Input/output) | Rated insulation voltage | 160 V |
Rated surge voltage | 4 kV | Nominal input voltage U | 110 V DC |
Input voltage range in reference to U | 0.7 ... 1.25 (t < 1 s = 0.6 ... 1.4 x U | Input voltage range | 77 V DC ... 137.5 V DC |
Switching threshold "0" signal in reference to U | < 0.3 | Switching threshold "1" signal in reference to U | > 0.6 |
Typical input current at U | 5.5 mA | Typical response time | 400 µs |
Typical turn-off time | 800 µs | Operating voltage display | Yellow LED |
Protective circuit | Reverse polarity protection; Series polarity protection diode
Surge protection | Surge voltage protection | > 150 V |
Transmission frequency | 50 Hz | Contact switching type | 1 N/O contact |
Design of digital output | electronic | Output nominal voltage | 110 V DC |
Output voltage range | 12 V DC ... 140 V DC (t < 1 s = 1.40 x U | Limiting continuous current | 3 A (see derating curve) |
Surge voltage protection | > 150 V | Voltage drop at max. limiting continuous current | < 150 mV |
Output circuit | 2-conductor, floating | Protective circuit | Reverse polarity protection; Parallel polarity protection diode
Surge protection |
Connection method | Push-in connection | Stripping length | 10 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) |
Conductor cross section AWG | 26 ... 14 | Width | 6.2 mm |
Height | 80 mm | Depth | 94 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 (Housing) |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 70 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Certificate | CE-compliant |
Certificate | UKCA-compliant | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Certificate | TAE0000196 | Temperature | D |
Humidity | A | Vibration | B |
EMC | B | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Electromagnetic compatibility | Conformance with EMC directive | Low Voltage Directive | Conformance with Low Voltage Directive |
Standards/regulations | IEC 60947-5-1 | Standards/regulations | DIN EN 50155 (in relevant parts) |
Standards/regulations | DNVGL-CG-0339 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
