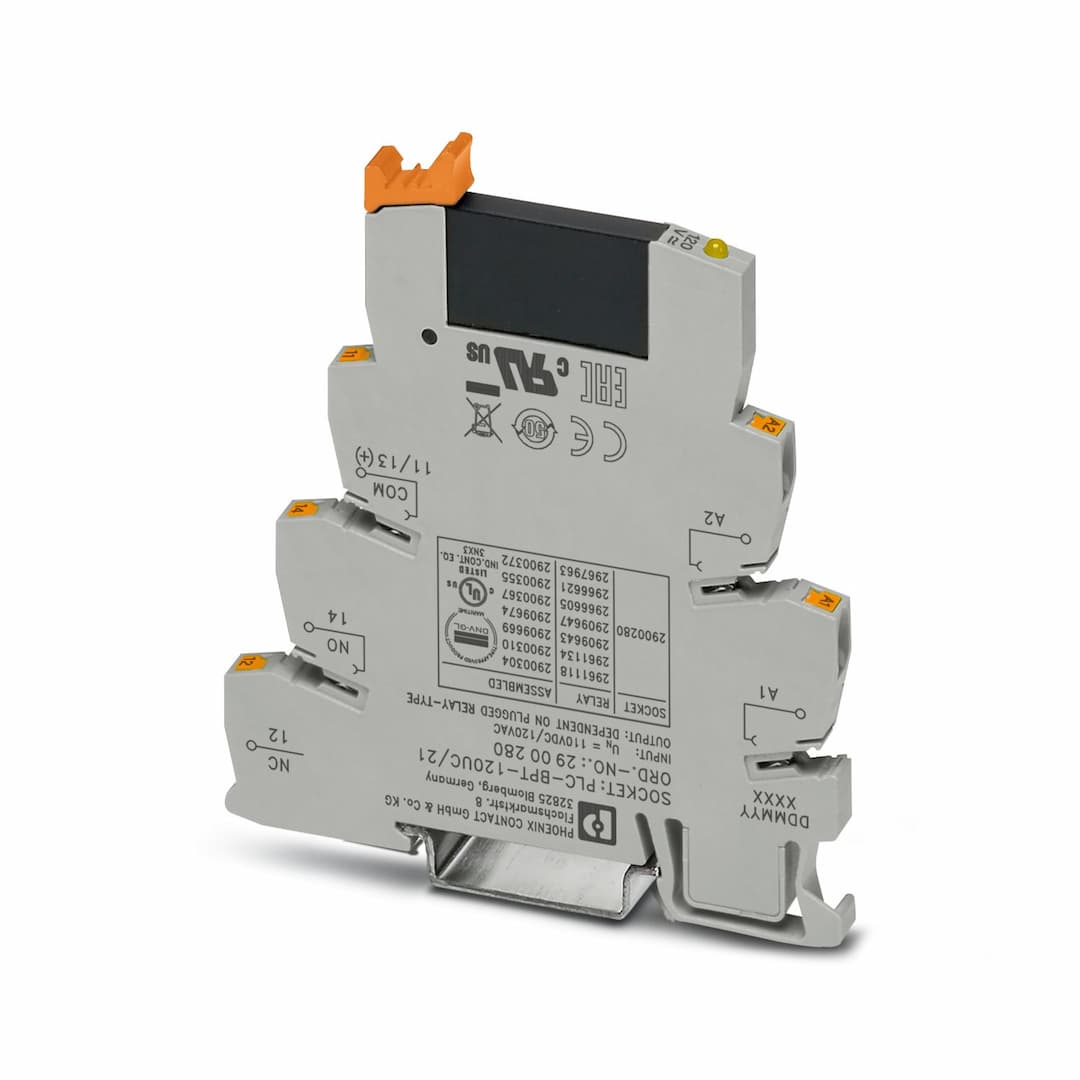

Product Model
PLC-OPT-120UC/ 48DC/100
Selling Points
- 1Efficient Connection: Slim design with push-in connections for easy system integration.
- 2Robust Protection: Zero voltage switch at AC output and reverse polarity protection for secure operation.
- 3High Switching Power: Integrated input circuit with a nominal input voltage of 120 V AC/110 V DC.
- 4Quick Response Time: Typical response time of 3 ms and turn-off time of 4 ms for rapid switching.
- 5Durable Construction: Operating ambient temperature range from -25 °C to 60 °C, ensuring reliable performance in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state relay module | Product family | PLC-INTERFACE |
Application | Universal | Operating mode | 100% operating factor |
Date of last data management | 07.05.2024 | Article revision | 05 |
Insulation | Basic insulation | Overvoltage category | III |
Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.42 W |
Test voltage (Input/output) | 2.5 kV (50 Hz, 1 min., input/output) | Nominal input voltage U | 120 V AC
110 V DC |
Nominal voltage (plugged-in solid-state relay) | 60 V DC | Input voltage range in reference to U | 0.9 ... 1.1 |
Input voltage range | 108 V AC ... 132 V AC
99 V DC ... 121 V DC | Switching threshold "0" signal in reference to U | ≤ 0.3 |
Switching threshold "1" signal in reference to U | ≥ 0.9 | Typical input current at U | 3.5 mA |
Typical response time | 3 ms (at U | Typical turn-off time | 4 ms (at U |
Operating voltage display | Yellow LED | Protective circuit | Bridge rectifier; Bridge rectifier |
Transmission frequency | 10 Hz | Contact switching type | 1 N/O contact |
Design of digital output | electronic | Output voltage range | 3 V DC ... 48 V DC |
Limiting continuous current | 100 mA | Voltage drop at max. limiting continuous current | ≤ 1 V |
Output circuit | 2-conductor, floating | Protective circuit | Reverse polarity protection; Polarity protection diode
Surge protection |
Connection method | Push-in connection | Stripping length | 10 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) |
Conductor cross section AWG | 26 ... 14 | Width | 6.2 mm |
Height | 80 mm | Depth | 94 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 (Housing) |
Ambient temperature (operation) | -25 °C ... 60 °C | Ambient temperature (storage/transport) | -25 °C ... 70 °C |
Certificate | CE-compliant | Certificate | UKCA-compliant |
Certificate | TAE0000196 | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Temperature | D | Humidity | A |
Vibration | B/C | EMC | B |
Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
Low Voltage Directive | Conformance with Low Voltage Directive | Standards/regulations | IEC 60947-5-1 |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
