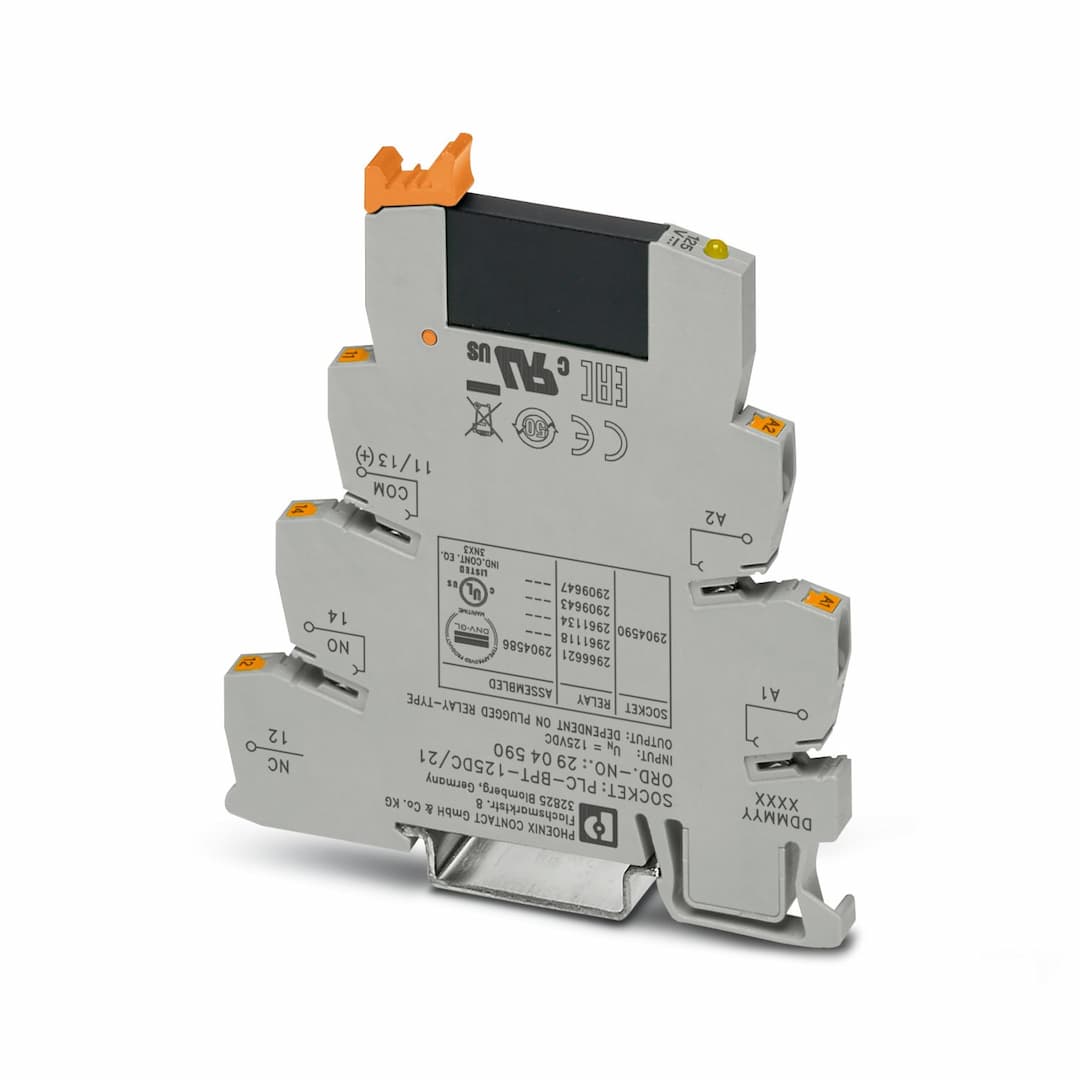

Product Model
PLC-OPT-125DC/ 48DC/100
Selling Points
- 11 ms for quick and reliable switching.
- 2Operates from 100 V DC to 137.5 V DC.
- 3Typical input current at UN is 3 mA.
- 42-conductor, floating output circuit with push-in connection.
- 5Suitable for various industrial settings with 1 N/O contact.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state relay module | Product family | PLC-INTERFACE |
Application | Universal | Operating mode | 100% operating factor |
Date of last data management | 07.05.2024 | Article revision | 02 |
Insulation | Basic insulation | Overvoltage category | III |
Pollution degree | 2 | Test voltage (Input/output) | 2.5 kV (50 Hz, 1 min., input/output) |
Nominal input voltage U | 125 V DC | Nominal voltage (plugged-in solid-state relay) | 60 V DC |
Input voltage range in reference to U | 0.8 ... 1.1 | Input voltage range | 100 V DC ... 137.5 V DC |
Switching threshold "0" signal in reference to U | ≤ 0.4 | Switching threshold "1" signal in reference to U | ≥ 0.8 |
Typical input current at U | 3 mA | Typical response time | 1 ms (at U |
Typical turn-off time | 3 ms (at U | Status display | LED (yellow) |
Transmission frequency | 50 Hz | Contact switching type | 1 N/O contact |
Design of digital output | electronic | Output voltage range | 3 V DC ... 48 V DC |
Limiting continuous current | 100 mA | Voltage drop at max. limiting continuous current | ≤ 1 V |
Output circuit | 2-conductor, floating | Protective circuit | Reverse polarity protection; Polarity protection diode
Surge protection |
Contact switching type | 1 N/O contact | Connection method | Push-in connection |
Stripping length | 10 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
Width | 6.2 mm | Height | 80 mm |
Depth | 94 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V0 (Housing) | Ambient temperature (operation) | -25 °C ... 60 °C |
Ambient temperature (storage/transport) | -25 °C ... 70 °C | Certificate | CE-compliant |
Certificate | UKCA-compliant | Certificate | TAE0000196 |
Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Temperature | D |
Humidity | A | Vibration | B/C |
EMC | B | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Electromagnetic compatibility | Conformance with EMC directive | Low Voltage Directive | Conformance with Low Voltage Directive |
Standards/regulations | IEC 60947-5-1 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
