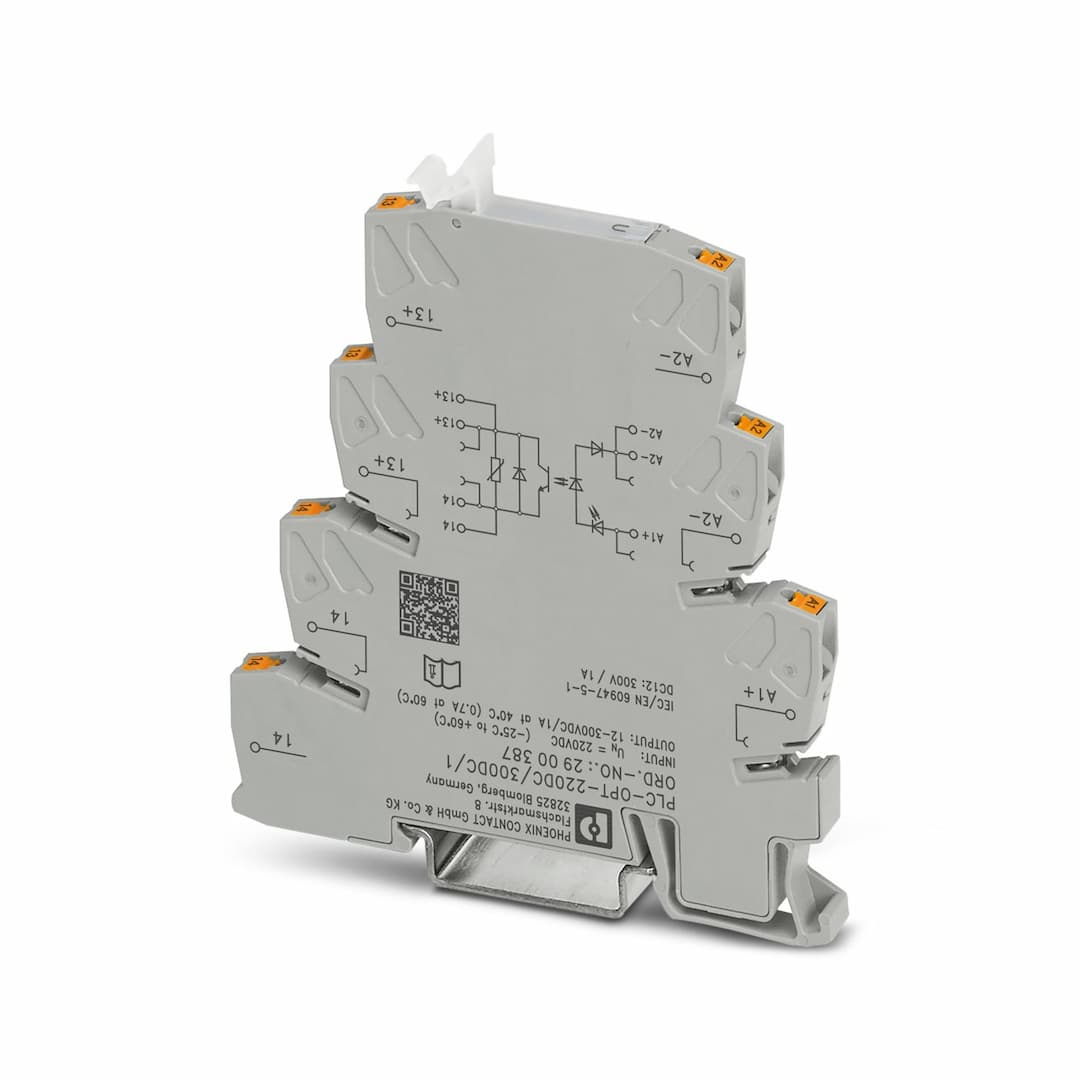

Product Model
PLC-OPT-220DC/300DC/1
Selling Points
- 1Operates at 220 V DC with an input voltage range of 176 V DC to 264 V DC.
- 2Provides quick and reliable switching with a typical response time of 0.4 ms.
- 3Features a typical input current of 3 mA, ensuring efficient energy consumption.
- 4Offers a push-in connection design for secure and stable connections.
- 5Designed for integrated solid-state relay applications in industrial settings with overvoltage category III protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state relay module | Product family | PLC-INTERFACE |
Application | With integrated solid-state relay | Operating mode | 100% operating factor |
Date of last data management | 16.09.2024 | Article revision | 07 |
Insulation | Basic insulation | Overvoltage category | III |
Pollution degree | 2 | Maximum power dissipation for nominal condition | 1.23 W |
Rated insulation voltage | 300 V | Rated surge voltage | 2.5 kV |
Nominal input voltage U | 220 V DC | Input voltage range in reference to U | 0.8 ... 1.2 |
Input voltage range | 176 V DC ... 264 V DC | Switching threshold "0" signal in reference to U | ≤ 0.4 |
Switching threshold "1" signal in reference to U | ≥ 0.8 | Typical input current at U | 3 mA |
Typical response time | 0.4 ms | Typical turn-off time | 1.4 ms |
Operating voltage display | Yellow LED | Protective circuit | Reverse polarity protection; Polarity protection diode
Surge protection; Varistor |
Transmission frequency | 50 Hz | Designation | Output data |
Contact switching type | 1 N/O contact | Design of digital output | electronic |
Output voltage range | 12 V DC ... 300 V DC (Partition plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal points in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...) | Limiting continuous current | 1 A (see derating curve) |
Voltage drop at max. limiting continuous current | < 500 mV | Protective circuit | Reverse polarity protection; Polarity protection diode
Surge protection; Varistor |
Connection method | Push-in connection | Stripping length | 10 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) |
Conductor cross section AWG | 26 ... 14 | Width | 6.2 mm |
Height | 80 mm | Depth | 94 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 (Housing) |
Ambient temperature (operation) | -25 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Certificate | CE-compliant | Certificate | UKCA-compliant |
Certificate | TAE0000196 | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Temperature | D | Humidity | A |
Vibration | B/C | EMC | B |
Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
Low Voltage Directive | Conformance with Low Voltage Directive | Standards/regulations | IEC 60947-5-1 |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
