Product Model
PLC-OPT-230AC/300DC/1
Selling Points
- 1Operates at 8.4 mA typical input current, ensuring efficient energy usage.
- 2Provides quick and reliable switching with a response time of 19 ms.
- 3Supports output voltage range from 12 V DC to 300 V DC, making it suitable for various applications.
- 4Features a protective circuit with reverse polarity protection and a low voltage drop of < 500 mV at maximum limiting current.
- 5Built with a push-in connection and designed for mounting on NS 35/7,5 DIN rails, ensuring secure and stable connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state relay module | Product family | PLC-INTERFACE |
Application | With integrated solid-state relay | Operating mode | 100% operating factor |
Date of last data management | 16.09.2024 | Article revision | 07 |
Insulation | Basic insulation | Overvoltage category | III |
Pollution degree | 2 | Maximum power dissipation for nominal condition | 1.93 W |
Rated insulation voltage | 300 V | Rated surge voltage | 2.5 kV |
Nominal input voltage U | 230 V AC | Input voltage range in reference to U | 0.8 ... 1.1 |
Input voltage range | 184 V AC ... 253 V AC | Switching threshold "0" signal in reference to U | ≤ 0.4 |
Switching threshold "1" signal in reference to U | ≥ 0.8 | Typical input current at U | 8.4 mA |
Typical response time | 19 ms | Typical turn-off time | 6 ms |
Operating voltage display | Yellow LED | Protective circuit | Bridge rectifier; Bridge rectifier |
Transmission frequency | 10 Hz | Designation | Output data |
Contact switching type | 1 N/O contact | Design of digital output | electronic |

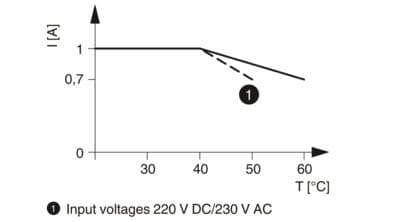

Output voltage range | 12 V DC ... 300 V DC (Partition plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal points in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...) | Limiting continuous current | 1 A (see derating curve) |
Voltage drop at max. limiting continuous current | < 500 mV | Protective circuit | Reverse polarity protection; Polarity protection diode
Surge protection; Varistor |
Connection method | Push-in connection | Stripping length | 10 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) |
Conductor cross section AWG | 26 ... 14 | Width | 6.2 mm |
Height | 80 mm | Depth | 94 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 (Housing) |
Ambient temperature (operation) | -25 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Certificate | CE-compliant | Certificate | UKCA-compliant |
Certificate | TAE0000196 | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Temperature | D | Humidity | A |
Vibration | B/C | EMC | B |
Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
Low Voltage Directive | Conformance with Low Voltage Directive | Standards/regulations | IEC 60947-5-1 |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
