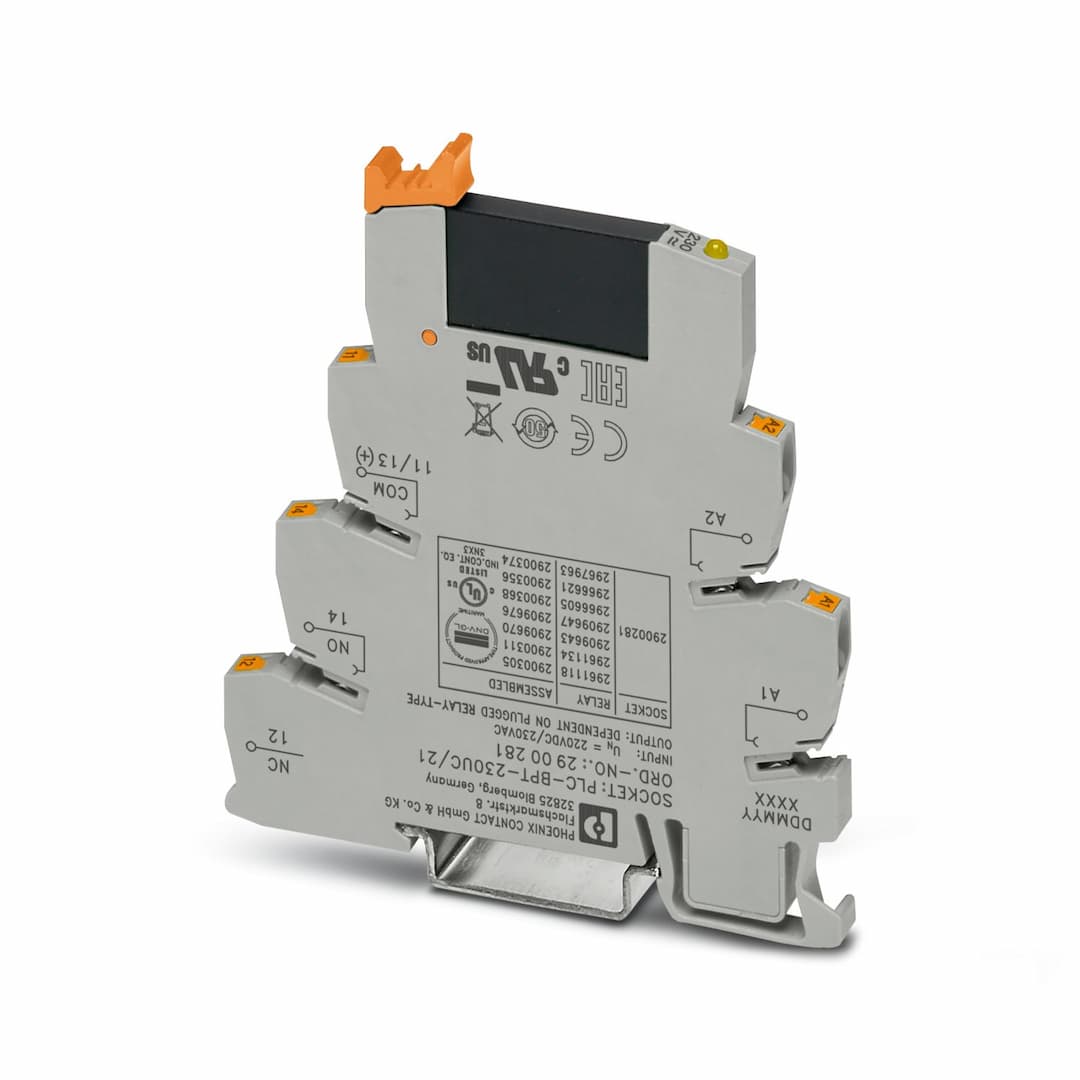

Product Model
PLC-OPT-230UC/ 24DC/2
Selling Points
- 1DIN Rail Mounting: Easily mount on DIN rail for compact and efficient installation.
- 2SPST Configuration: Single-pole, single-throw (SPST) contact configuration for precise control.
- 3Push-In Terminals: Fast and tool-free connection using push-in terminals for quick setup.
- 4Reliable Switching: Solid state technology ensures fast and reliable switching with minimal response time.
- 5Industrial Grade: Designed for industrial applications with operating temperatures ranging from -25°C to +60°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state relay module | Product family | PLC-INTERFACE |
Application | Universal | Operating mode | 100% operating factor |
Date of last data management | 07.05.2024 | Article revision | 05 |
Insulation | Basic insulation | Overvoltage category | III |
Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.981 W |
Test voltage (Input/output) | 2.5 kV (50 Hz, 1 min., input/output) | Nominal input voltage U | 230 V AC
220 V DC |
Nominal voltage (plugged-in solid-state relay) | 60 V DC | Input voltage range in reference to U | 0.9 ... 1.1 |
Input voltage range | 207 V AC ... 253 V AC
198 V DC ... 242 V DC | Switching threshold "0" signal in reference to U | ≤ 0.3 |
Switching threshold "1" signal in reference to U | ≥ 0.8 | Typical input current at U | 3.5 mA |
Typical response time | 4 ms (at U | Typical turn-off time | 7 ms (at U |
Operating voltage display | Yellow LED | Protective circuit | Bridge rectifier; Bridge rectifier |
Transmission frequency | 10 Hz | Contact switching type | 1 N/O contact |
Design of digital output | electronic | Output voltage range | 3 V DC ... 33 V DC |
Limiting continuous current | 3 A (see derating curve) | Maximum inrush current | 15 A (10 ms) |
Voltage drop at max. limiting continuous current | ≤ 200 mV | Output circuit | 2-conductor, floating |
Protective circuit | Reverse polarity protection; Polarity protection diode
Surge protection | Connection method | Push-in connection |
Stripping length | 10 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
Width | 6.2 mm | Height | 80 mm |
Depth | 94 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V0 (Housing) | Ambient temperature (operation) | -25 °C ... 60 °C |
Ambient temperature (storage/transport) | -25 °C ... 70 °C | Certificate | CE-compliant |
Certificate | UKCA-compliant | Certificate | TAE0000196 |
Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Temperature | D |
Humidity | A | Vibration | B/C |
EMC | B | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Electromagnetic compatibility | Conformance with EMC directive | Low Voltage Directive | Conformance with Low Voltage Directive |
Standards/regulations | IEC 60947-5-1 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
