Phoenix Contact PLC-OPT- 24DC/110DC/3RW

Selling Points

  • 1Meets DIN 50155 and EN 61373 standards for railway applications.
  • 2Operates with a nominal input voltage of 24 V DC and a range of 16.8 V DC to 30 V DC.
  • 3Includes a typical response time of 400 µs and a turn-off time of 200 µs.
  • 4Offers reverse polarity protection and surge protection with a rated surge voltage of 4 kV.
  • 5Designed for operation in a temperature range of -25°C to +70°C with IP20 protection.
Product Details

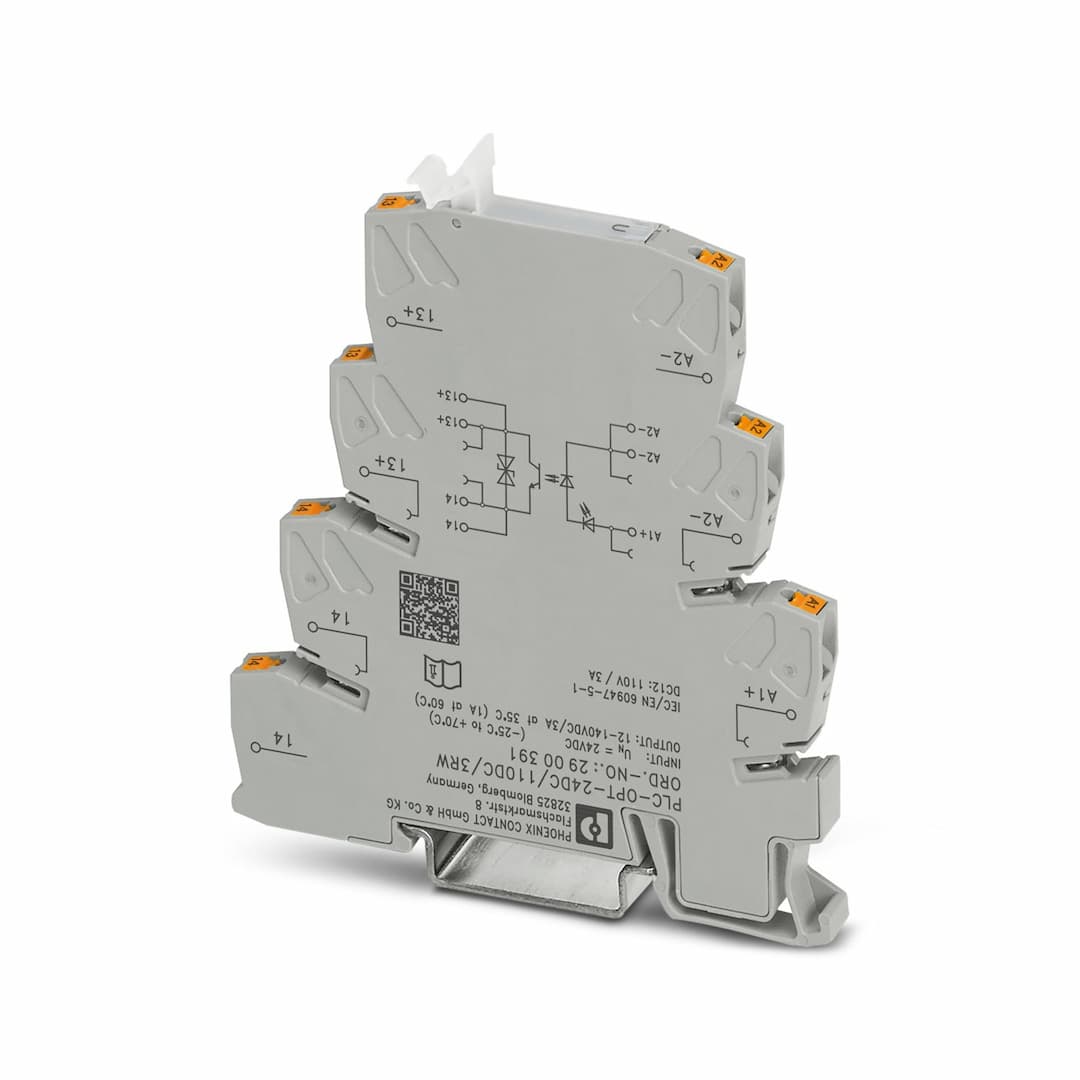

PLC-OPT- 24DC/110DC/3RW
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product type
Solid-state relay module
Product family
PLC-INTERFACE
Application
Railway applications
Operating mode
100% operating factor
Date of last data management
16.09.2024
Article revision
07
Insulation
Basic insulation
Overvoltage category
III
Pollution degree
2
Maximum power dissipation for nominal condition
0.29 W
Test voltage (Input/output)
2.5 kV AC (Input/output)
Rated insulation voltage
160 V
Rated surge voltage
4 kV
Nominal input voltage U
24 V DC
Input voltage range in reference to U
0.7 ... 1.25 (t < 1 s = 0.6 ... 1.4 x U
Input voltage range
16.8 V DC ... 30 V DC
Switching threshold "0" signal in reference to U
< 0.4
Switching threshold "1" signal in reference to U
> 0.6
Typical input current at U
12 mA
Typical response time
400 µs
Typical turn-off time
800 µs
Operating voltage display
Yellow LED
Protective circuit
Reverse polarity protection; Series polarity protection diode Surge protection
Surge voltage protection
> 150 V
Transmission frequency
50 Hz
Contact switching type
1 N/O contact
Design of digital output
electronic
Output nominal voltage
110 V DC
Output voltage range
12 V DC ... 140 V DC (t < 1 s = 1.40 x U
Limiting continuous current
3 A (see derating curve)
Surge voltage protection
> 150 V
Voltage drop at max. limiting continuous current
< 150 mV
Output circuit
2-conductor, floating
Protective circuit
Reverse polarity protection; Parallel polarity protection diode Surge protection
Connection method
Push-in connection
Stripping length
10 mm
Conductor cross section rigid
0.14 mm² ... 2.5 mm²
Conductor cross section flexible
0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1 mm² (TWIN ferrule)
Conductor cross section AWG
26 ... 14
Width
6.2 mm
Height
80 mm
Depth
94 mm
Color
gray (RAL 7042)
Flammability rating according to UL 94
V0 (Housing)
Degree of protection
IP20
Ambient temperature (operation)
-25 °C ... 70 °C
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Certificate
CE-compliant
Certificate
UKCA-compliant
Identification
ISA-S71.04. G3 Harsh Group EN 60068-2-60
Certificate
TAE0000196
Temperature
D
Humidity
A
Vibration
B
EMC
B
Enclosure
Required protection according to the Rules shall be provided upon installation on board
Electromagnetic compatibility
Conformance with EMC directive
Low Voltage Directive
Conformance with Low Voltage Directive
Standards/regulations
IEC 60947-5-1
Standards/regulations
DIN EN 50155 (in relevant parts)
Standards/regulations
DNVGL-CG-0339
Mounting type
DIN rail mounting
Assembly note
in rows with zero spacing
Mounting position
any
