Product Model

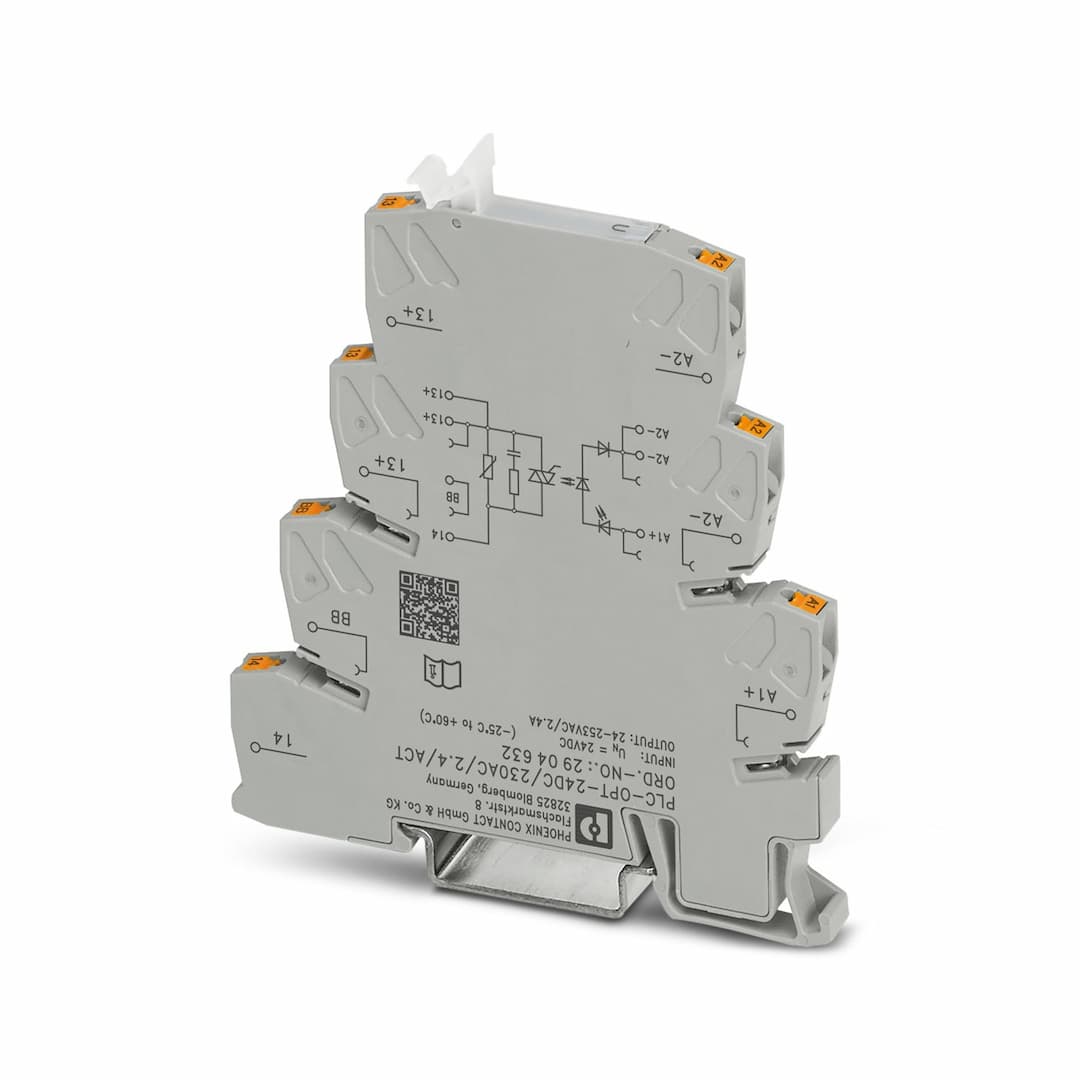

PLC-OPT- 24DC/230AC/2.4/ACT
Selling Points
- 1Designed with basic insulation and overvoltage category III for safe and reliable operation.
- 2Typical response time of 10 ms and turn-off time of 10 ms for quick switching.
- 3Input voltage range from 19.2 V DC to 28.8 V DC and output voltage range from 24 V AC to 253 V AC.
- 4Mountable on DIN rail NS 35/7,5 with a robust design for industrial settings.
- 5Equipped with reverse polarity protection, surge protection, and a yellow LED status display for easy monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state relay module | Product family | PLC-INTERFACE |
Application | Output function | Operating mode | 100% operating factor |
Date of last data management | 16.09.2024 | Article revision | 03 |
Insulation | Basic insulation | Overvoltage category | III |
Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.19 W |
Test voltage (Input/output) | 2.5 kV (50 Hz, 1 min., input/output) | Rated insulation voltage | 260 V AC |
Rated surge voltage | 4 kV | Rated actuating voltage U | 24 V DC |
Voltage range with reference to U | 0.8 ... 1.2 | Rated actuating current I | 8 mA |
Input voltage range | 19.2 V DC ... 28.8 V DC | "0" signal switching threshold in reference to U | < 0.4 |
"1" signal switching threshold in reference to U | > 0.8 | Typical response time | 10 ms (at U |
Typical turn-off time | 10 ms (at U | Status display | LED (yellow) |
Protective circuit | Reverse polarity protection
Surge protection | Surge voltage protection | > 33 V |
Transmission frequency | 10 Hz | Designation | Output data |
Contact switching type | 1 N/O contact | Design of digital output | electronic |
Contact connection type | Power contact | Output voltage range | 24 V AC ... 253 V AC |
Limiting continuous current | 2.4 A (see to derating) | Maximum inrush current | 250 A (20 ms) |
Min. load current | 10 mA | Leakage current | < 3 mA |
Max. load value | 340 A | Surge voltage protection | > 275 V |
Voltage drop at max. limiting continuous current | < 1 V | Output circuit | 2-conductor, zero voltage switch |
Protective circuit | RCV circuit | Connection method | Push-in connection |
Stripping length | 10 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
Width | 6.2 mm | Height | 80 mm |
Depth | 94 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V0 (Housing) | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Standards/regulations | IEC 60947-5-1 |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
